Image	P/N	DESCRIPTION	APPLICATIONS

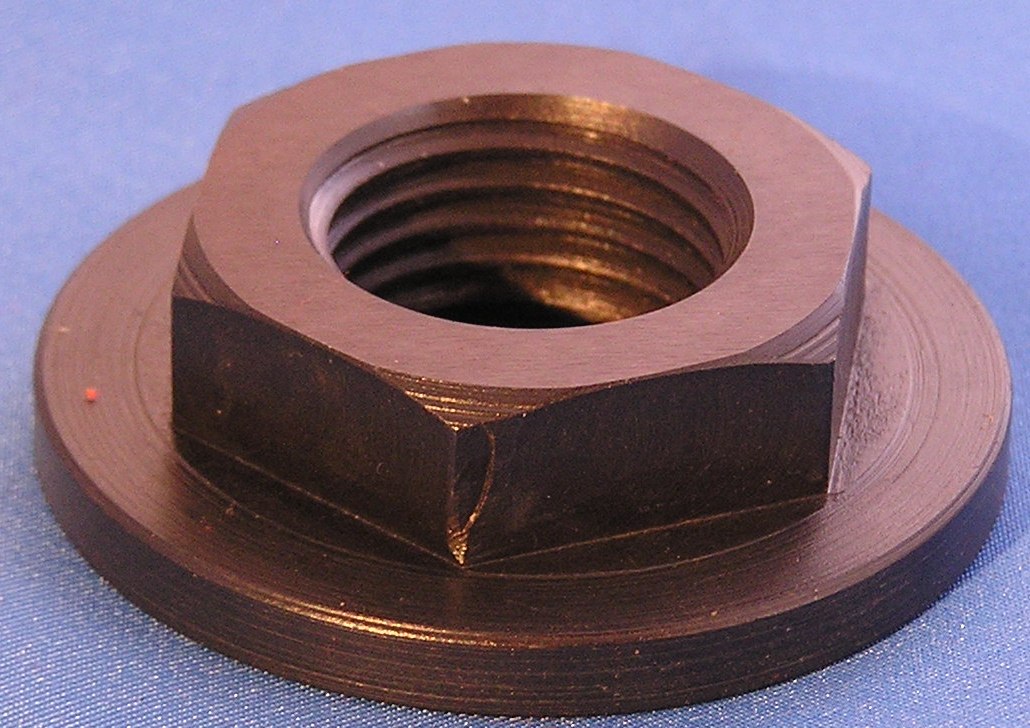

	29	Nut, 1" -10 Thread, 2-1/4" Dia Flange	7 & 7A

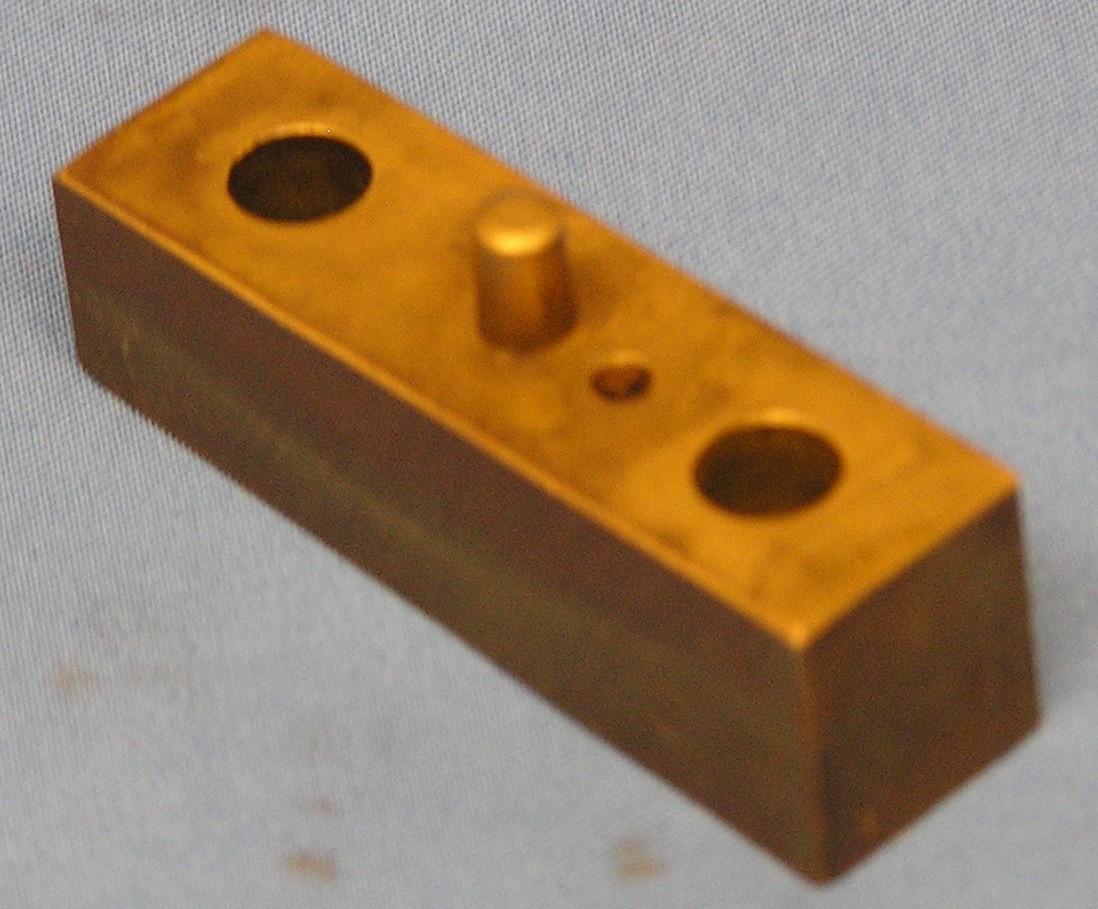

	31	Block, Steel Quill 3-1/2°	7 & 7A

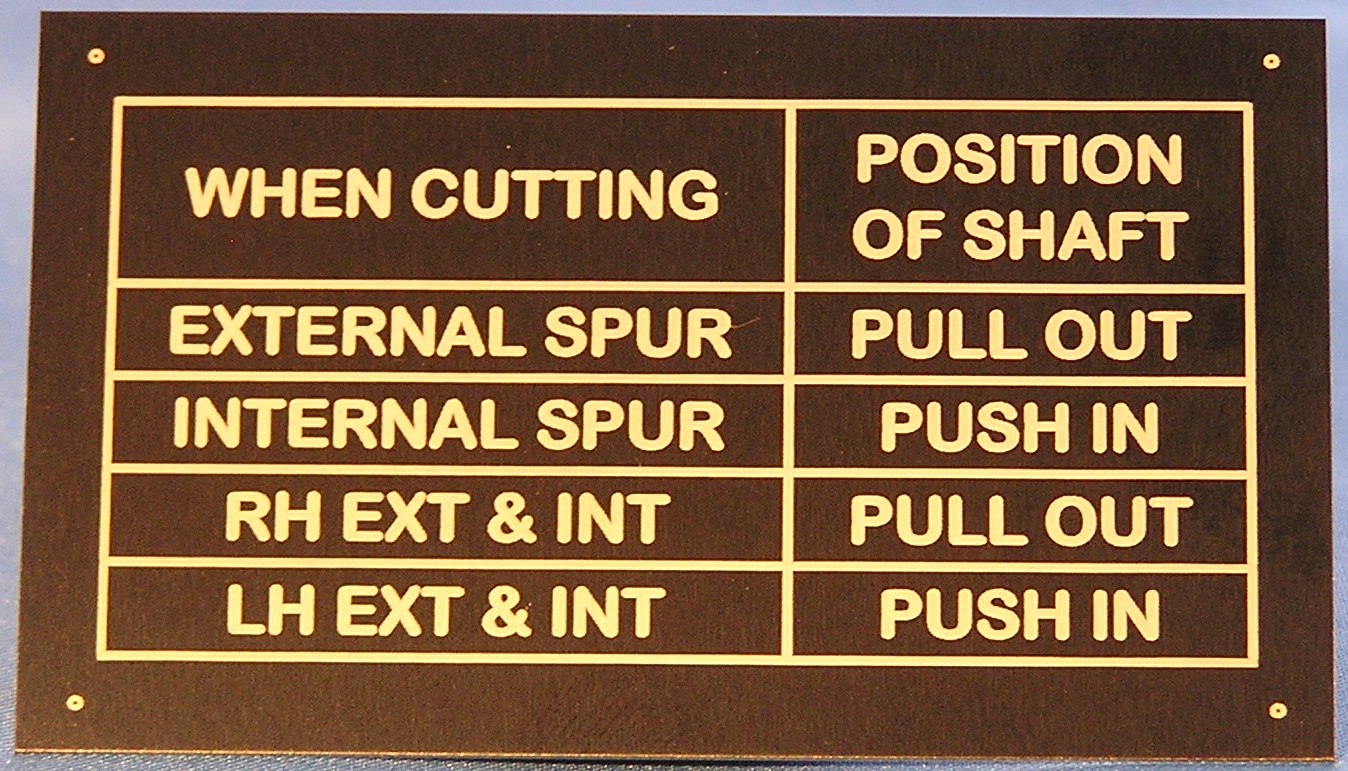

	69	Tag, Work Spindle Rotation	7
	78	Collar, D-Shaft	7 & 7A

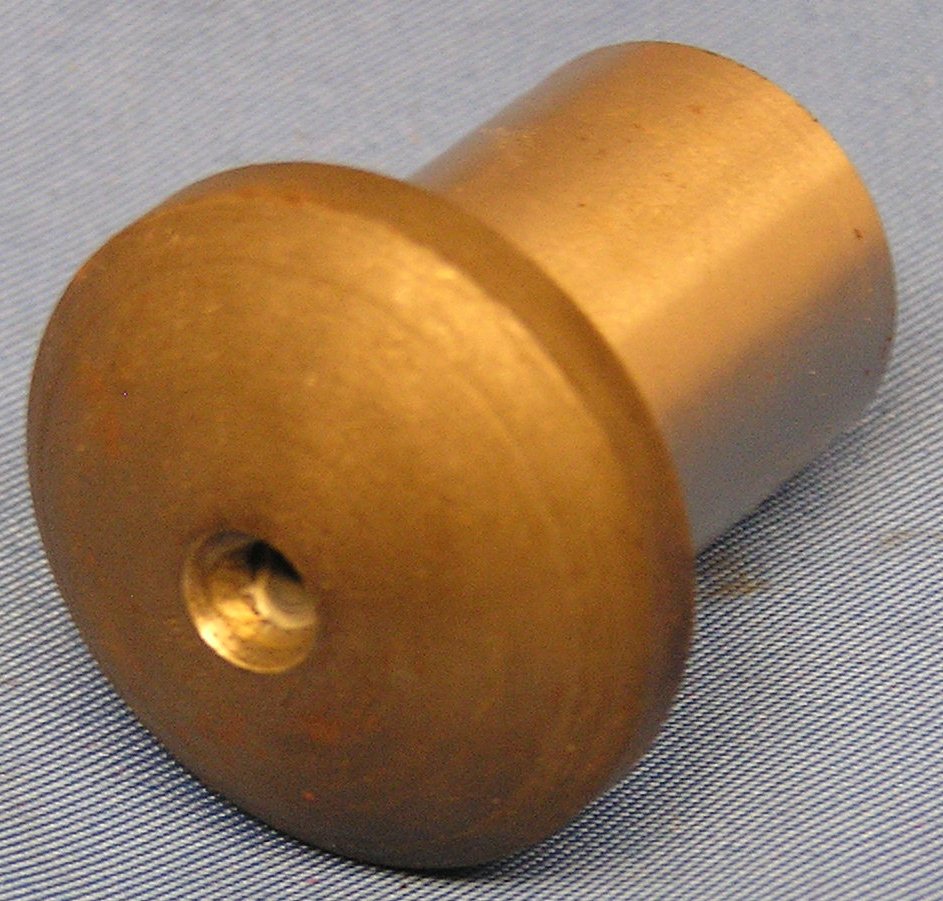

	86	Pivot, Spherical	6A, 7, 7A

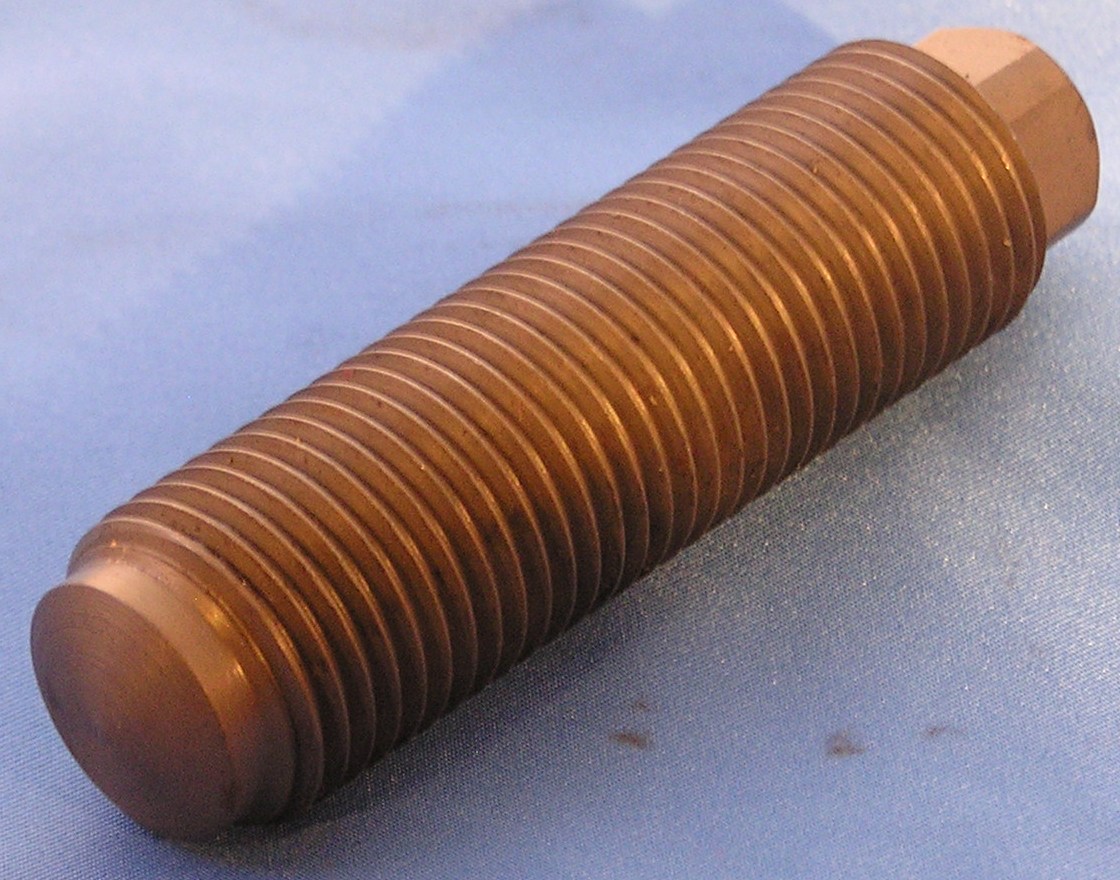

	87	Screw, Relieving Adjustment	6A, 7, 7A

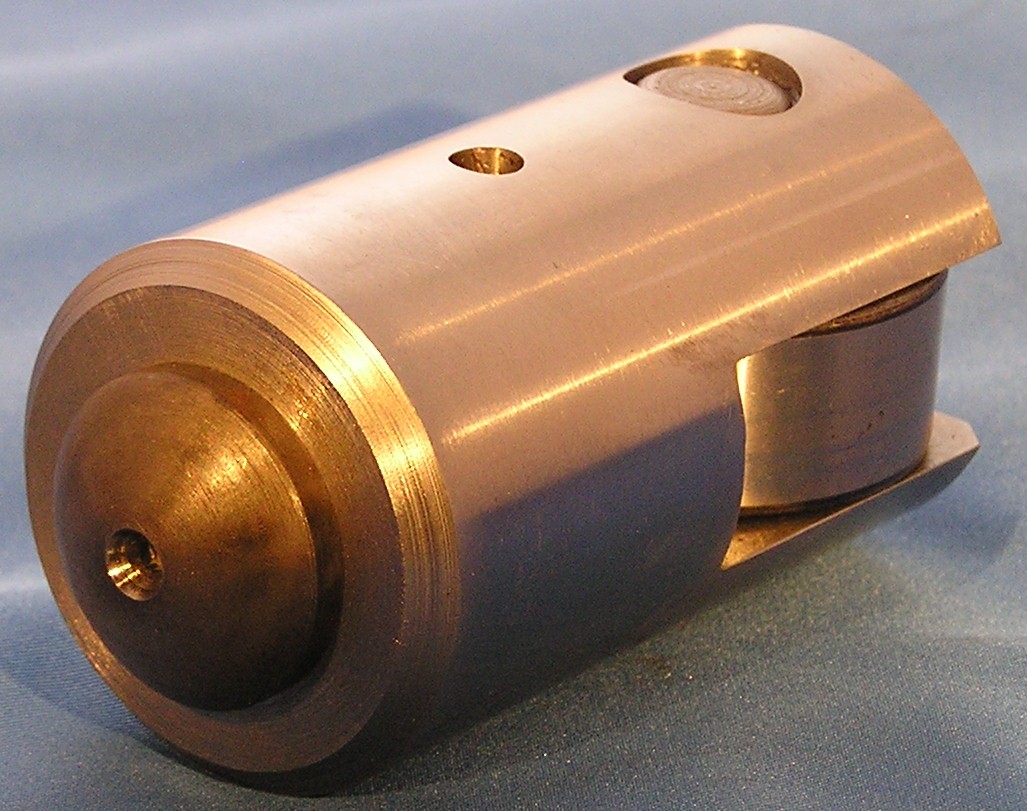

	88	Follower, Relieving Cam Roller Assembly	6A, 7, 7A
	91	Ball, 1-inch, early production	6A, 7, & 7A

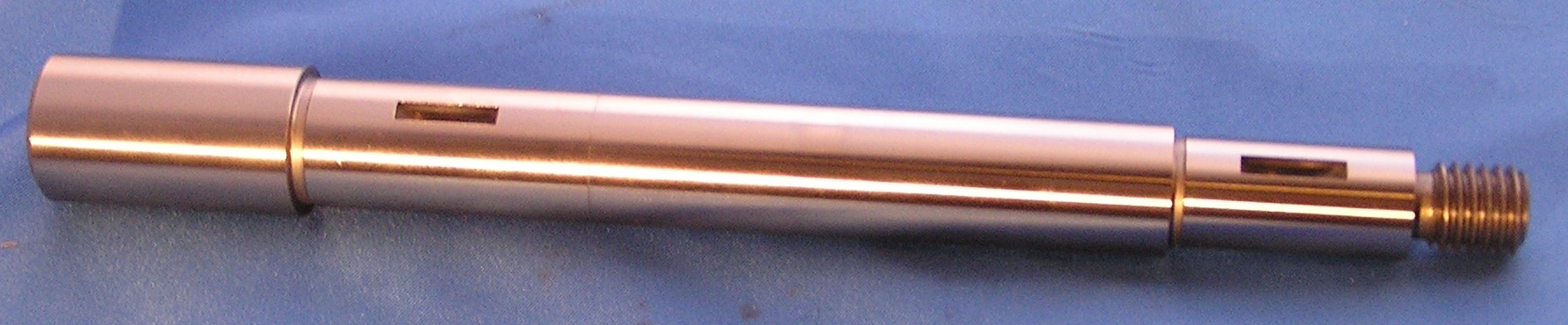

	123	Shaft, Coolant Pump Drive	6A, 7, 7A

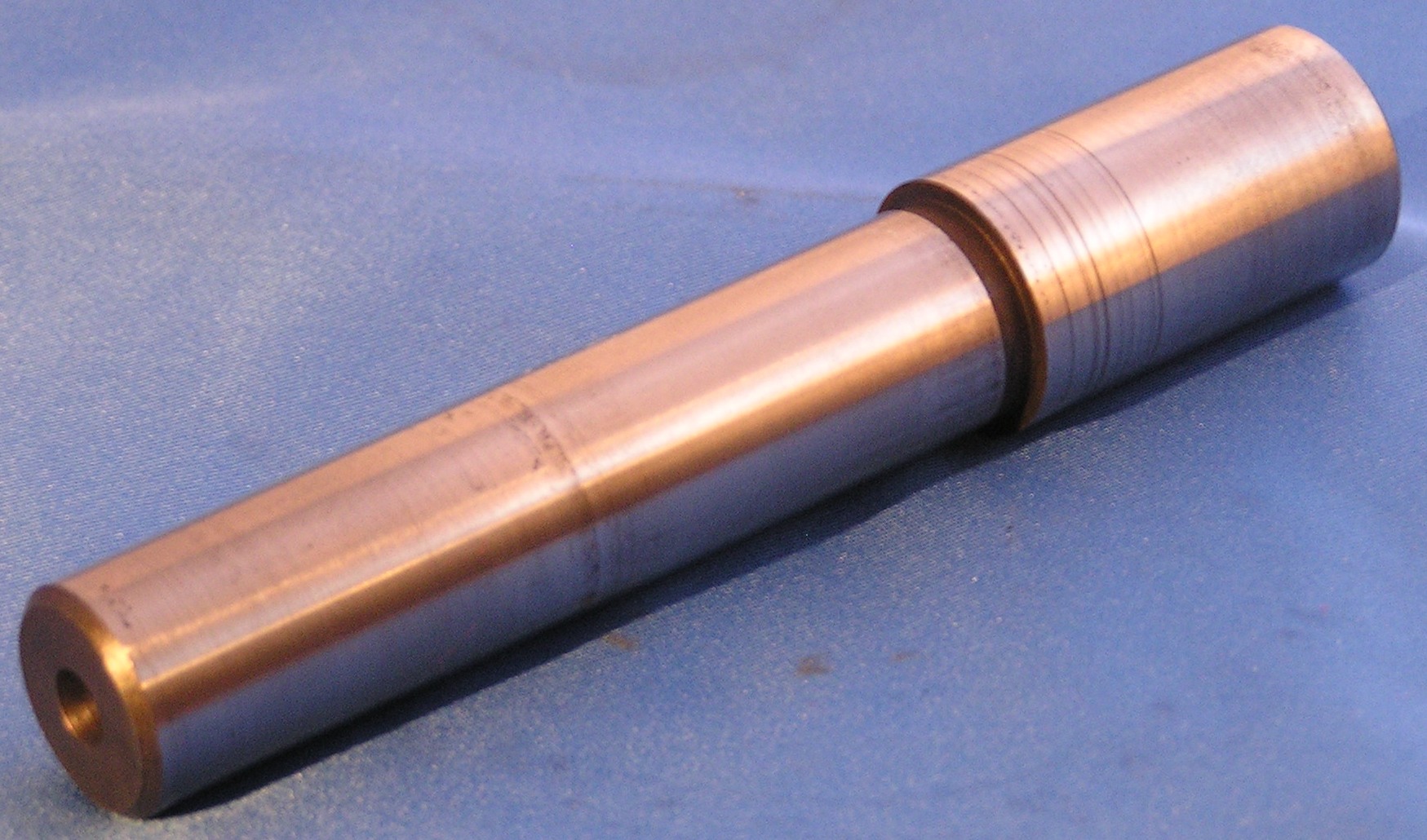

	124	Shaft, Coolant Pump Driven	6A, 7, 7A

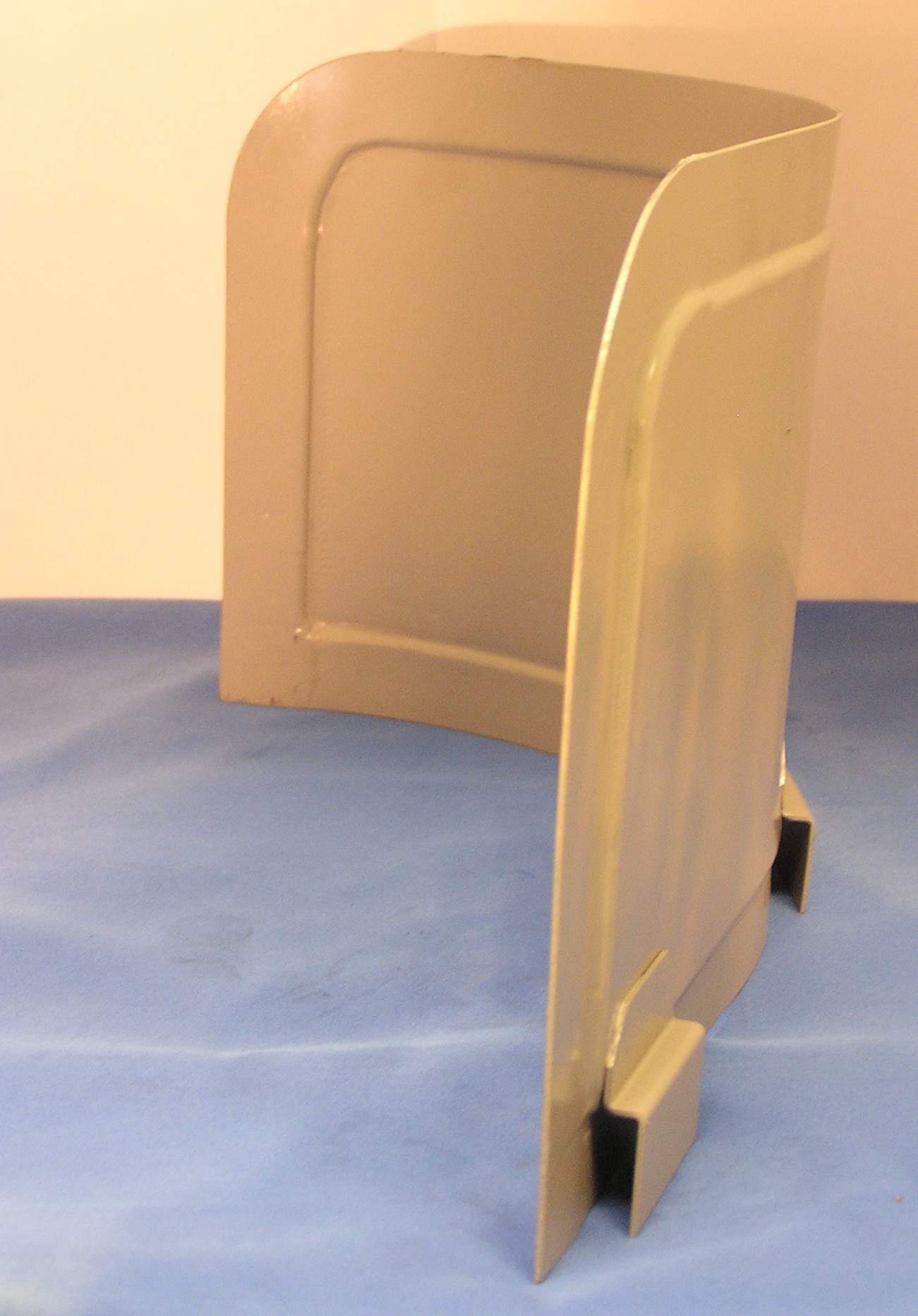

	129	Sheild, Splash	7 & 7A

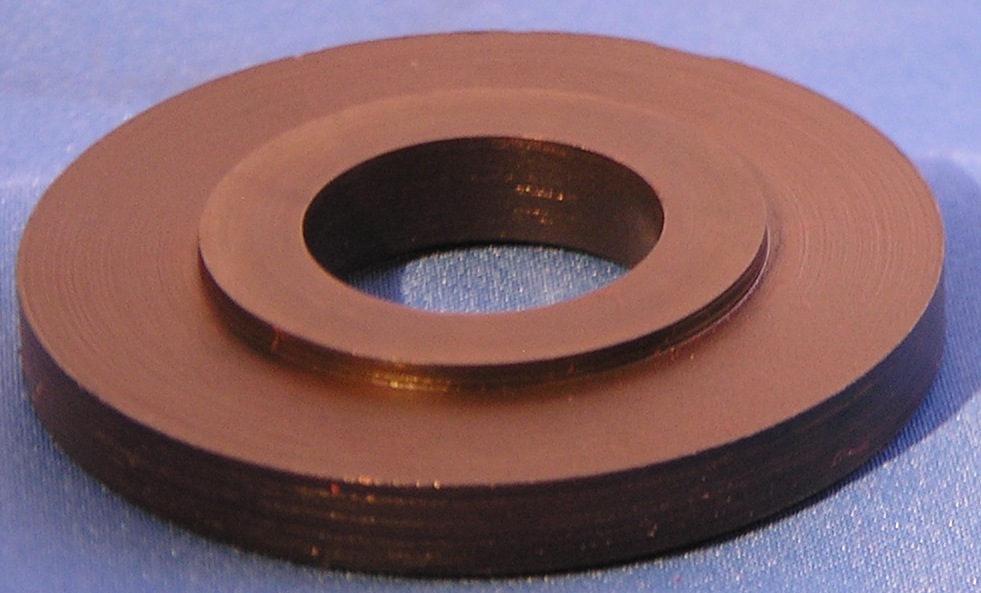

	185	Washer, Crank Pin	7

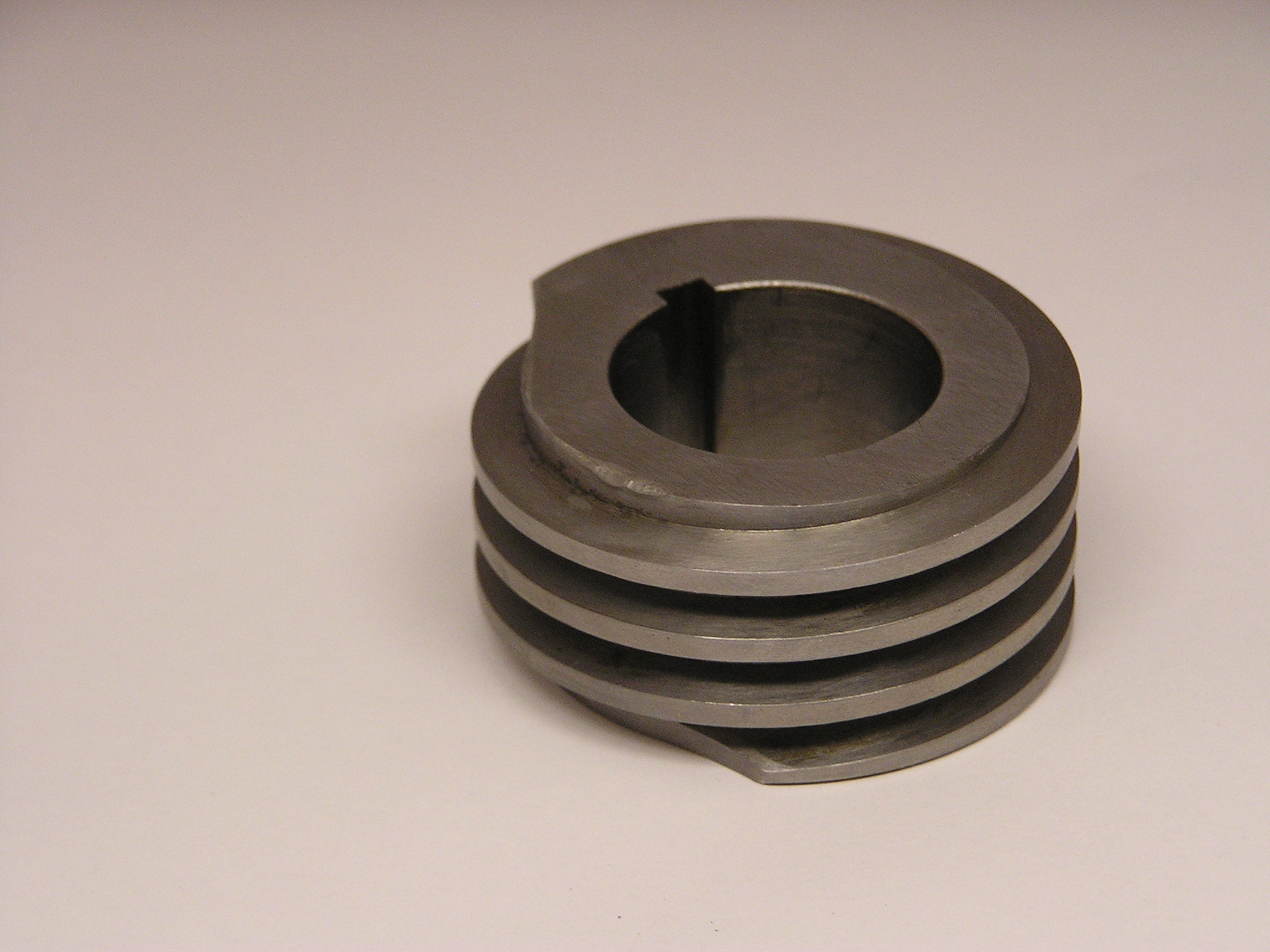

	203	Worm, Cam Drive	7 & 7A

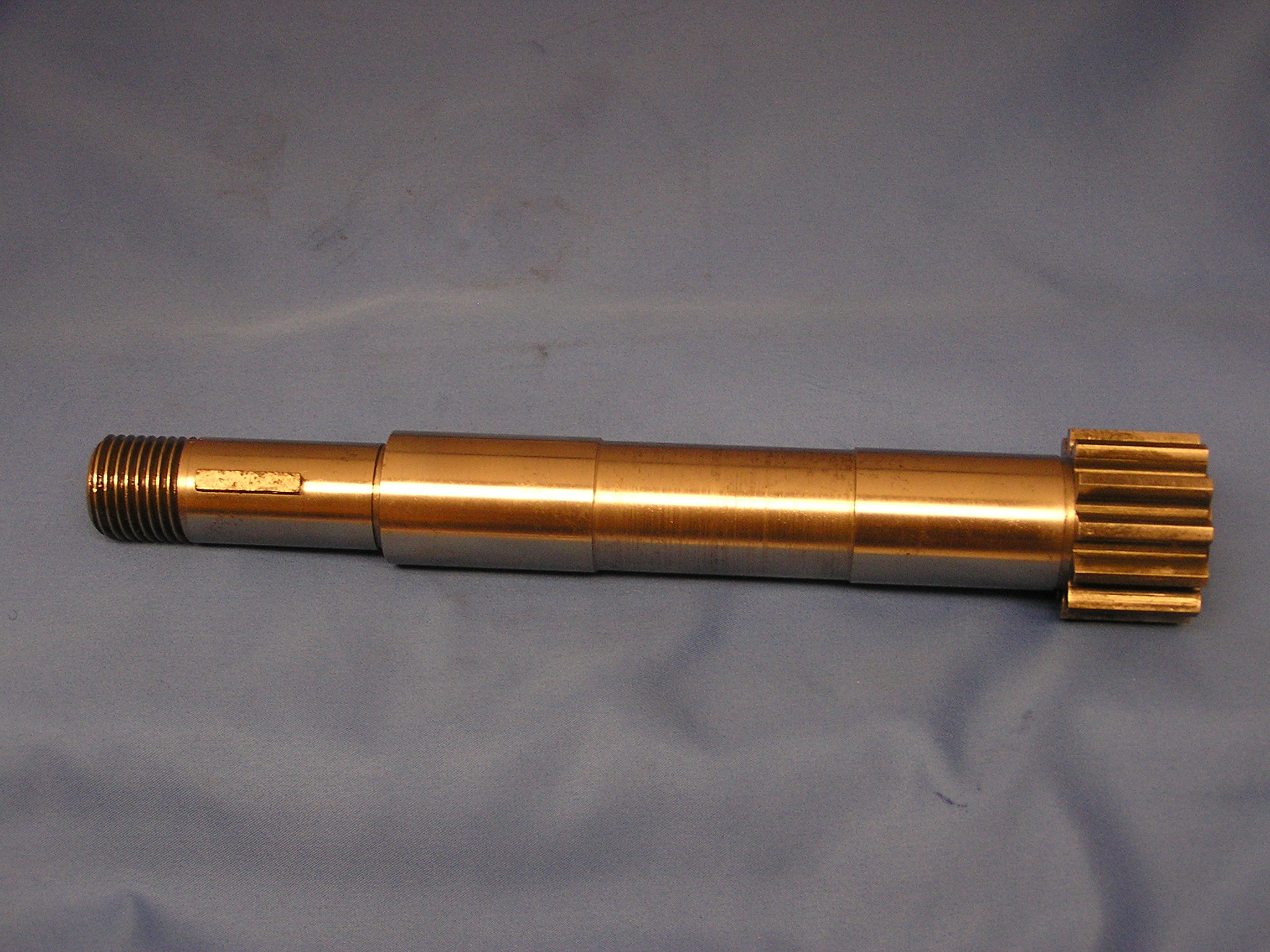

	221	Shaft, Depth Feed Pinion	7 & 7A
	224	Stud, Adjustment Clamp	7 & 7A

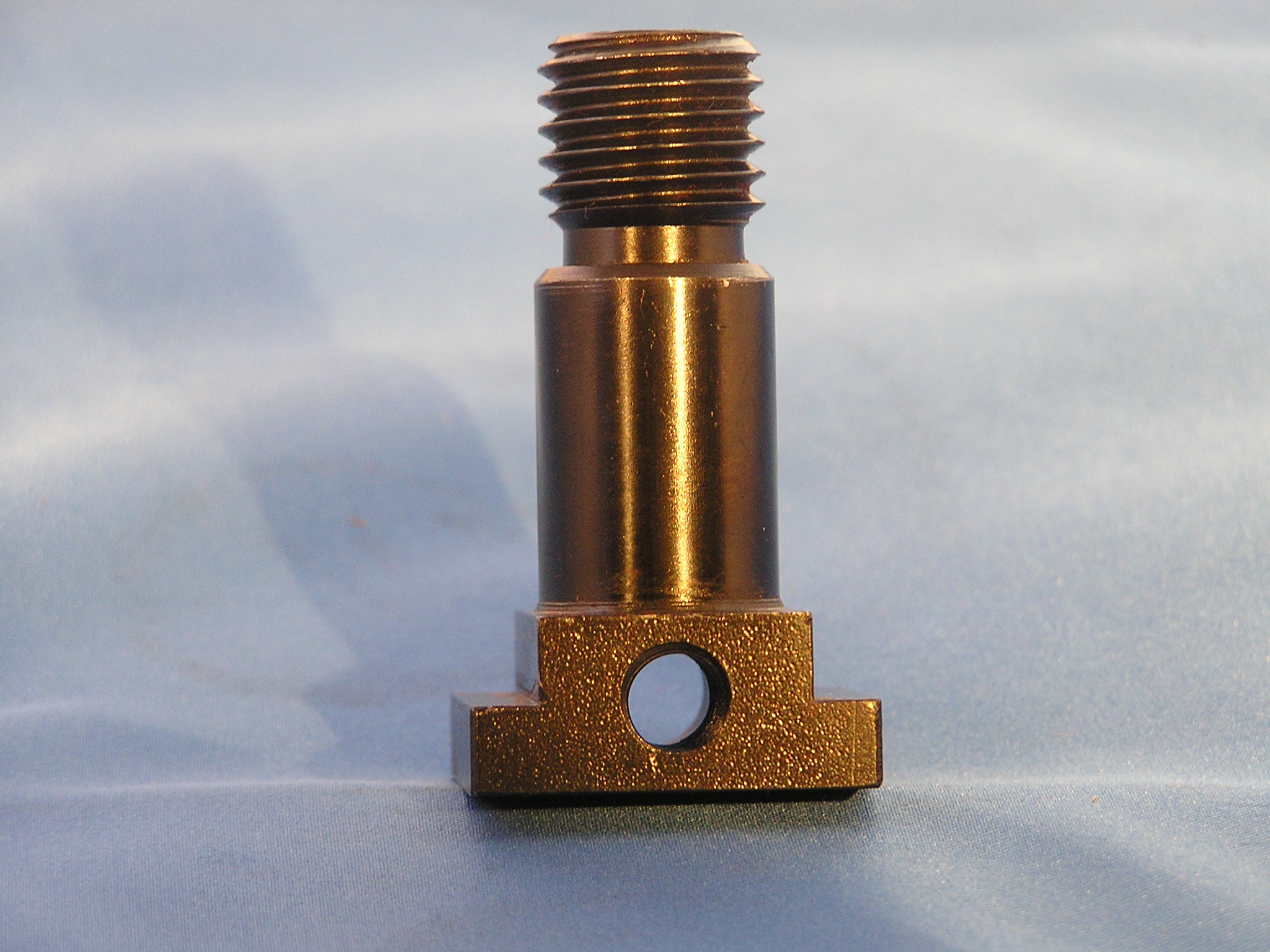

	251	Pin, Crank	7

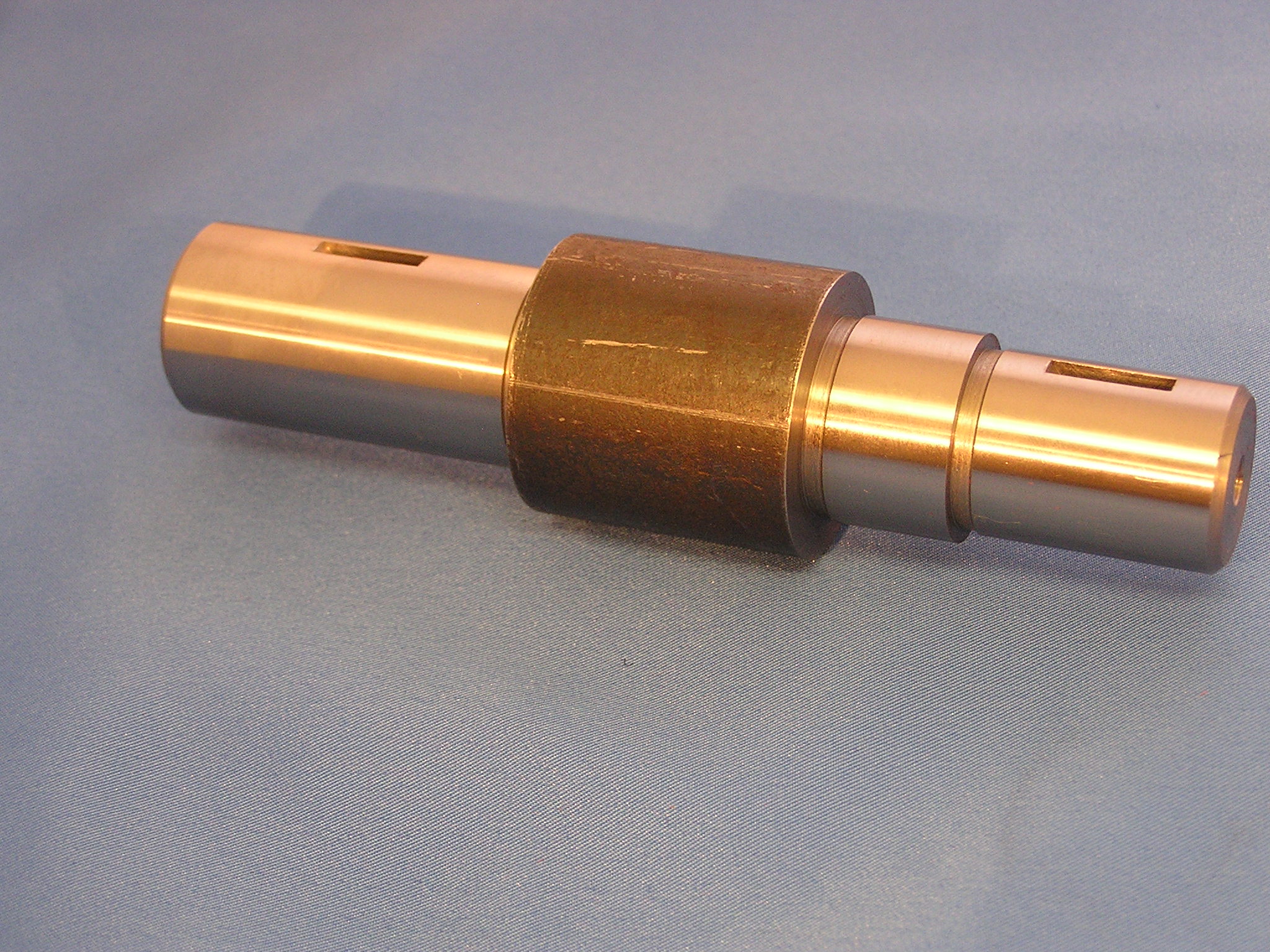

	294	Shaft, Lower Vertical Feed	7

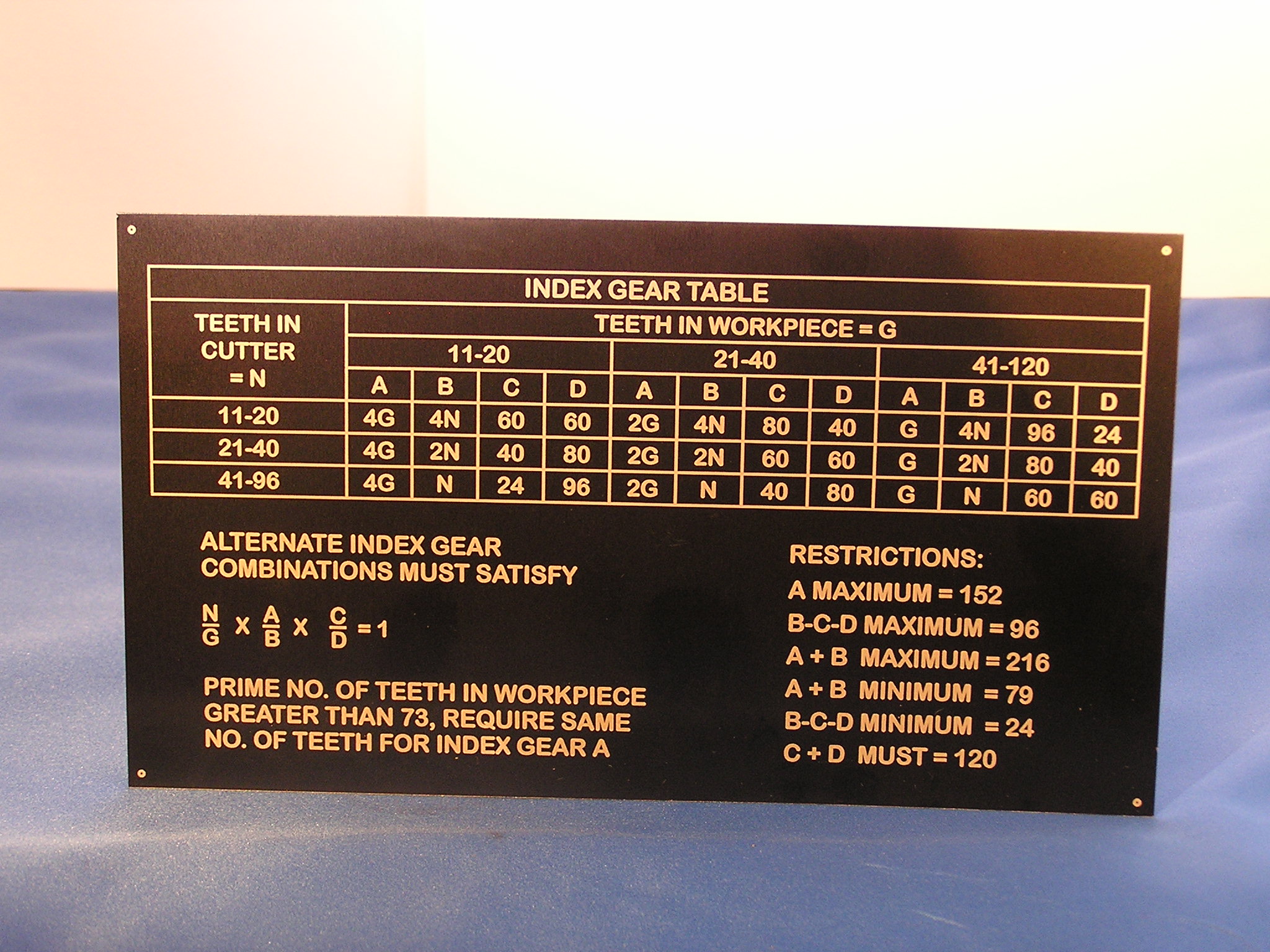

	310	Tag, Index Gears	7 & 7A

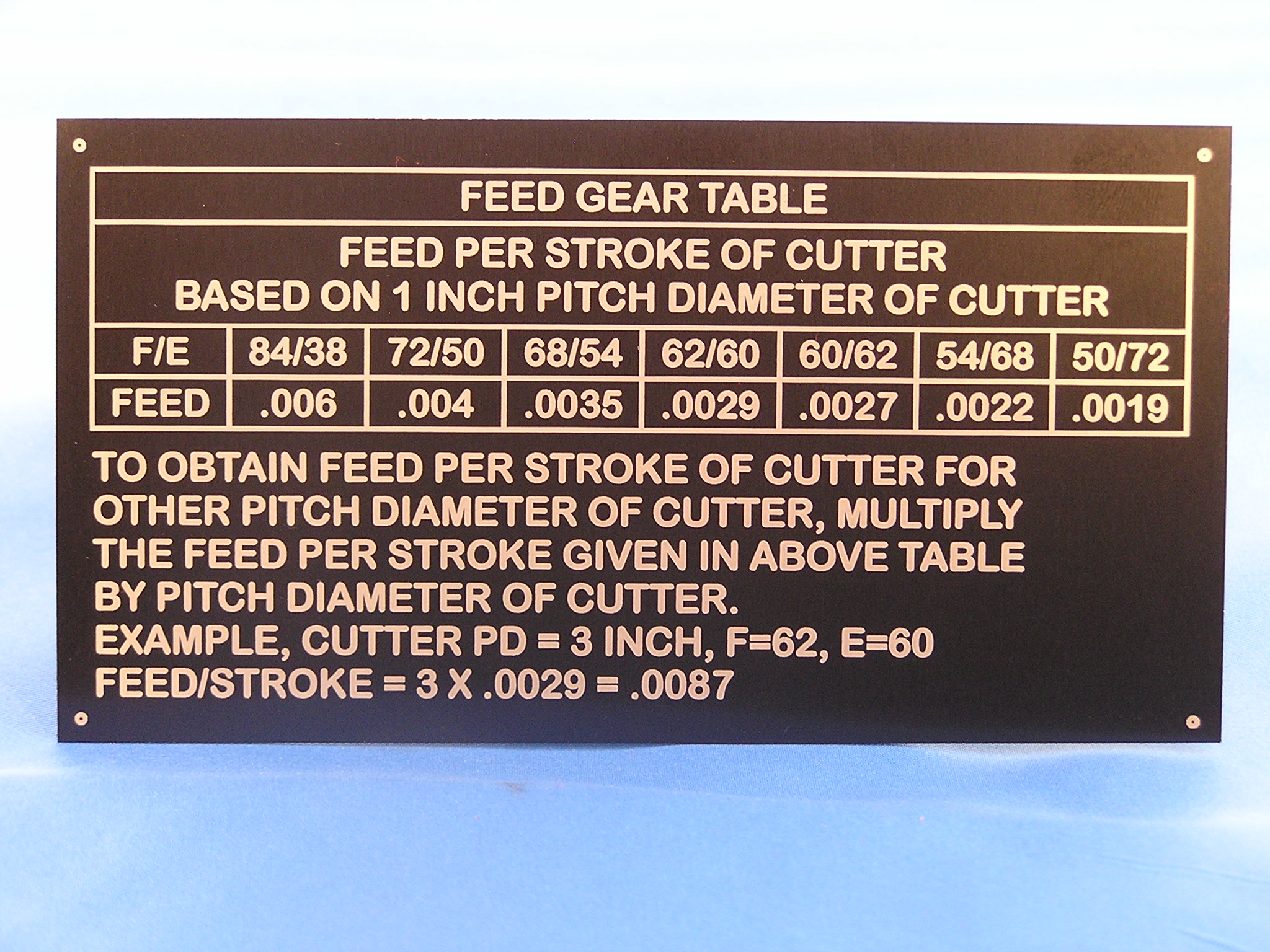

	311	Tag, Feed Gears	7 & 7A

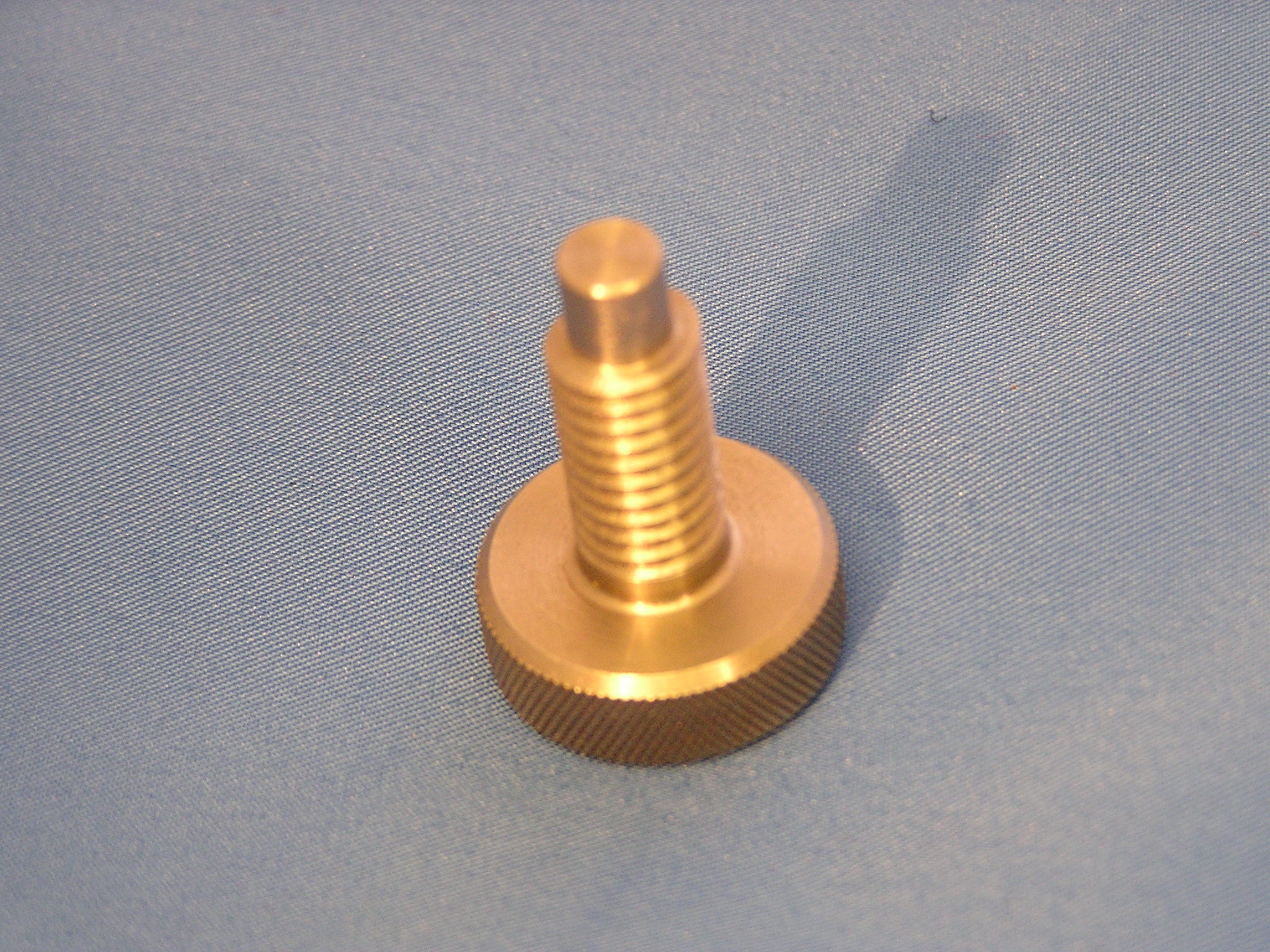

	315	Screw, Thumb	7 & 7A

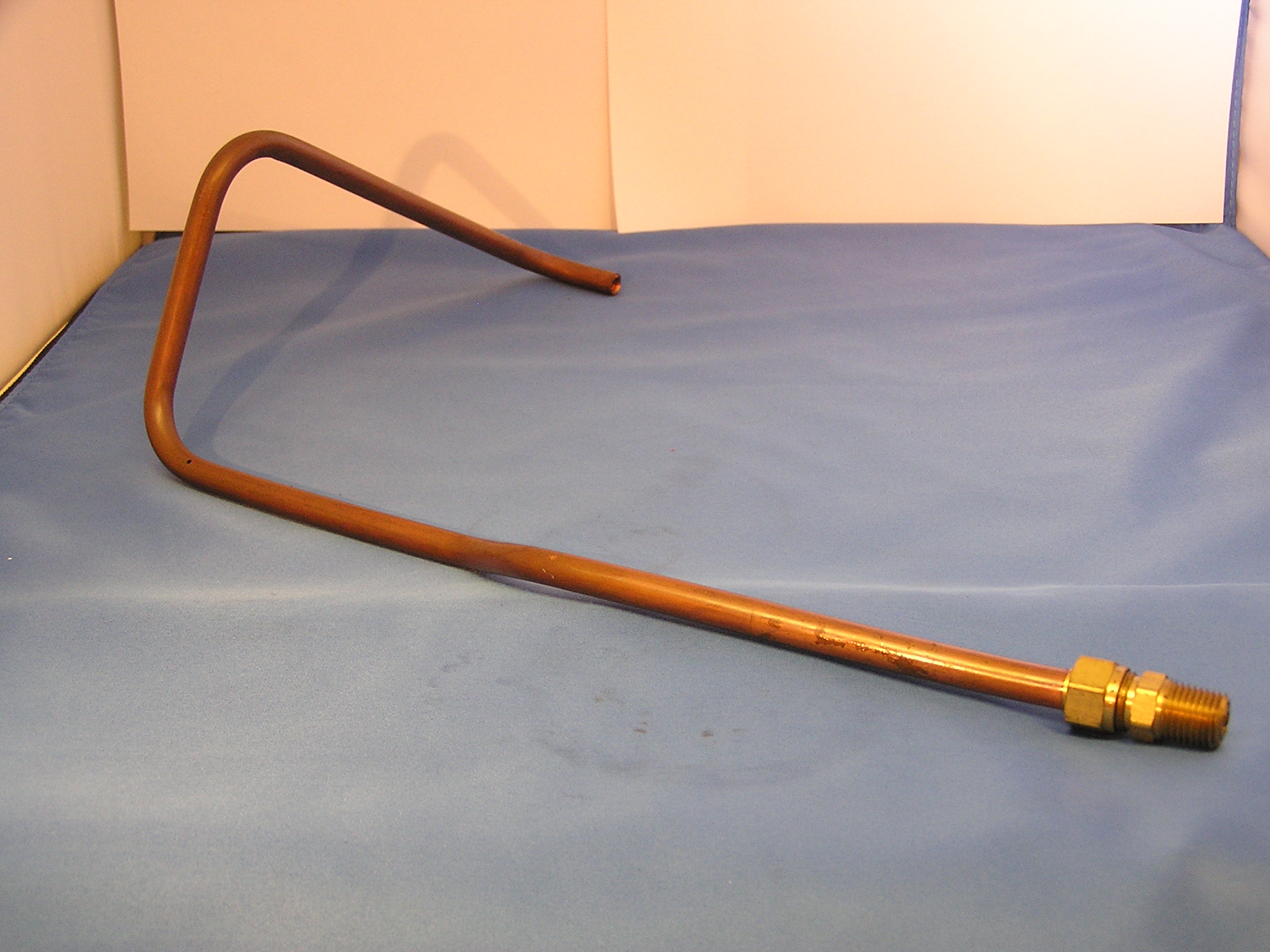

	329	Tube, Oil Spray With Check Valve	7 & 7A

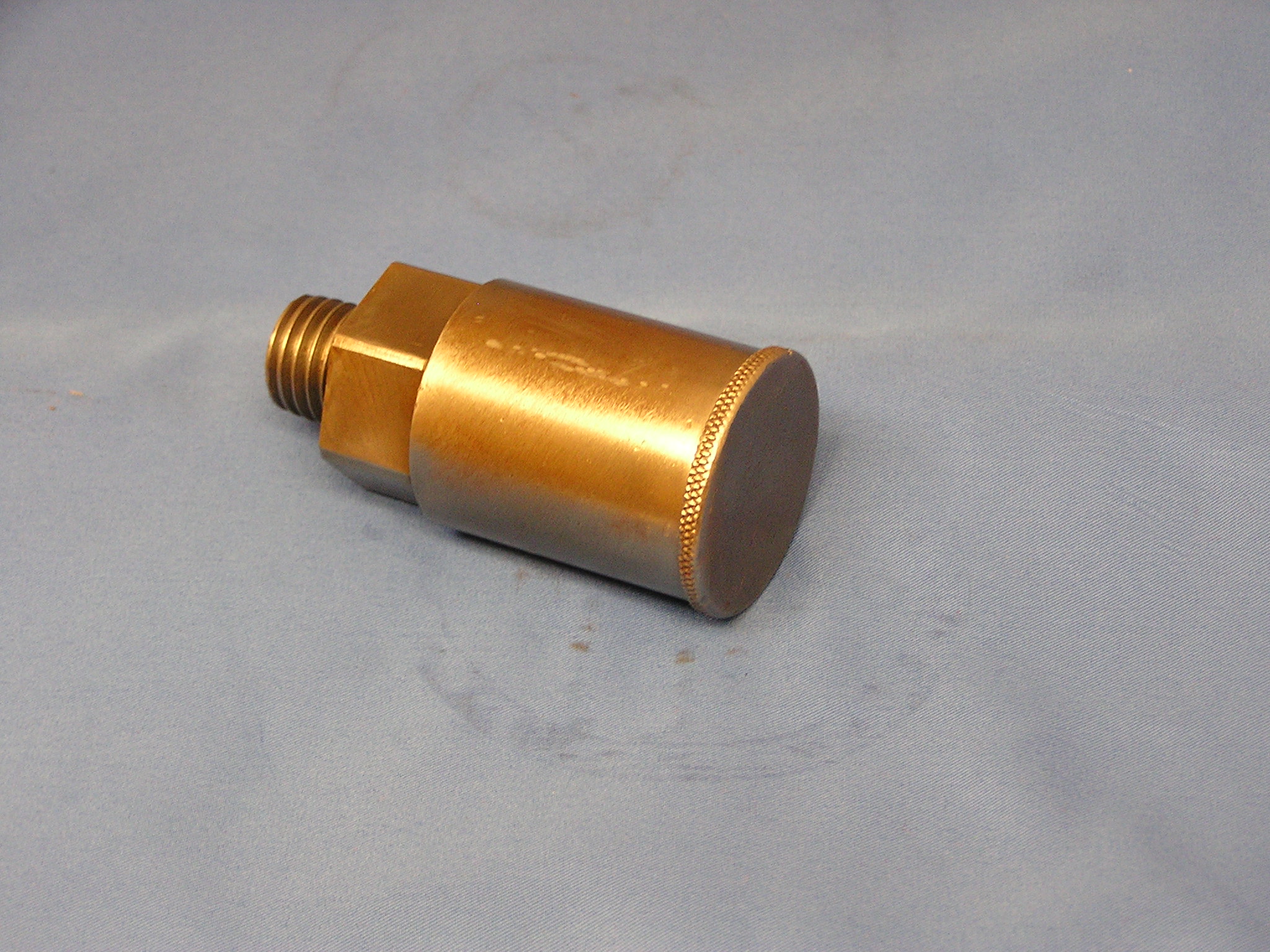

	365	Cup, Oil	7 & 7A
	399	Gear, Sliding Cluster	7 & 7A

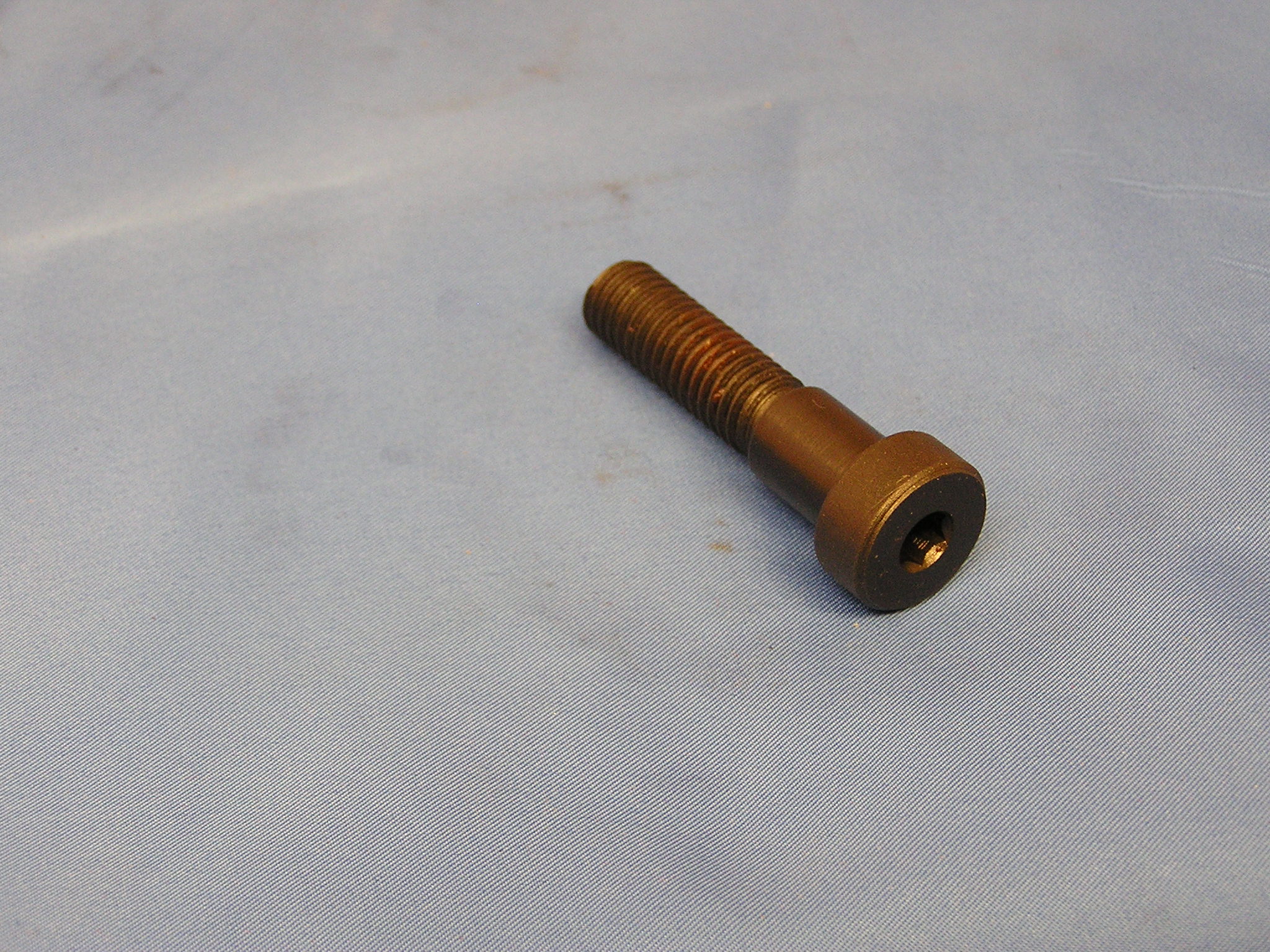

	402	Screw, Shoulder 7/16" thread	7 & 7A
	404E	Screw, Shoulder 1/2" thread	61A
	404	Screw, 5/8" thread	645A & 36
	412	Screw, Shoulder, 1/2" dia X 3/4" lg, 7/16 thread	6A

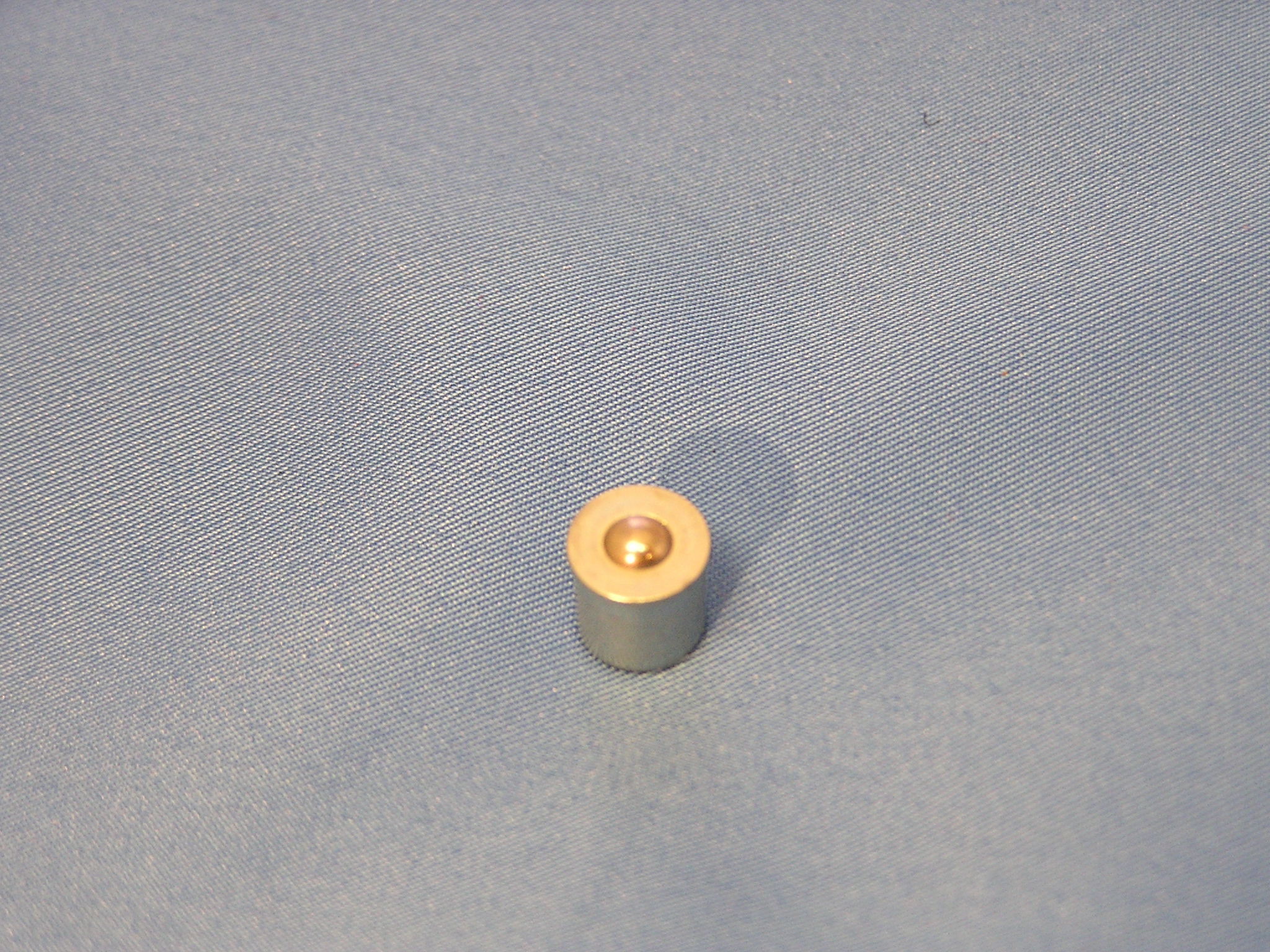

	423	Fitting, Oil	7 & 7A

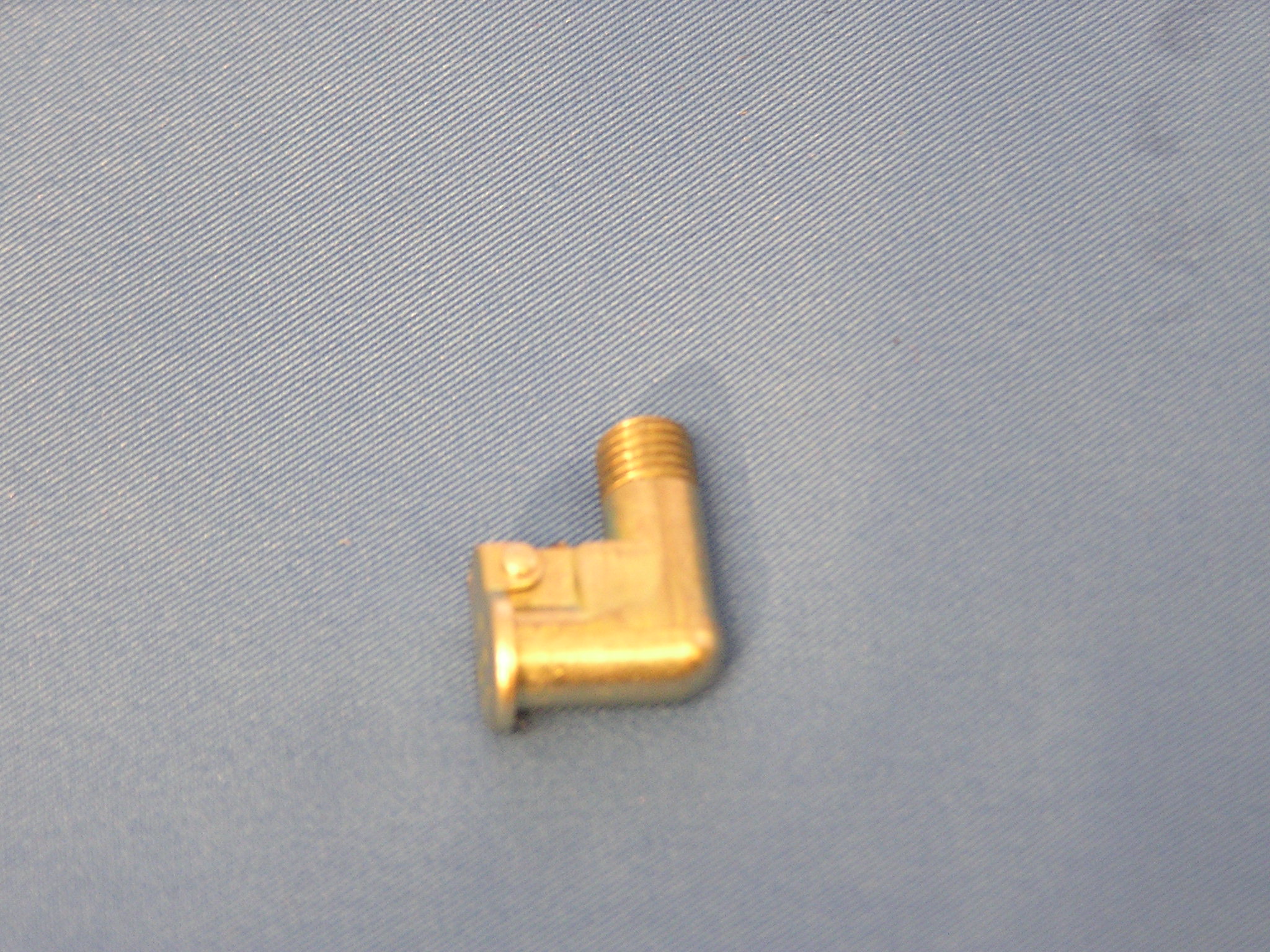

	425	Fitting, Oil	7 & 7A

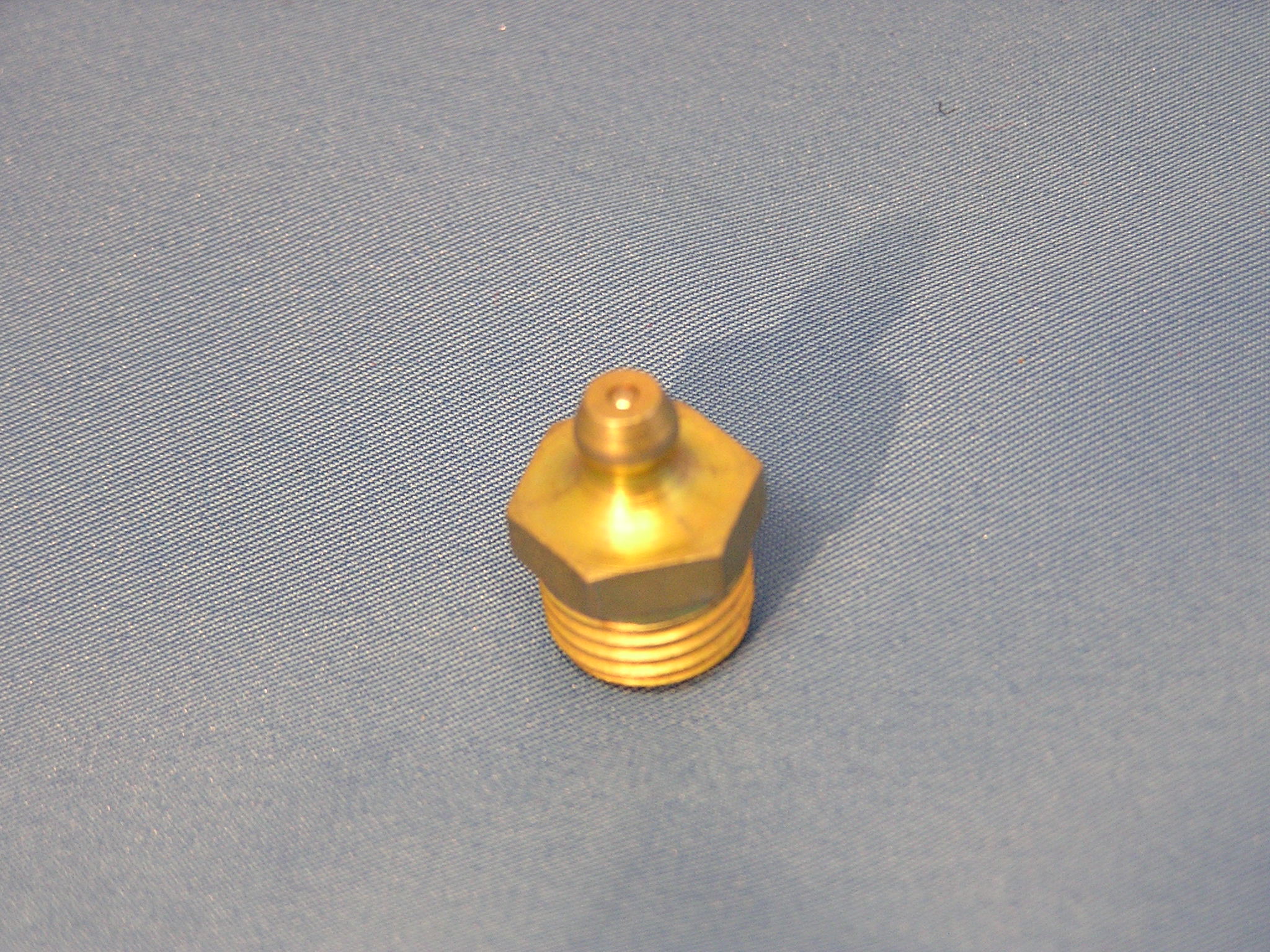

	430	Fitting, Grease replaces grease cup	7 & 7A

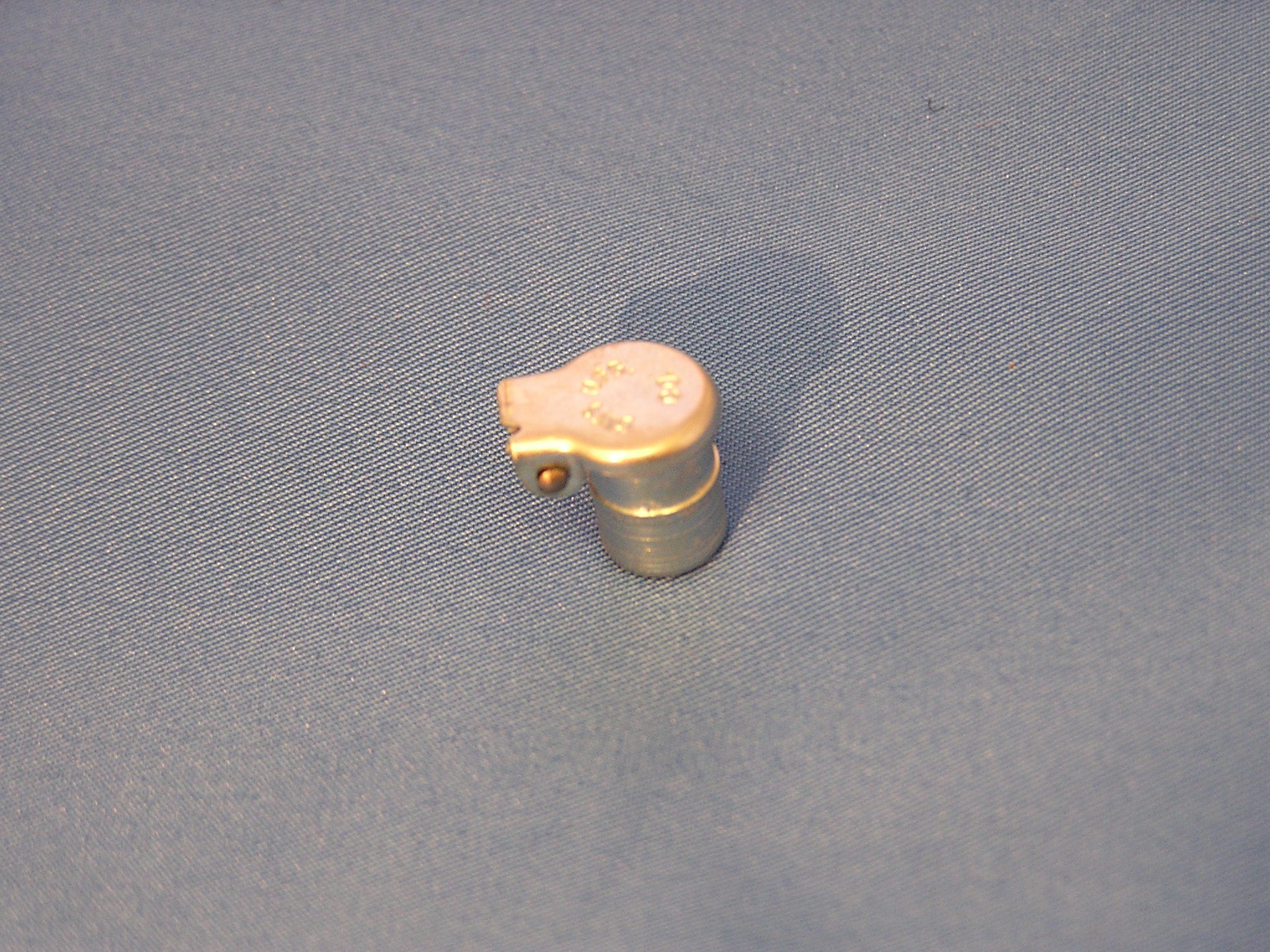

	436	Fitting, Oil	7 & 7A

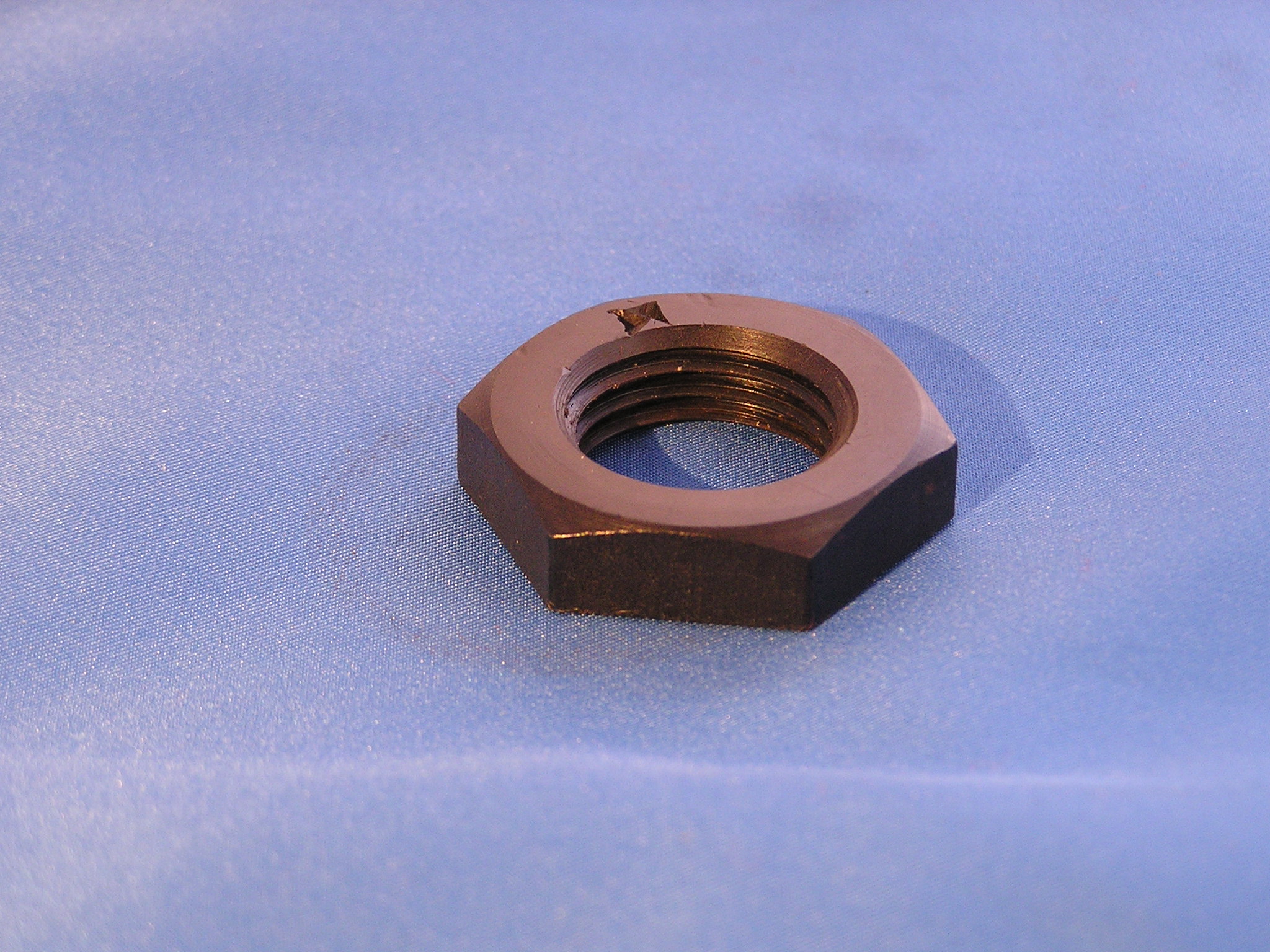

	464	Nut, Hex 1"-10 Thread	various
	475	Nut, 1" -10 Thread, 1-15/16" Dia Flange	various

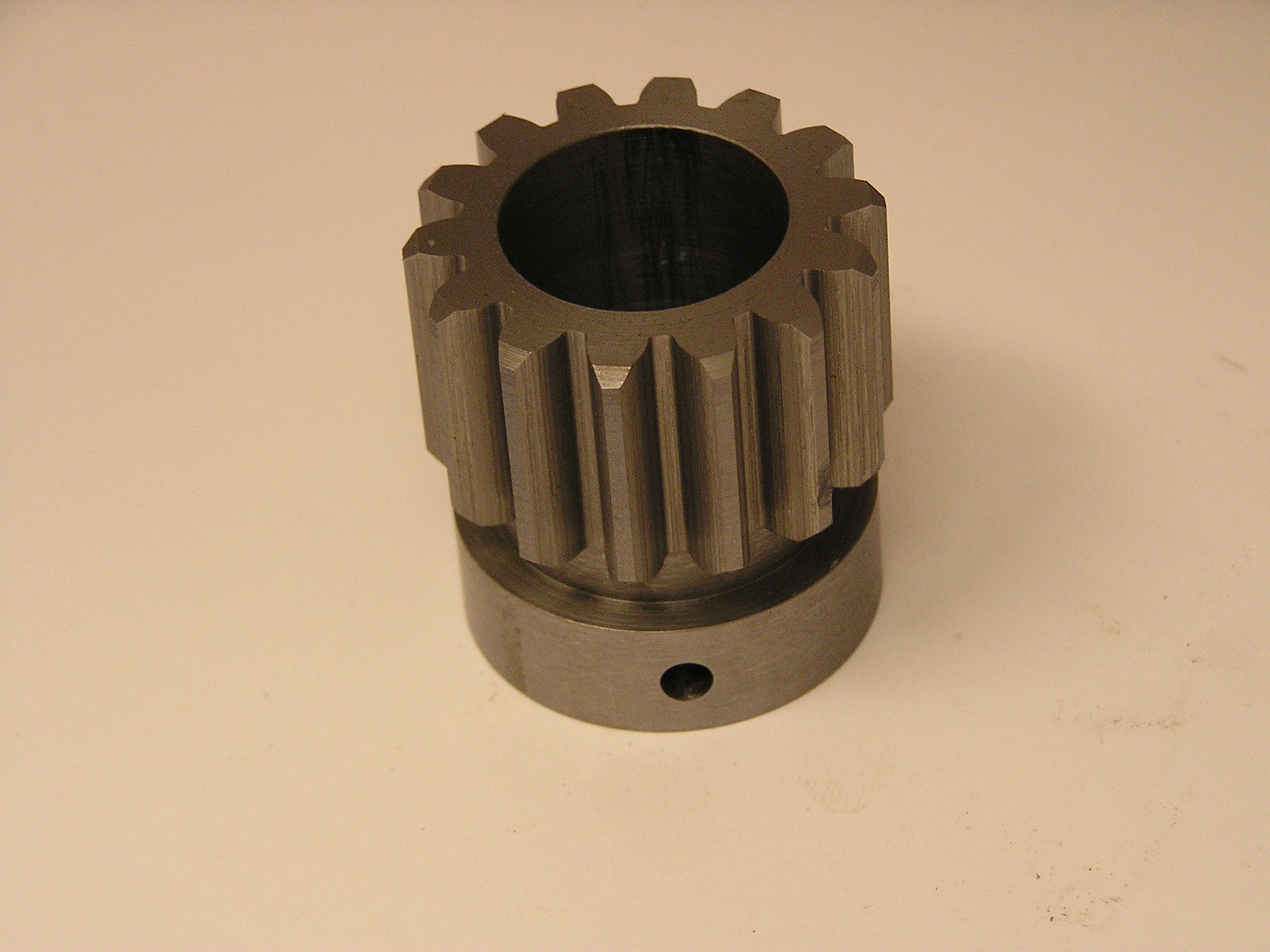

	502	Pinion, 14-tooth Infeed	6A
	509	Washer, Spherical	6A & 36
	533	Stud, Cover Support	6A
	607	Pin, Detent drill at assy	6A

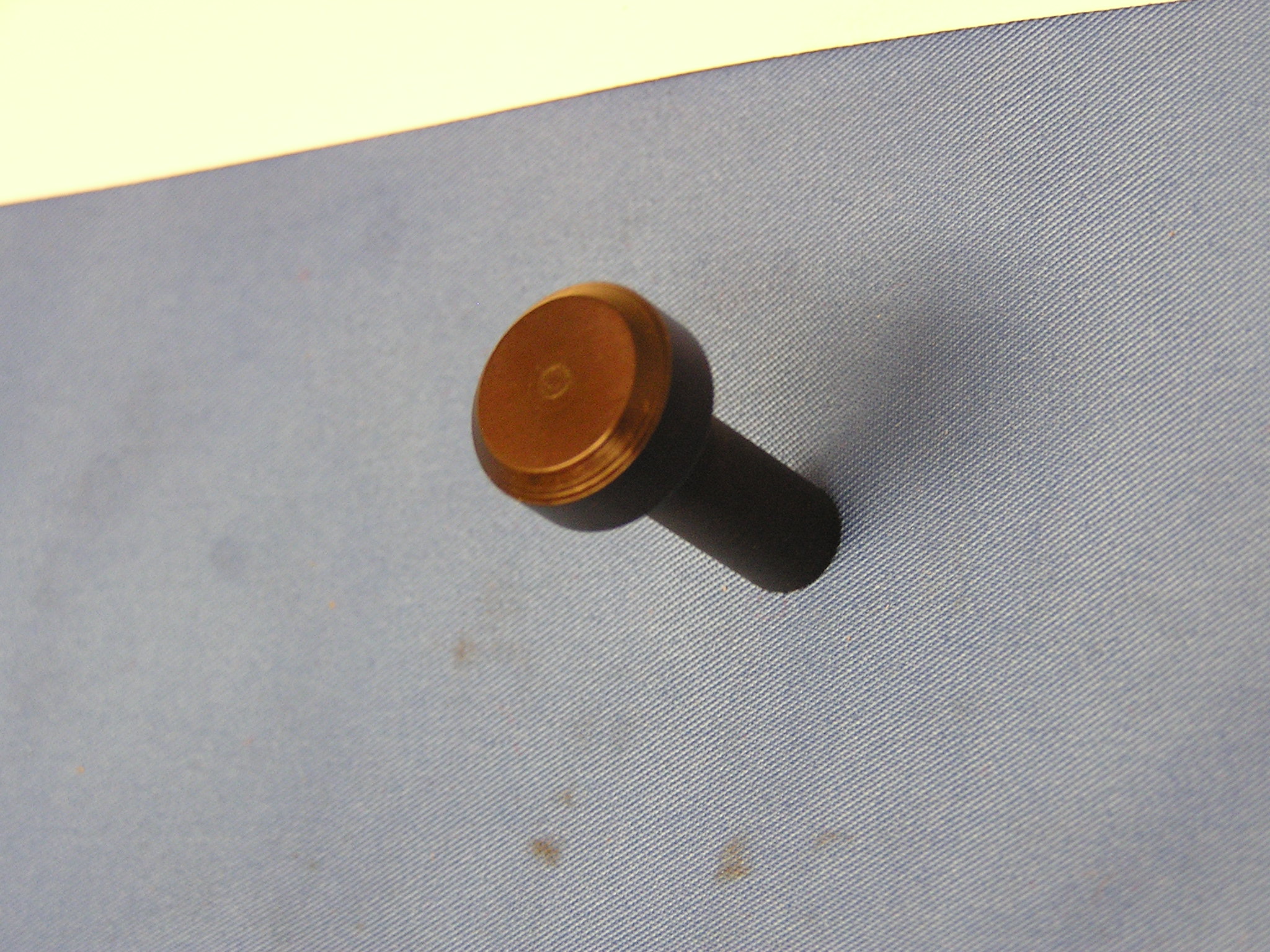

	610	Plunger, Mushroom	6A

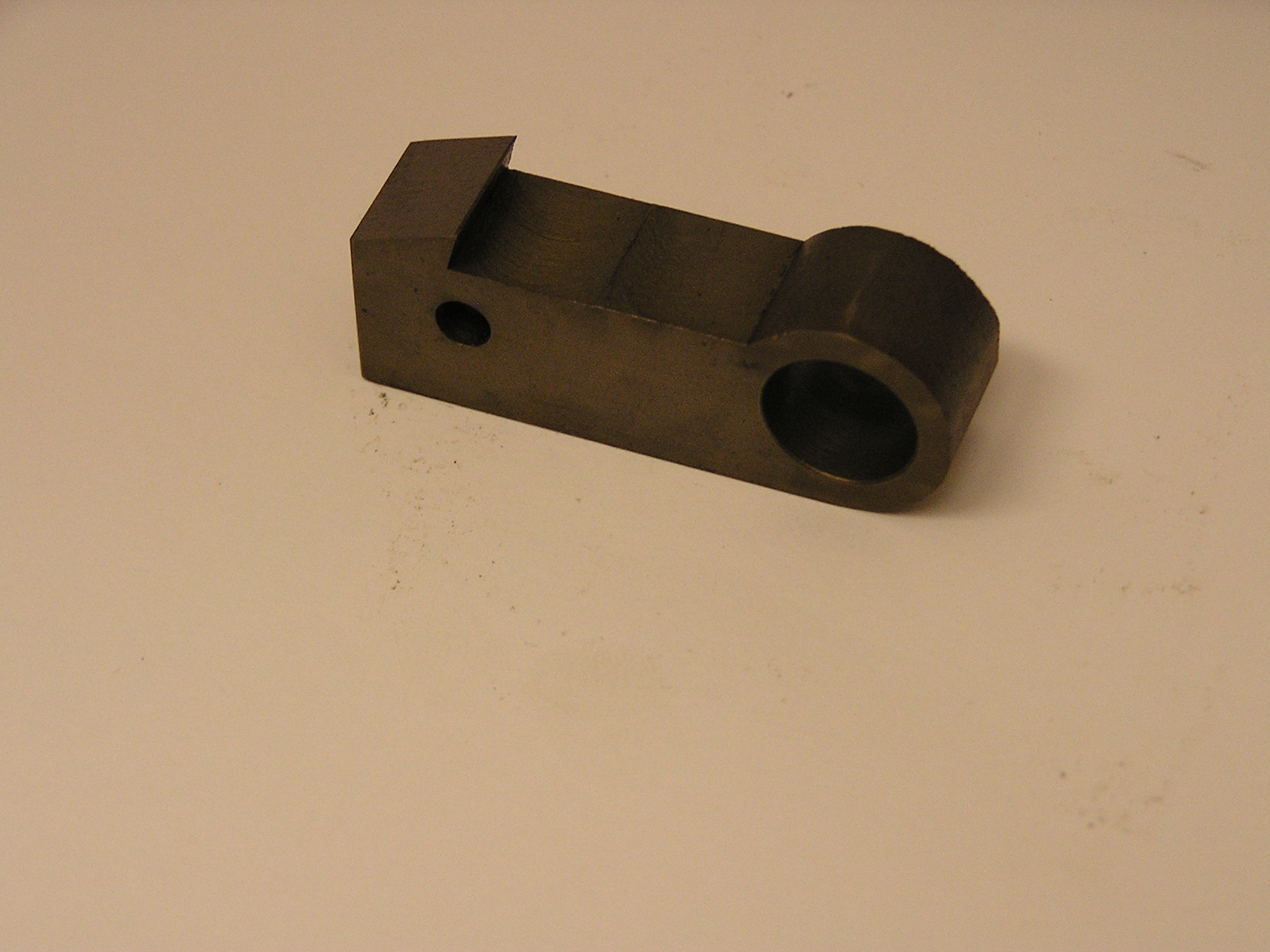

	630	Pawl, Infeed & Timing includes pin	6A
	660	Strap, Apron Guide 7-3/8" length	615A
	716	Nut, Spanner	6A
	717	Ratchet, 65-Tooth Timing	6A
	754	Pin, Clamp	6A

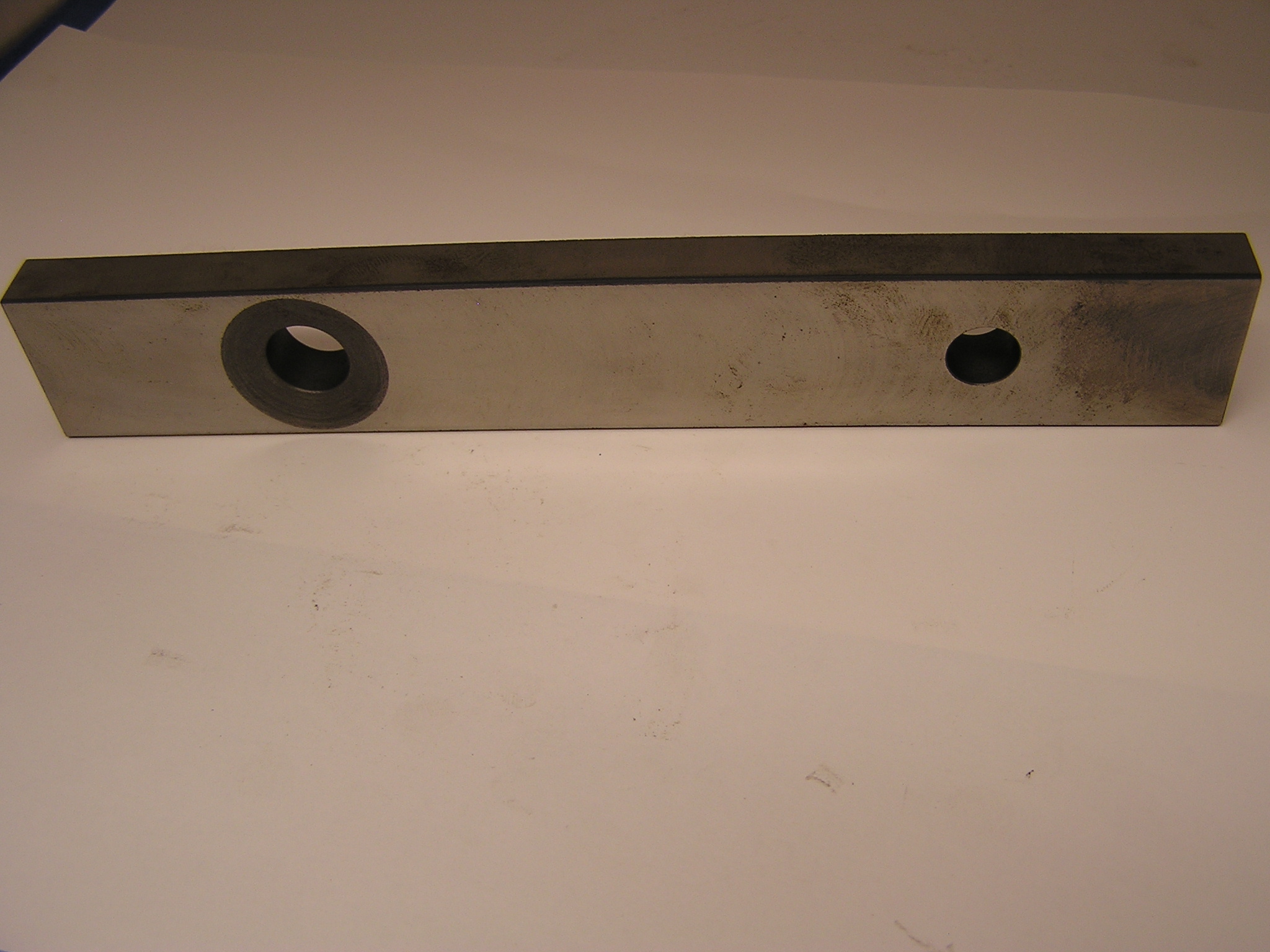

	783	Strap, Apron Guide 9-3/4" length	645A
	803	Bearing, Cutter Spindle Thrust	645A
	880	Pin, Crank	6A

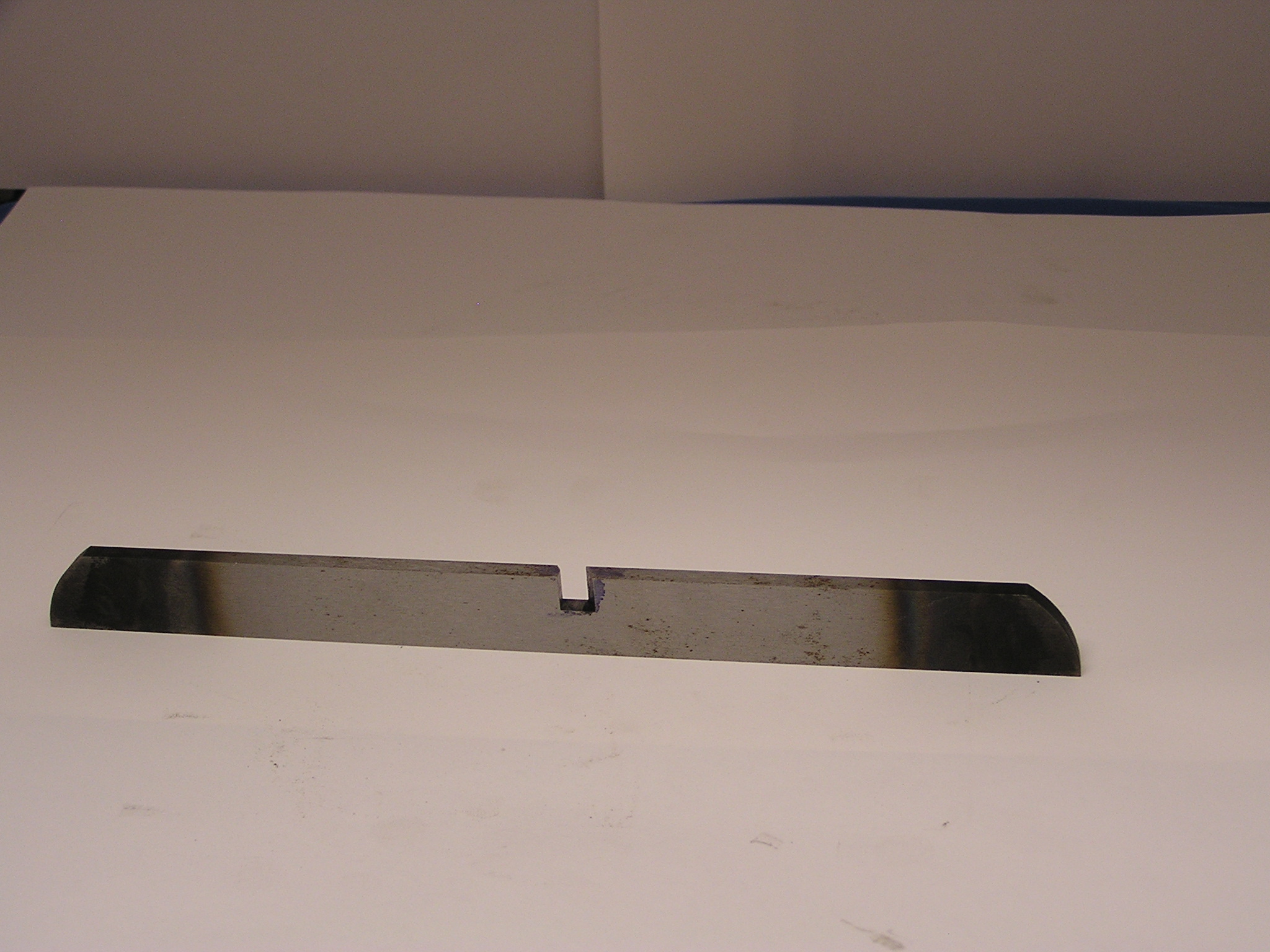

	950	Bar, Pawl Engagement	6A
	1013	Shaft, Size Adjustment Pinion	6A

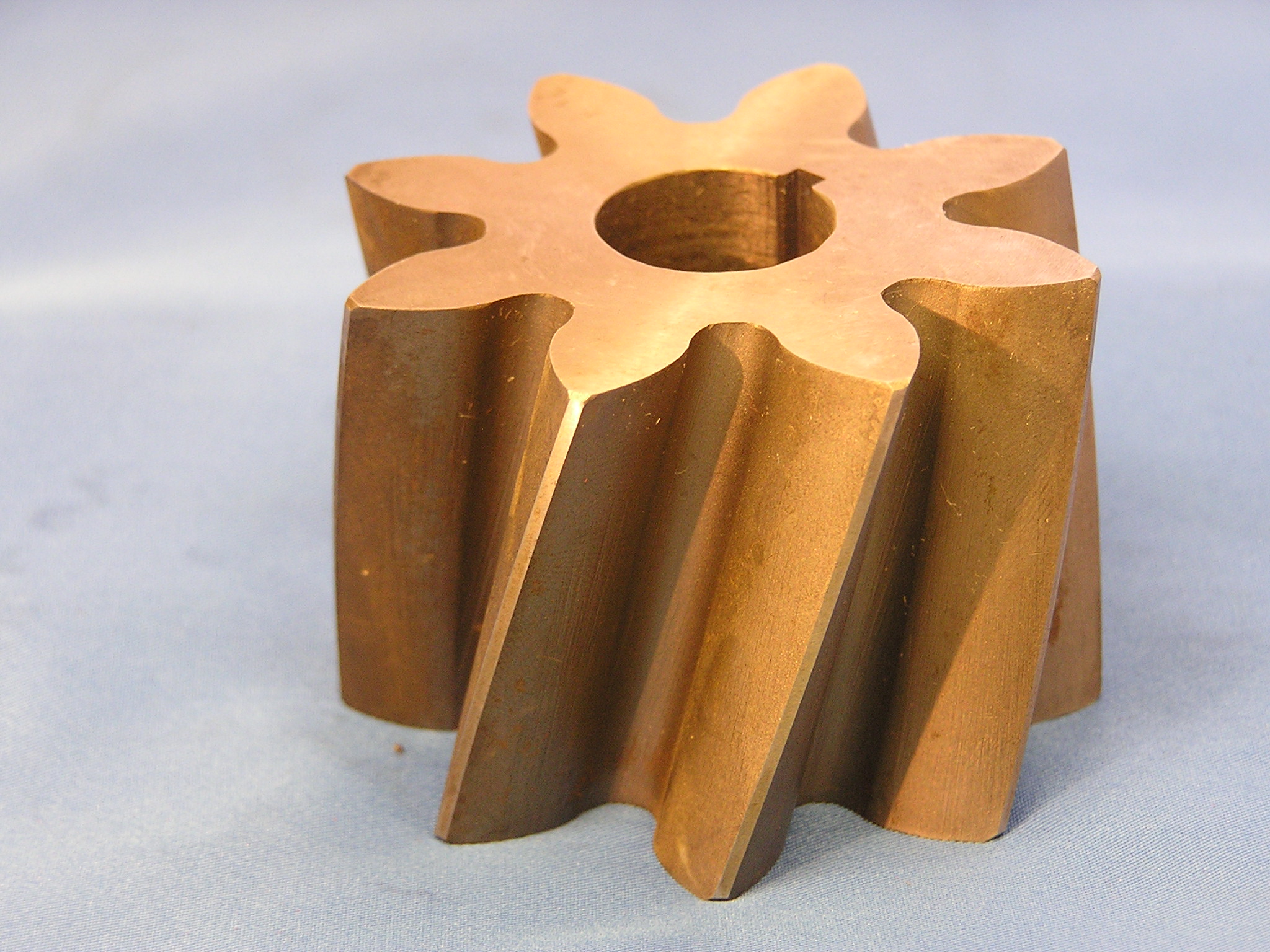

	1065	Gear, Coolant Pump Drive	6A, 7, 7A
	33-GS	Crankshaft	3GS
	1014-GS	Washer, Thrust grind to fit	36
	1015-GS	Bearing, Thrust, replaces washer	36
	1016-GS	Pinion, Cutter Spindle	36
	1018-GS	Sleeve, Rock Shaft	36
	1020-GS	Screw, Rack 6-inch stroke	36-6
	1023-GS	Gear, Rock Shaft	36
	1035-GS	Worm, Indexing	36
	1037-GS	Spacer, Lower Worm Box Thrust grind to fit	36
	1055-GS	Shaft, Size Adjustment Pinion	36
	1058-GS	Gear, Helical Alignment	36
	1060-GS	Gear, Crown Wheel Pinion	36
	1073-GS	Rachet, Feed	36
	1088-GS	Pawl, Feed	36
	1112-GS	Gear, 33-37 Tooth Tandem	36
	1113-GS	Gear, 25-30 Tooth Tandem	36
	1114-GS	Chart, Feed	36
	1122-GS	Gear, Miter drive	36
	1123-GS	Gear, Miter driven	36
	1164-GS	Block, Apron fixed	36
	1165-GS	Block, Apron adj.	36
	1194	Extension, Spindle 17" OAL	6A
	1194HD	Extension, Spindle 23" OAL	6A
	1276-GS	Pin, Apron Link D2 tool steel	36
	1281-GS	Pin, Apron Rack grind to fit	36
	1296-GS	Washer, Thrust grind to fit	36
	1366-GS	Pin, Apron Guide	36
	1202-GS	Nut, Spanner	36
	1420	Gasket, Rubber	7 & 6A
	1435-GS	Chart, Timer	36
	1454HD	Spring, Counterforce 13" free length, 60 lb/in	6A
	1457	Nut, Knurled 1-1/4 - 7 thread, 7/8" thick	6A

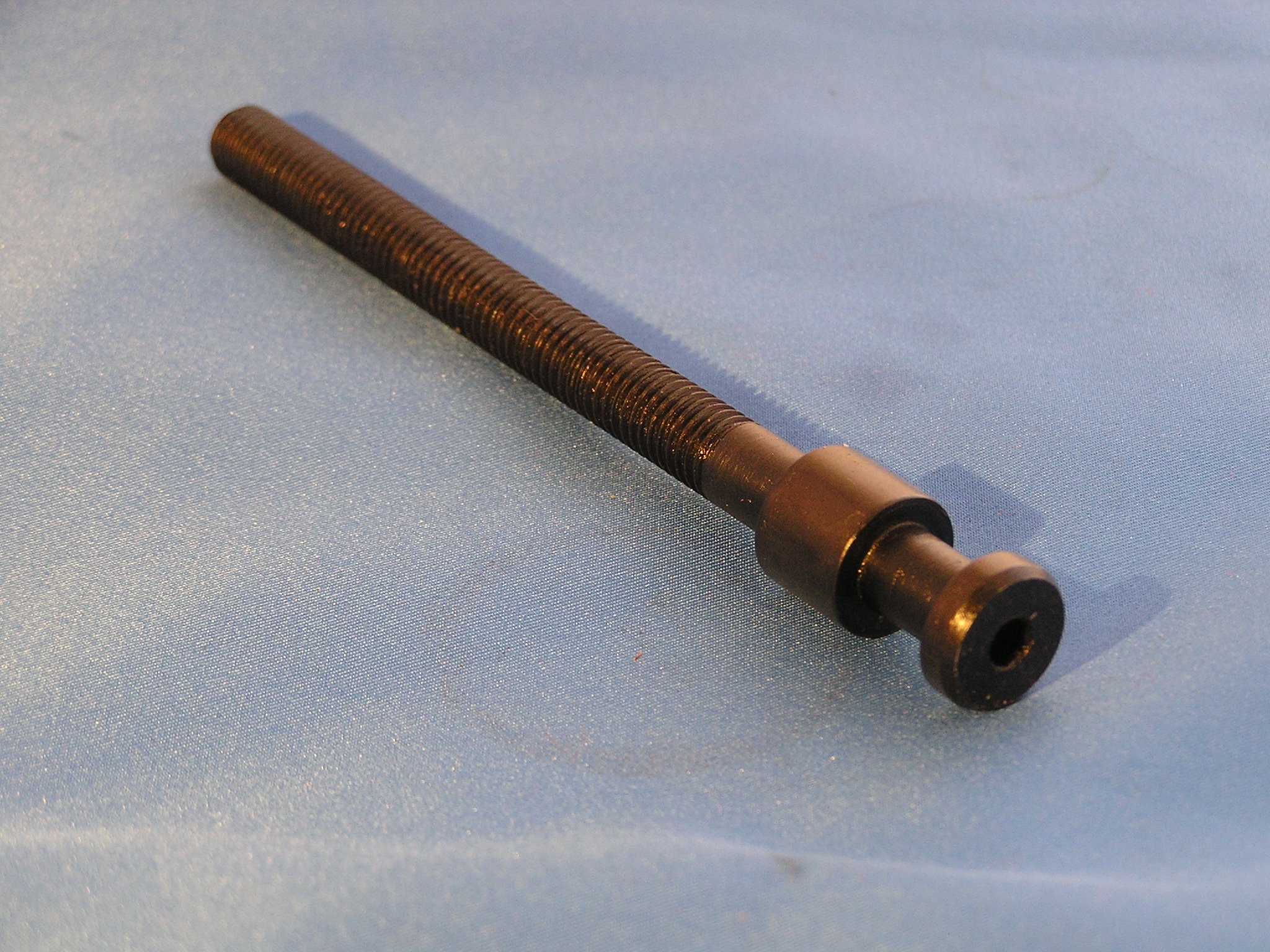

	1465	Screw, Stroke Adjusting shorten for 7 type	4GS, 7, 7A

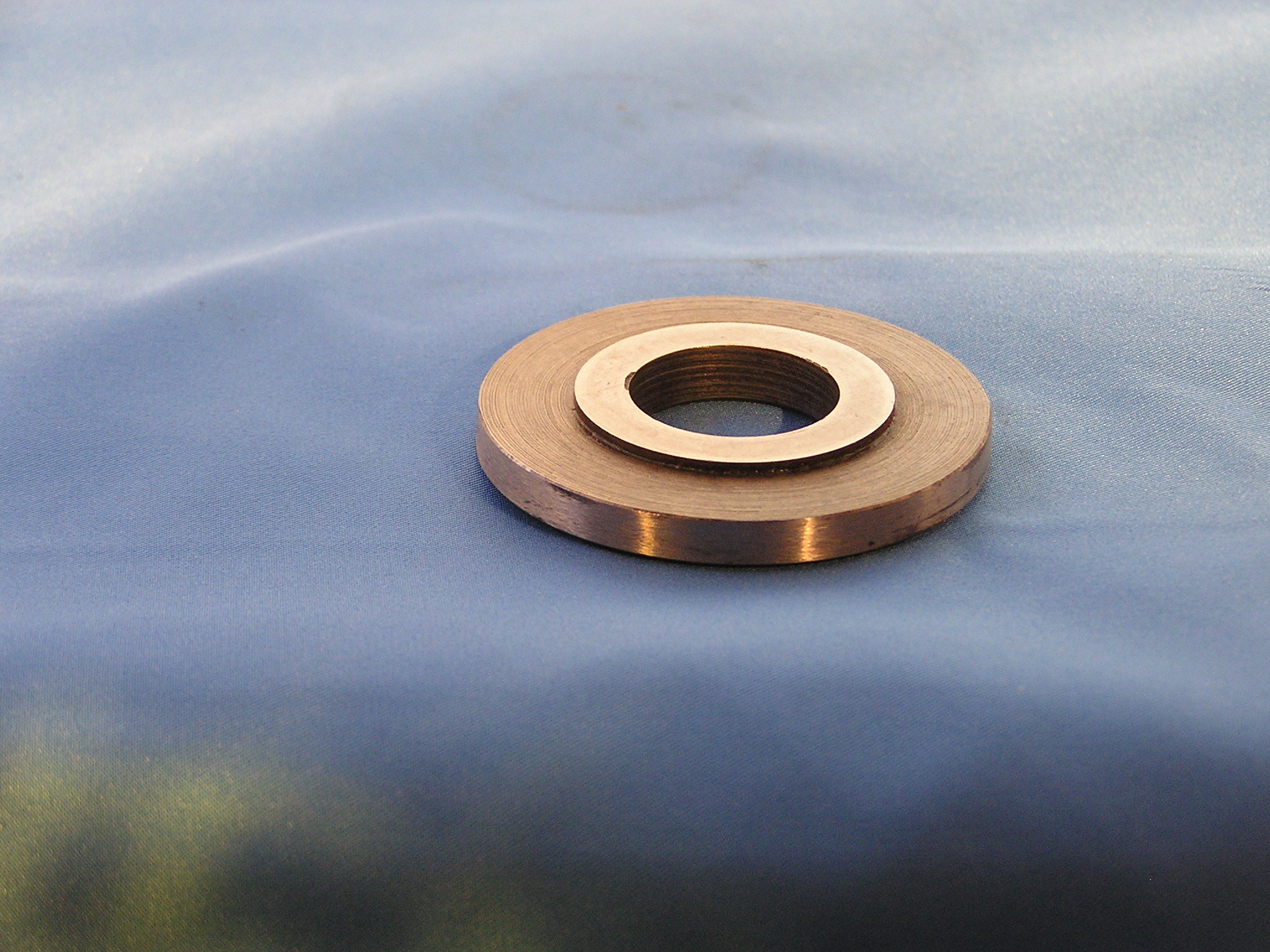

	1467	Washer, Crank Pin	7A

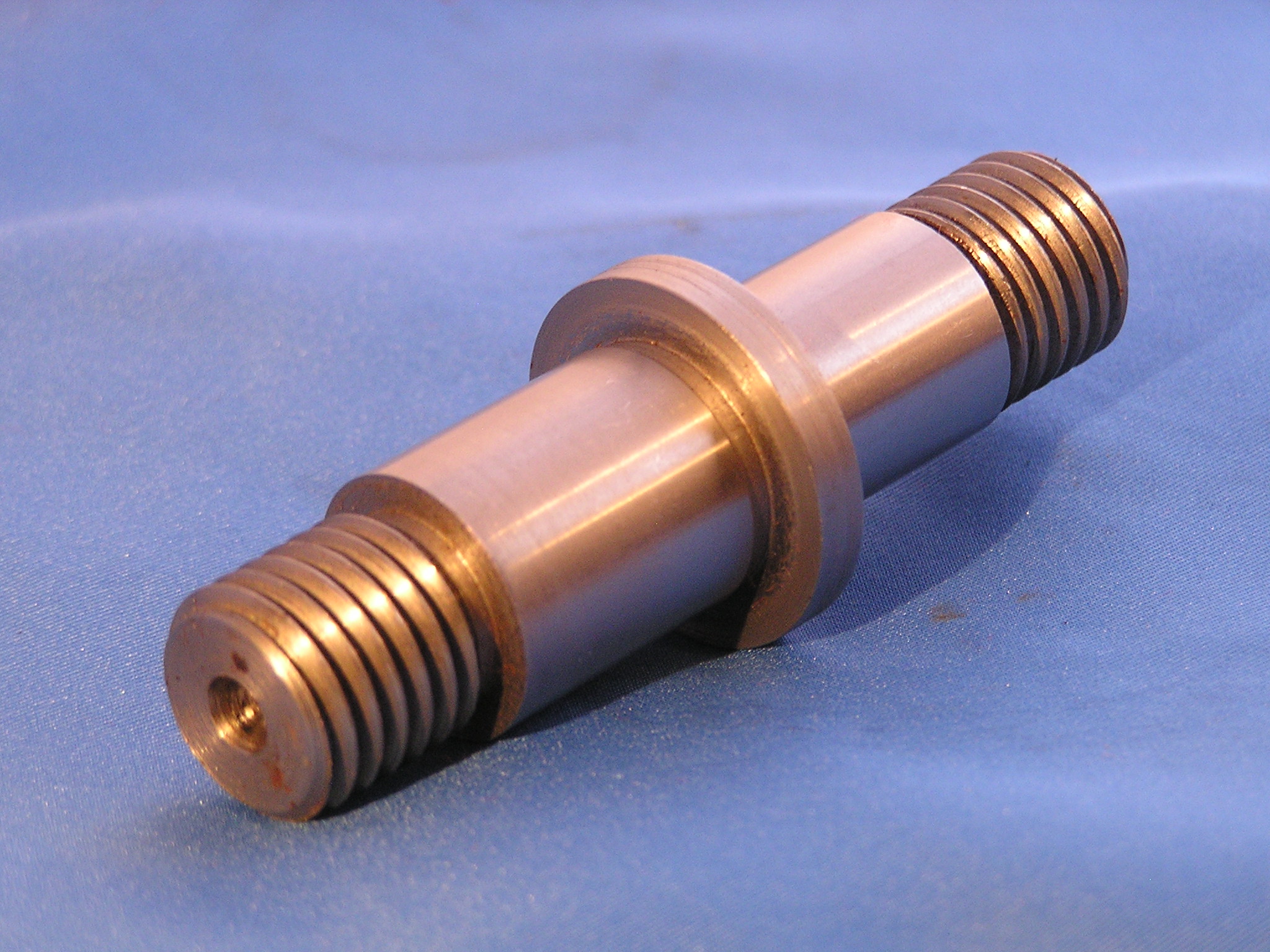

	1468	Stud, Operating Arm	7A

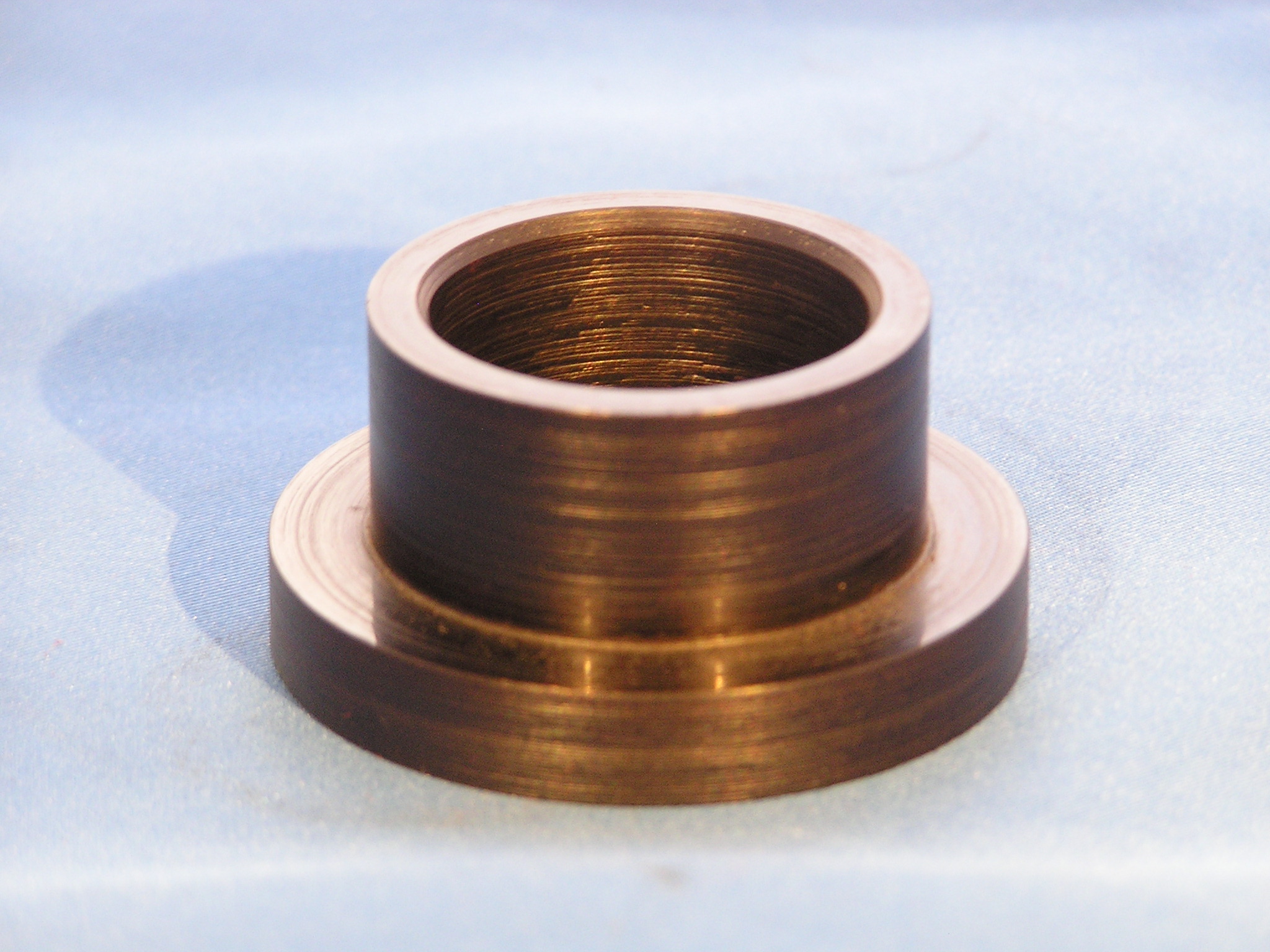

	1516	Sleeve, Counter Force Spring	7 & 7A
	1524-GS	Sleeve, Pinion	36

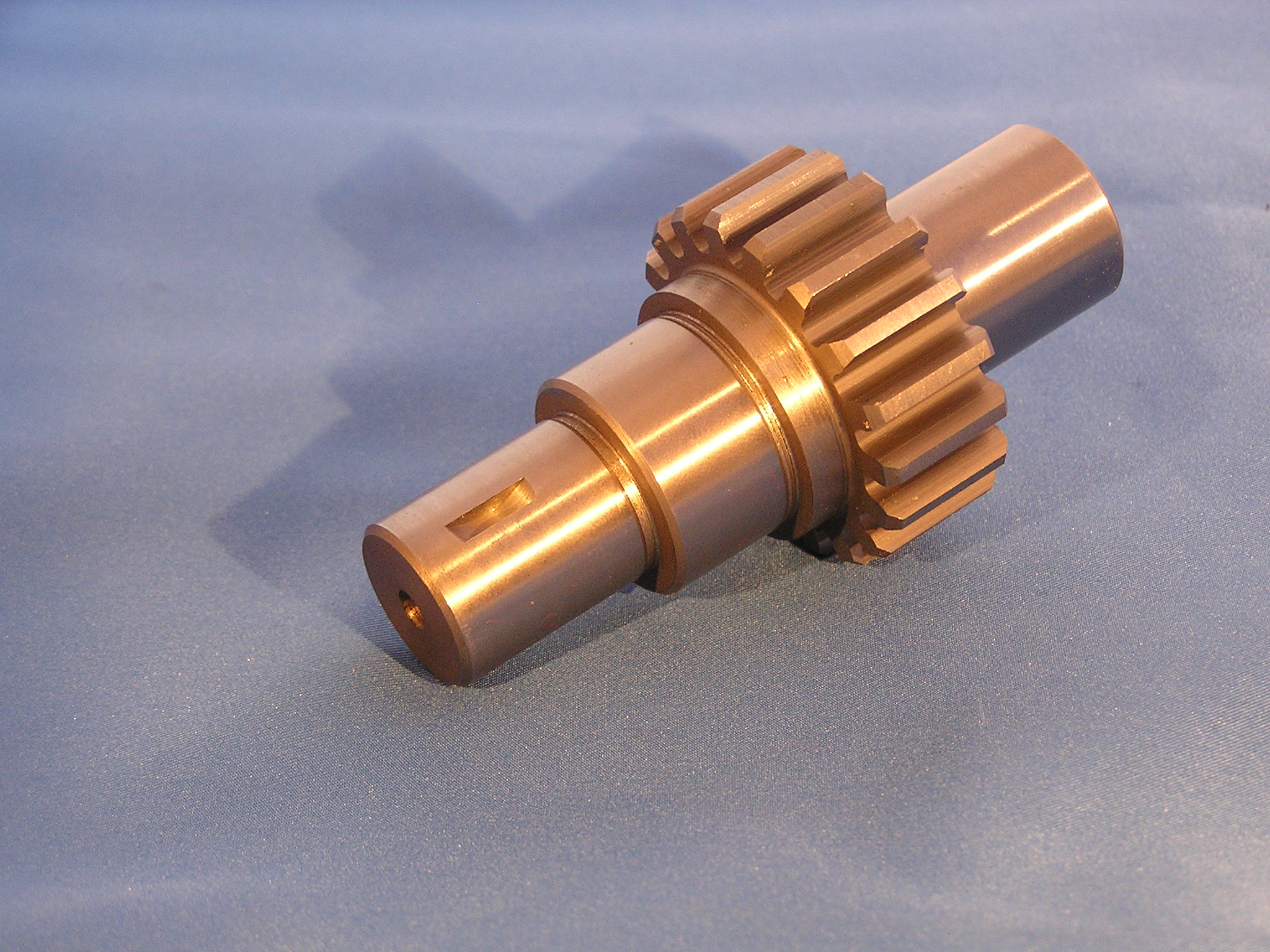

	1530	Shaft, Miter Gear	7A

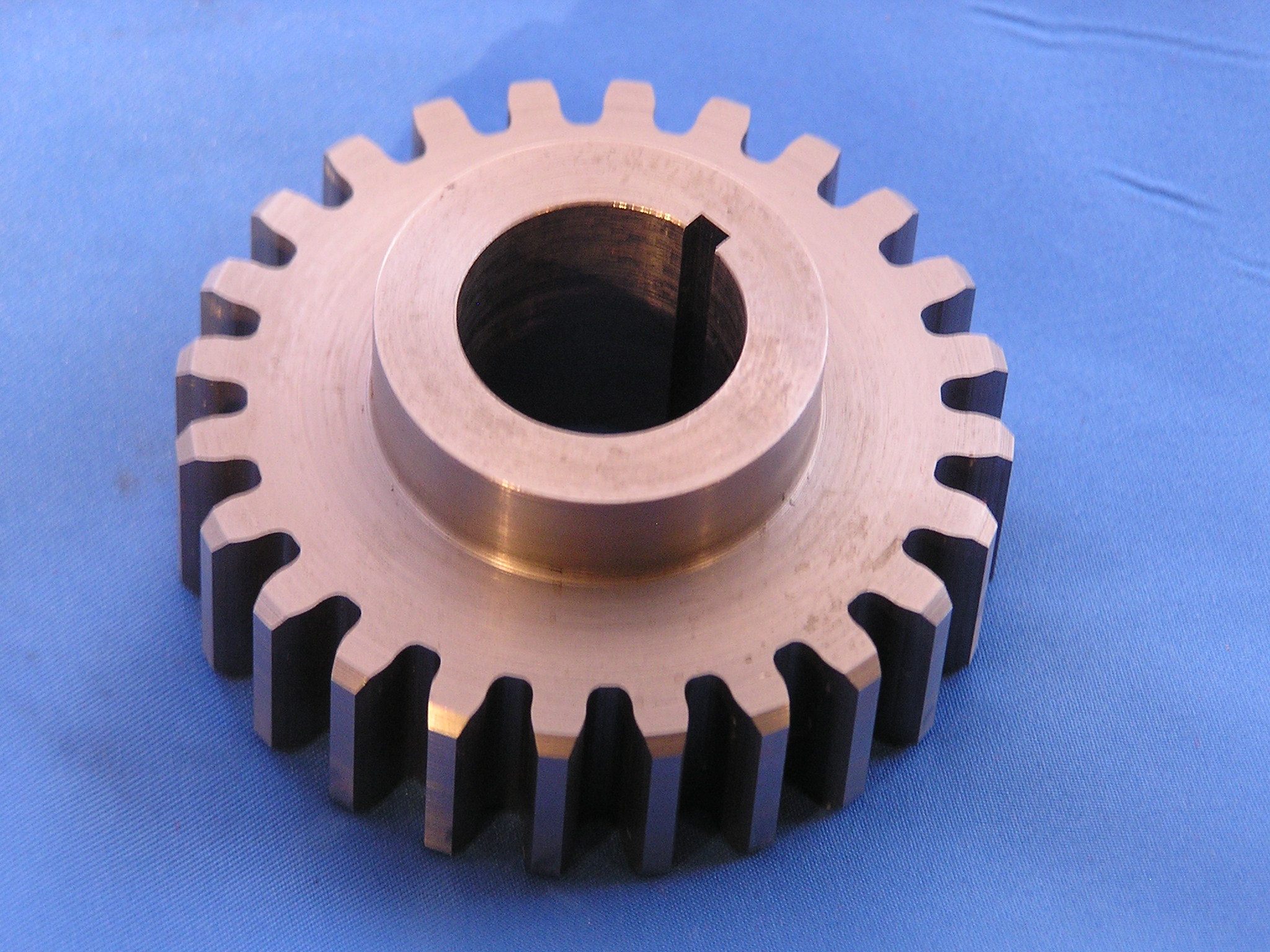

	1531	Gear, Lower Vertical Feed Shaft	7A

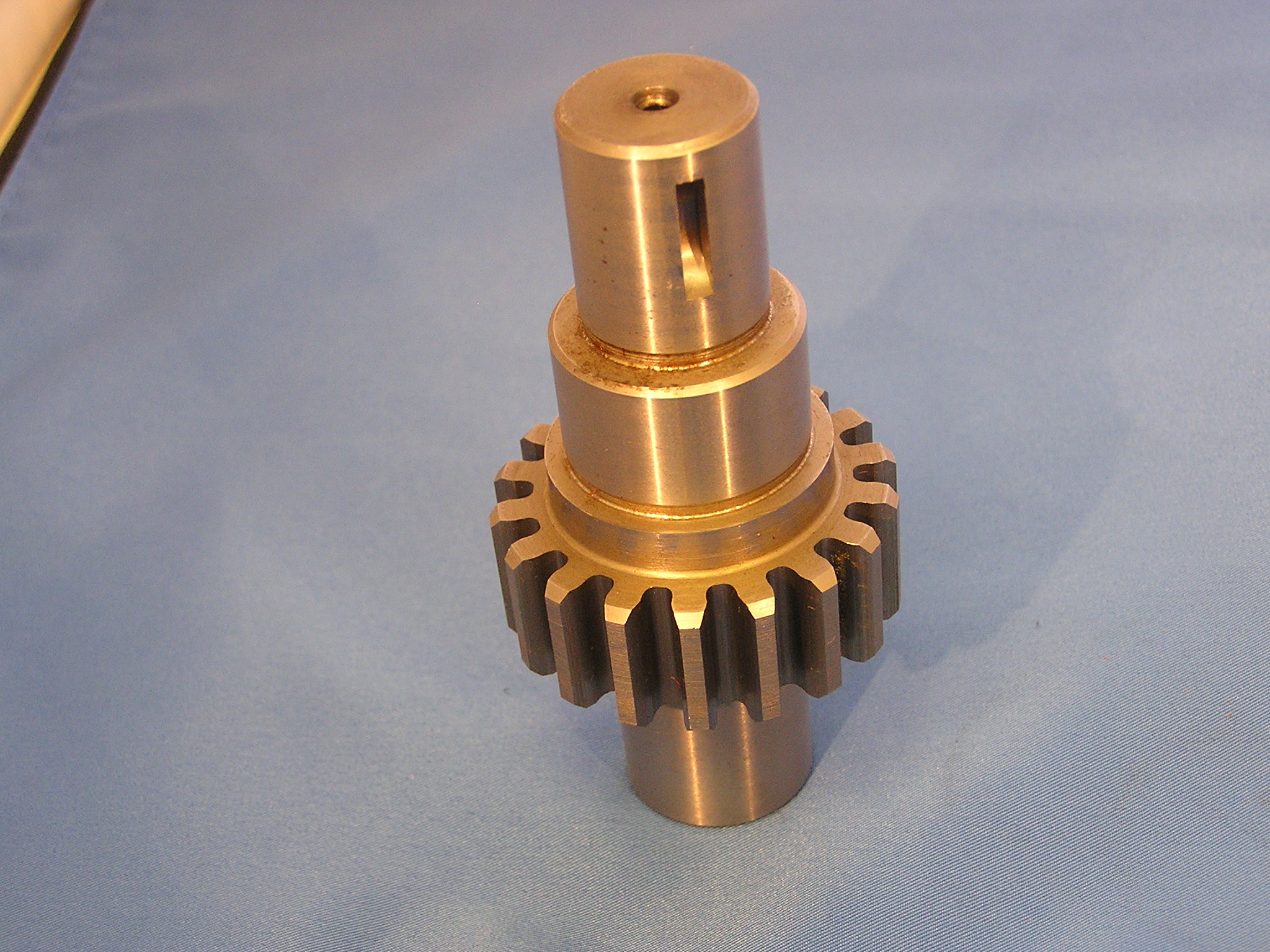

	1533	Shaft, Lower Vertical Feed	7A
	1543-GS	Bearing, Ball DB mounting	36
	1756-GS	Strap, Apron Guide 9-3/4" length	36
	1757-GS	Screw, Shoulder, 1/2" dia X 1" lg, 7/16 thread	36
	1759-GS	Gear, 48-Tooth	36
	1760-GS	Gear, 41-45 Tooth Tandem	36
	1859-GS	Stud, Eccentric	4GS & 36
	1939-GS	Spring, Counterforce 27-1/2" free length	36-6
	1988-GS	Cam, Relieving .026 apron travel	36-6
	2018-GS	Screw, Rack 8-inch stroke	36-8

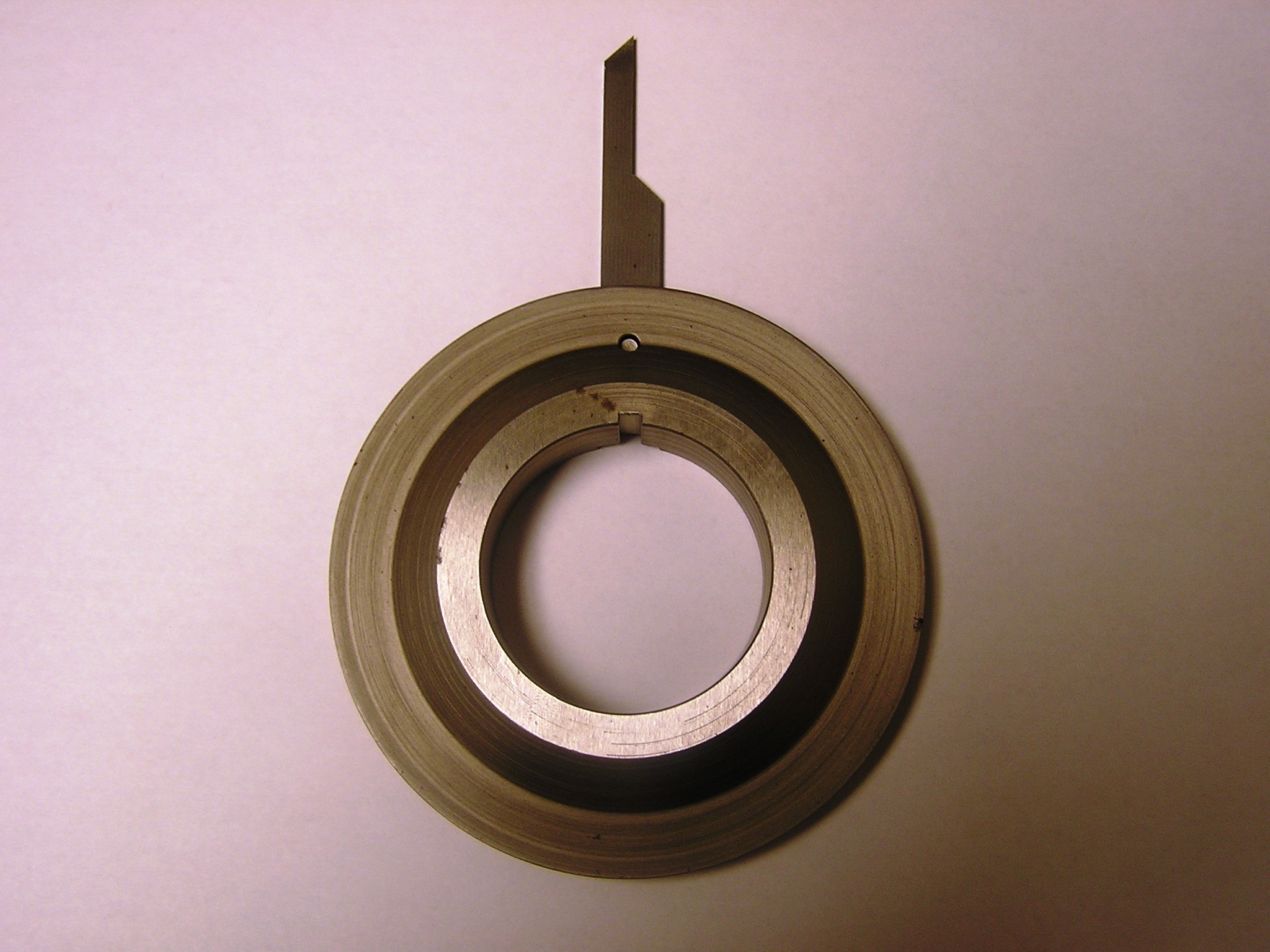

	3448-GS	Washer, Crank Pin With Pointer	36
	5014-GS	Gear, Ratchet	4GS
	5037-GS	Gear, Rock Shaft	4GS
	5038-GS	Sleeve, Rock Shaft	4GS
	5055-GS	Shaft, Size Adjustment Pinion	4GS
	5113-GS	Block, Stroke Adjustment Screw	4GS
	5144-GS	Cam, Relieving	4GS
	5149-GS	Shaft, Hand Rotation	4GS
	5157-GS	Lifter, Micro Switch	4GS
	5183-GS	Key, Aligning	4GS
	5265-GS	Cylinder, Dampening with adpt.	4GS
	5372-GS	Pump, Coolant 1/4 HP 3-1/4" X 6-1/4" bolt pattern	4GS, 36, 10-2

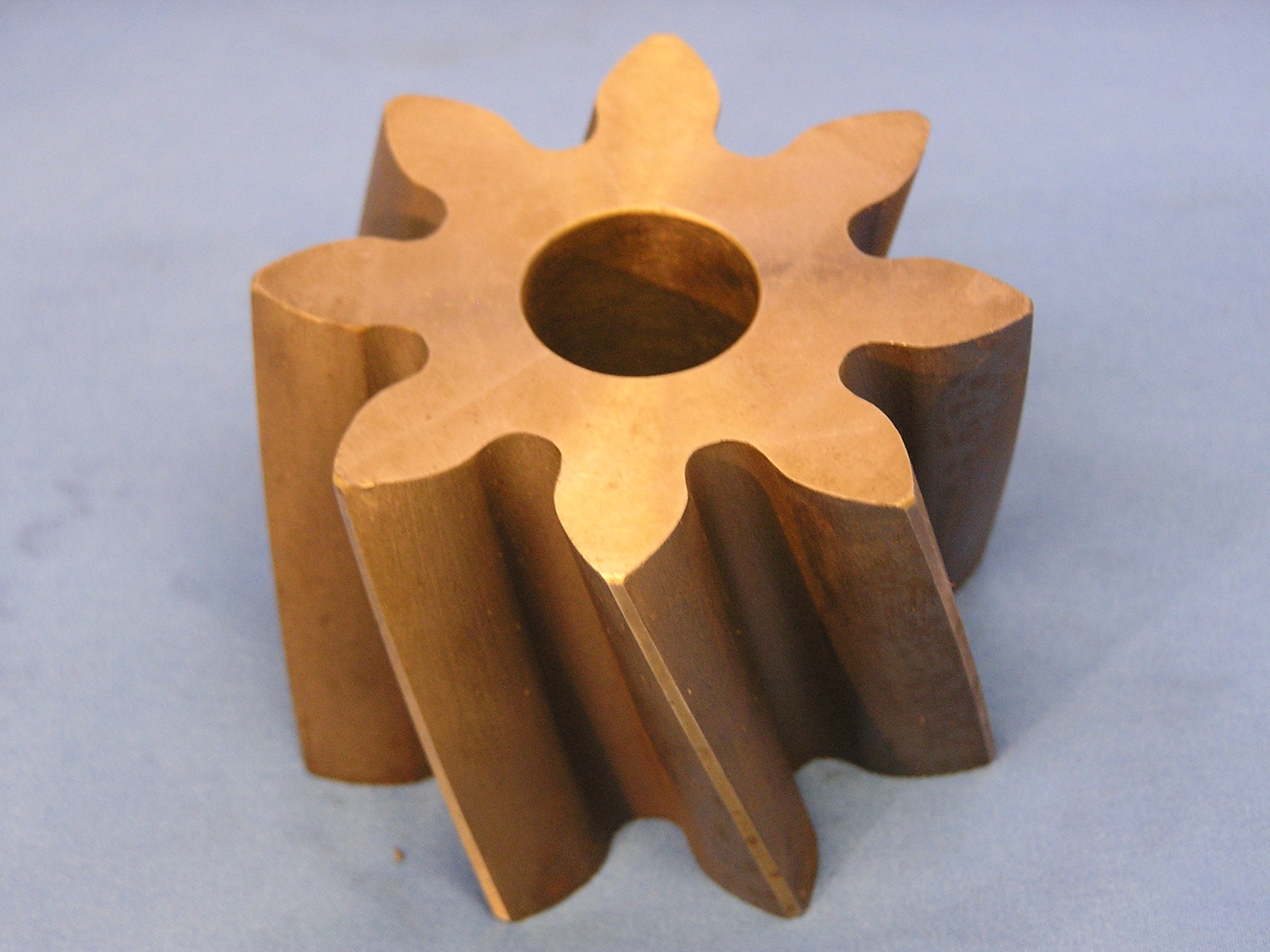

	7920	Gear, Coolant Pump Driven	6A, 7, 7A

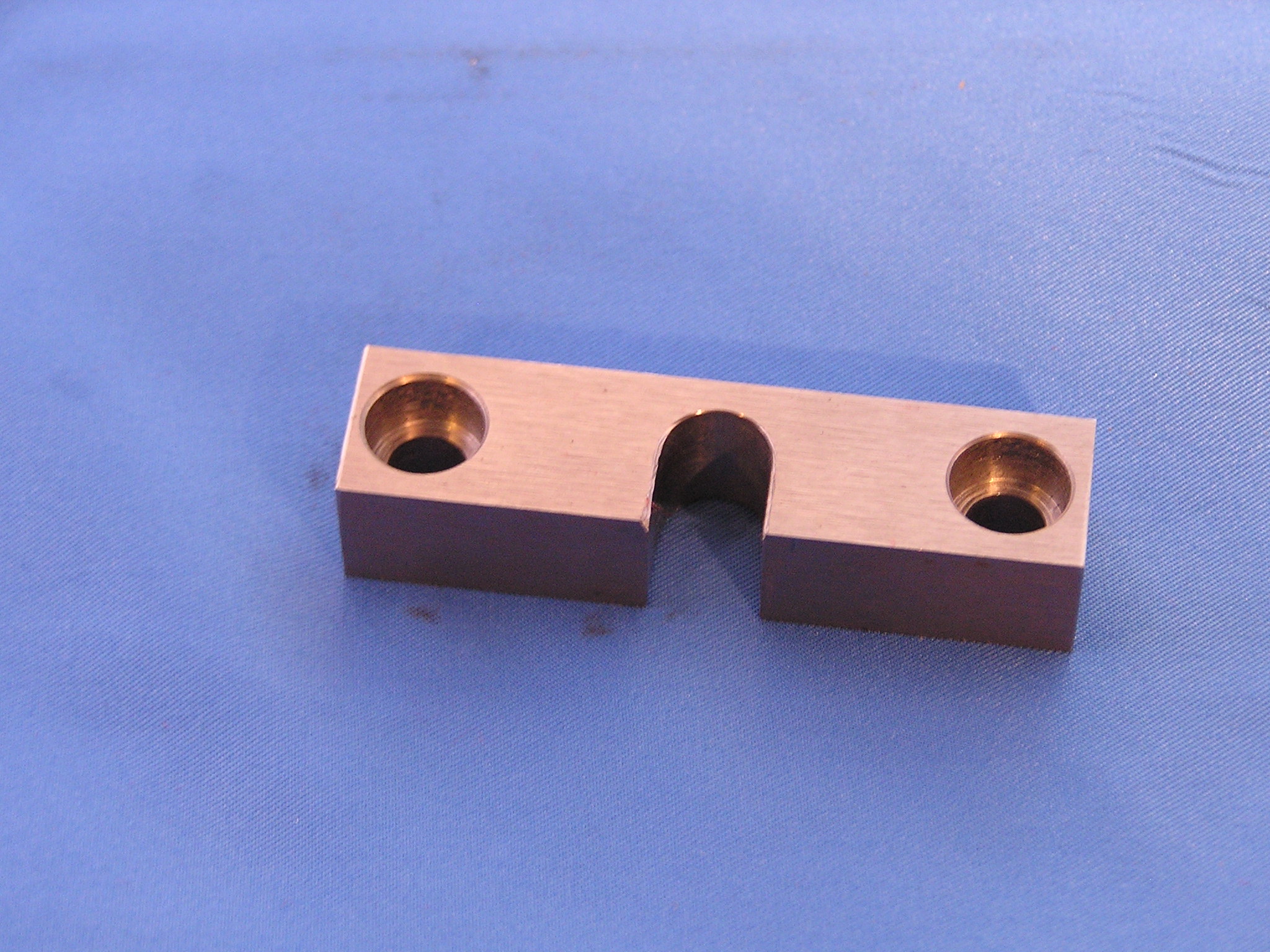

	8583	Block, Stroke Adjustment Screw	7 & 7A
	10002	Shaft, Rack Screw	6A
	10005	Pin, Apron Link, D2 tool steel	6A
	10009	Pin, Apron Rack	6A

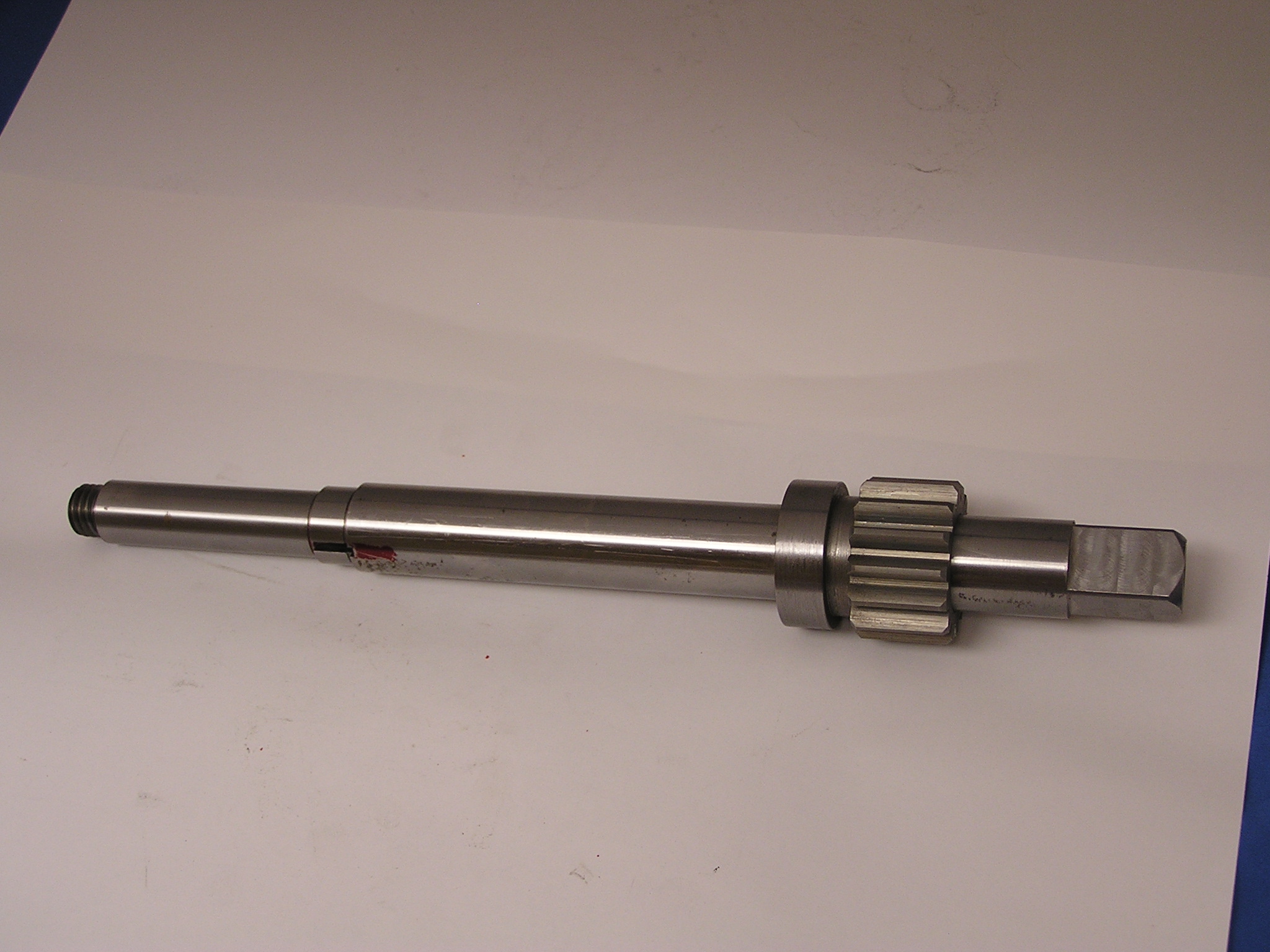

	10011	Shaft, Infeed Pawl With Pinion	6A

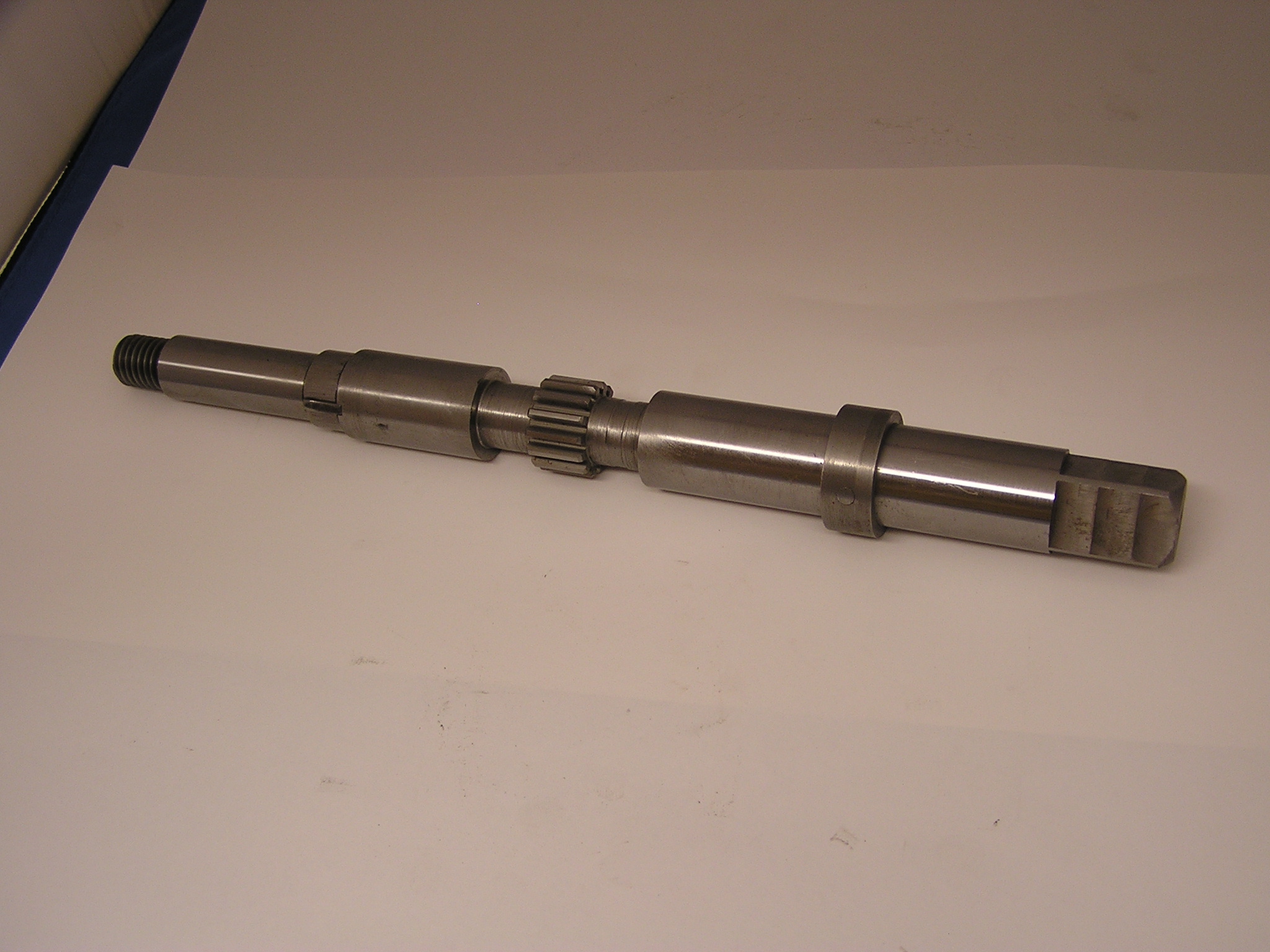

	10012	Shaft, Timing Pawl With Collar	6A

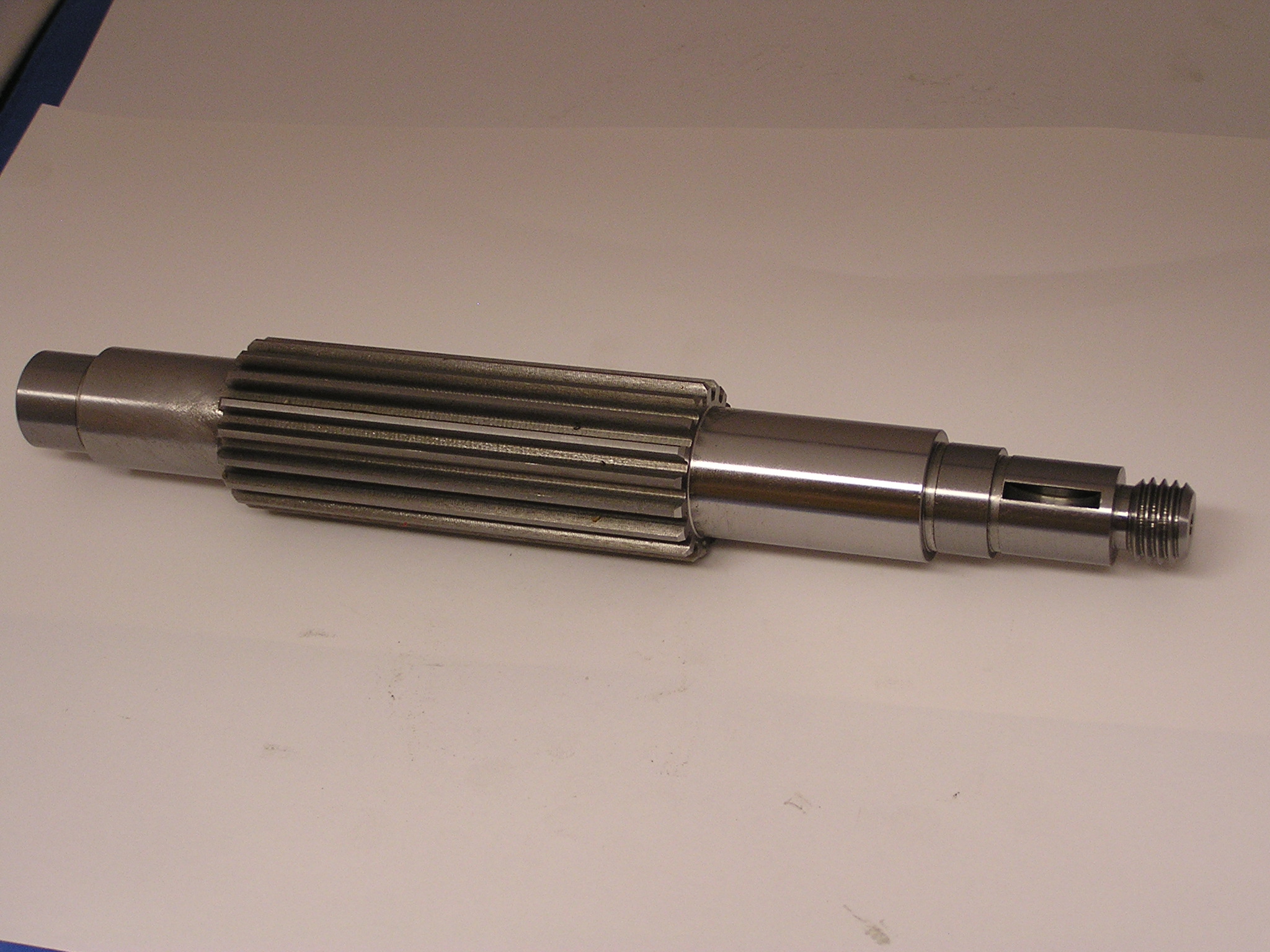

	10019	Shaft, 18-Tooth Feed Gear	6A
	10021	Sleeve, Rack	6A
	10037	Gear, Main Drive	6A & 36-6
	10038	Gear, Tandem Main Drive	6A & 36-6
	10046	Shaft, Cluster Gear	6A

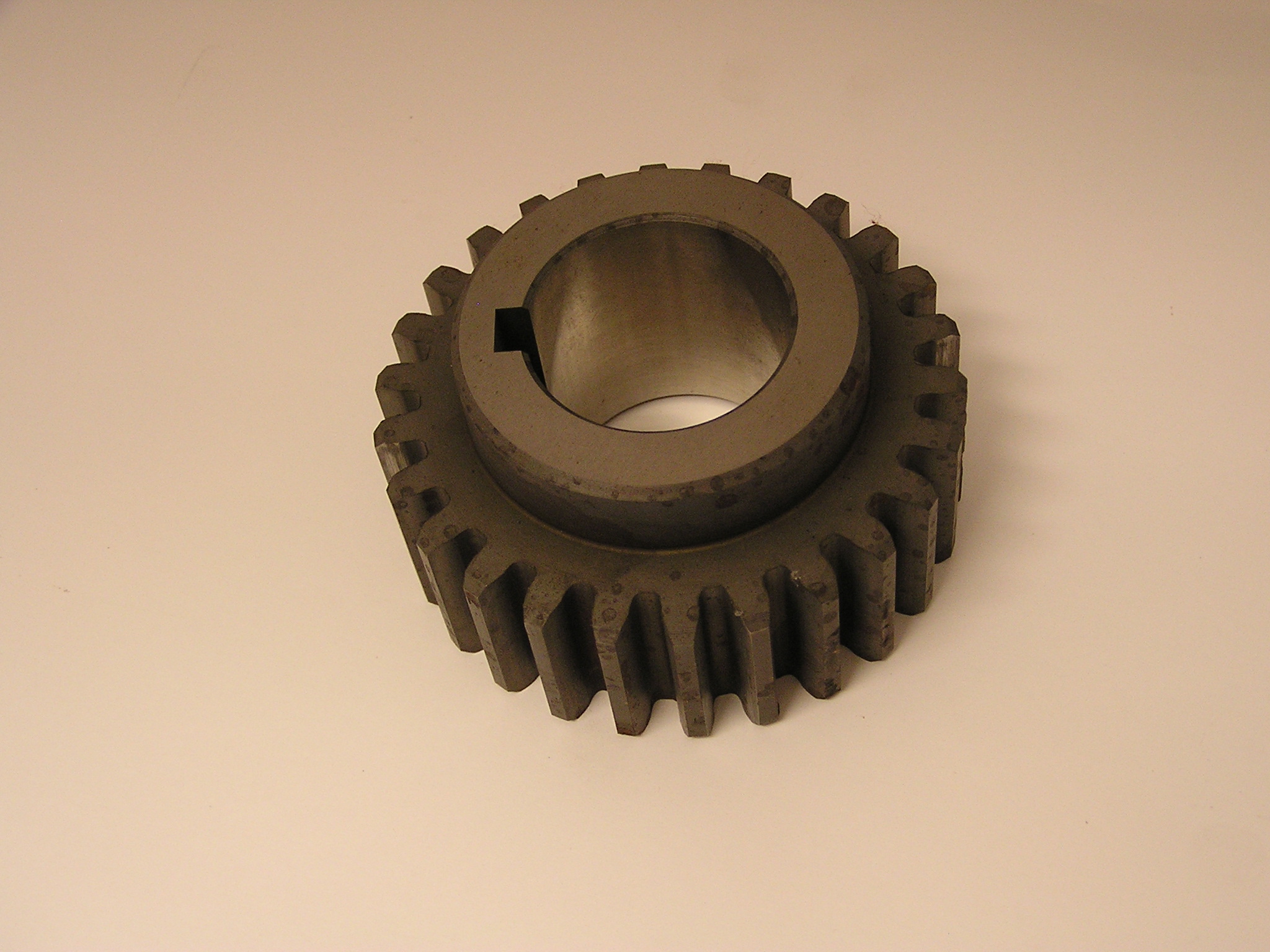

	10049	Gear, Rock Shaft Pinion	6A
	10051	Sprocket, 14-Tooth	6A

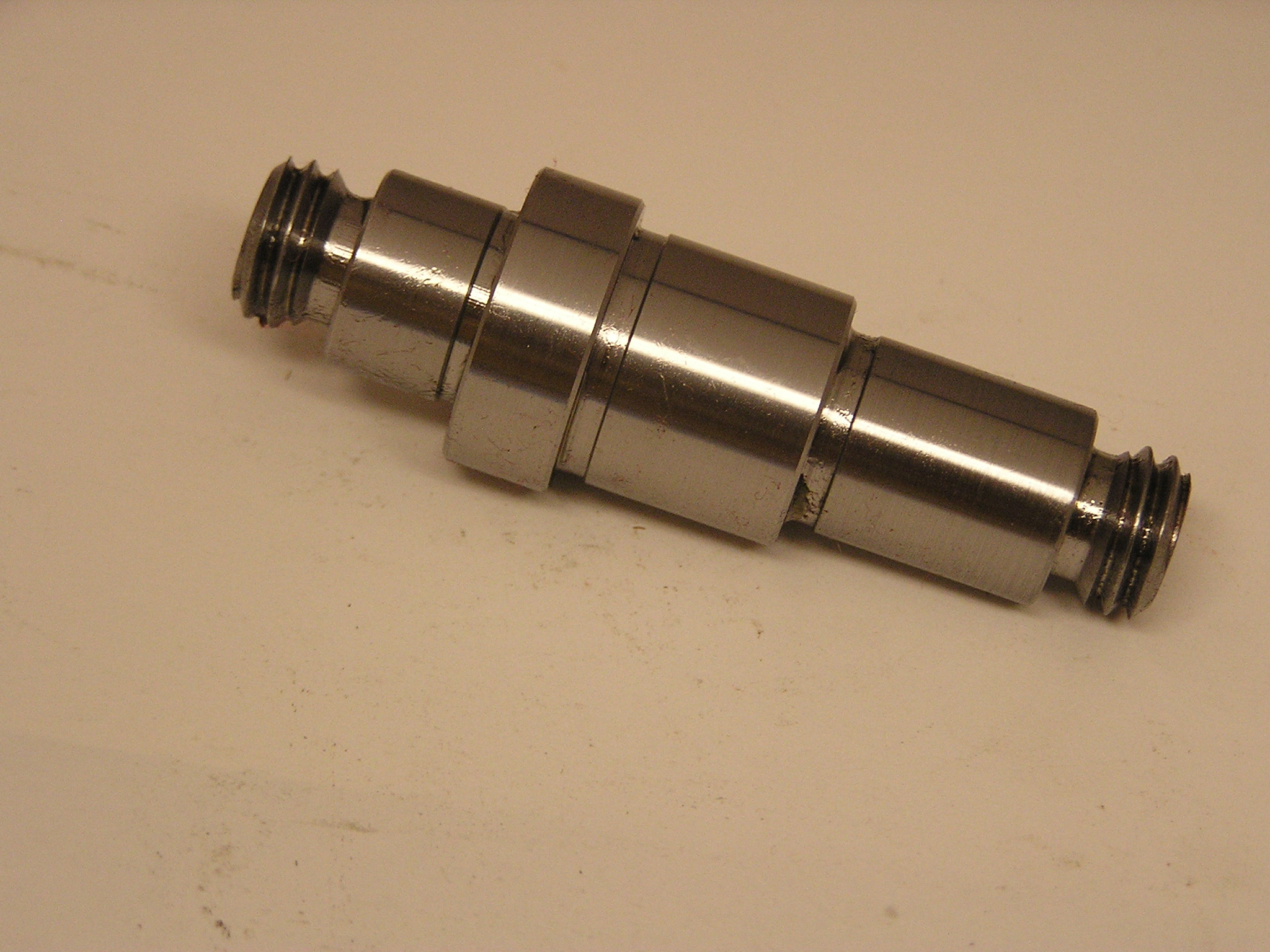

	10065	Shaft, Idler	6A

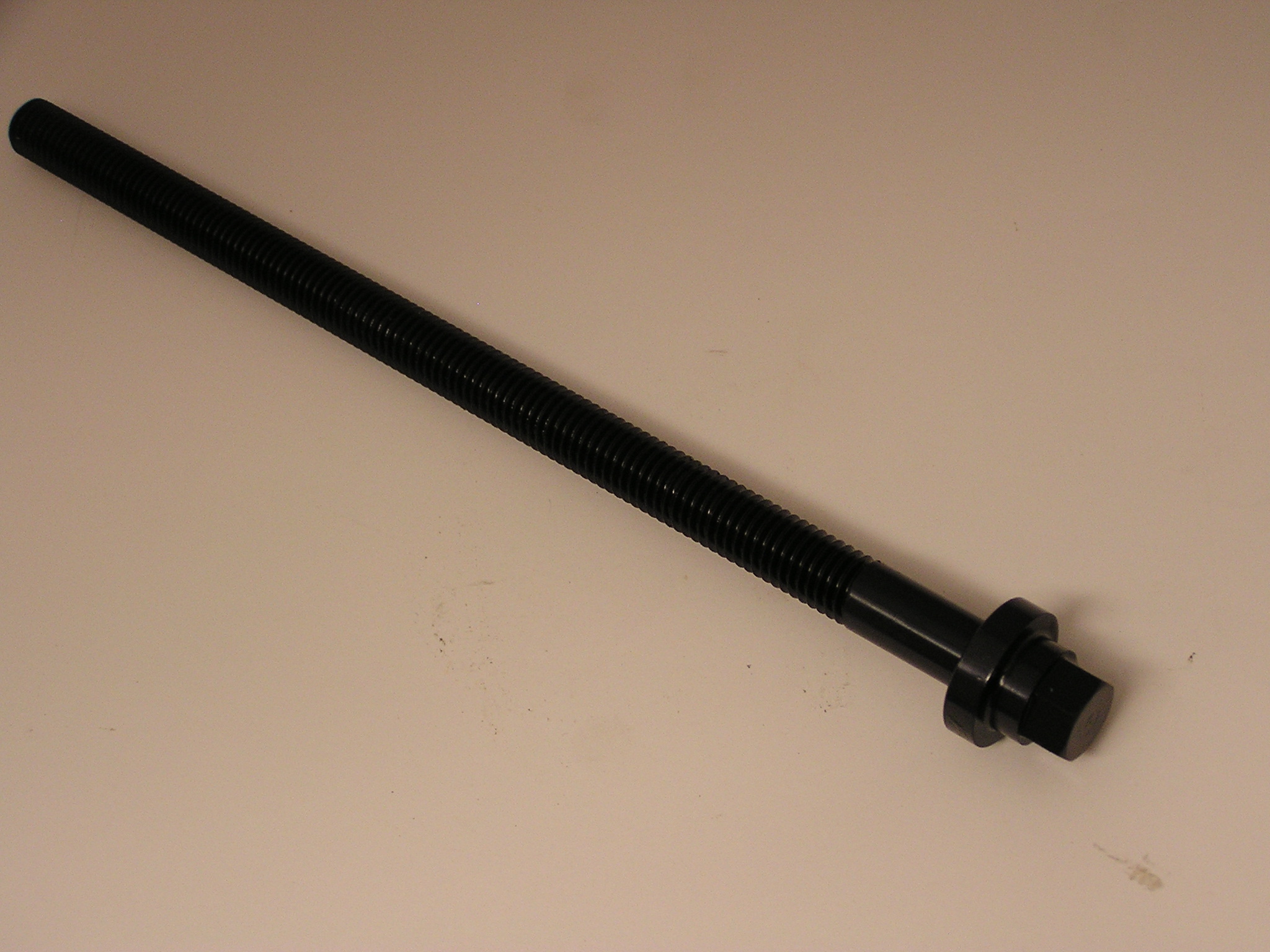

	10111	Screw, Stroke Adjustment	6A & 36-6
	10126	Pin, Apron Guide	6A
	10143	Gear, Cutter Slide Pinion	6A
	10166	Cam, Apron Locking	6A & 36-6

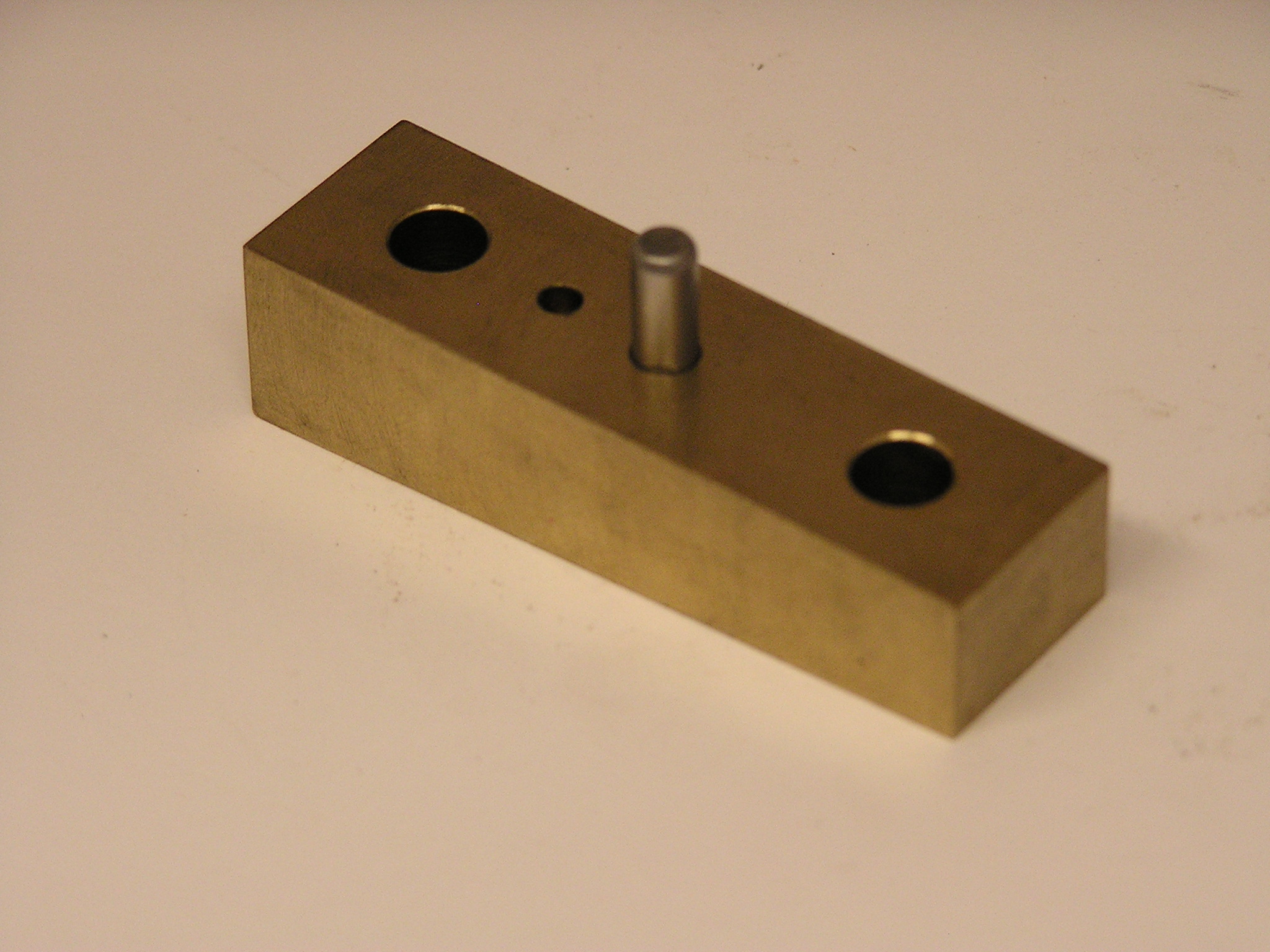

	10224	Block, Bronze Apron 0°	6A

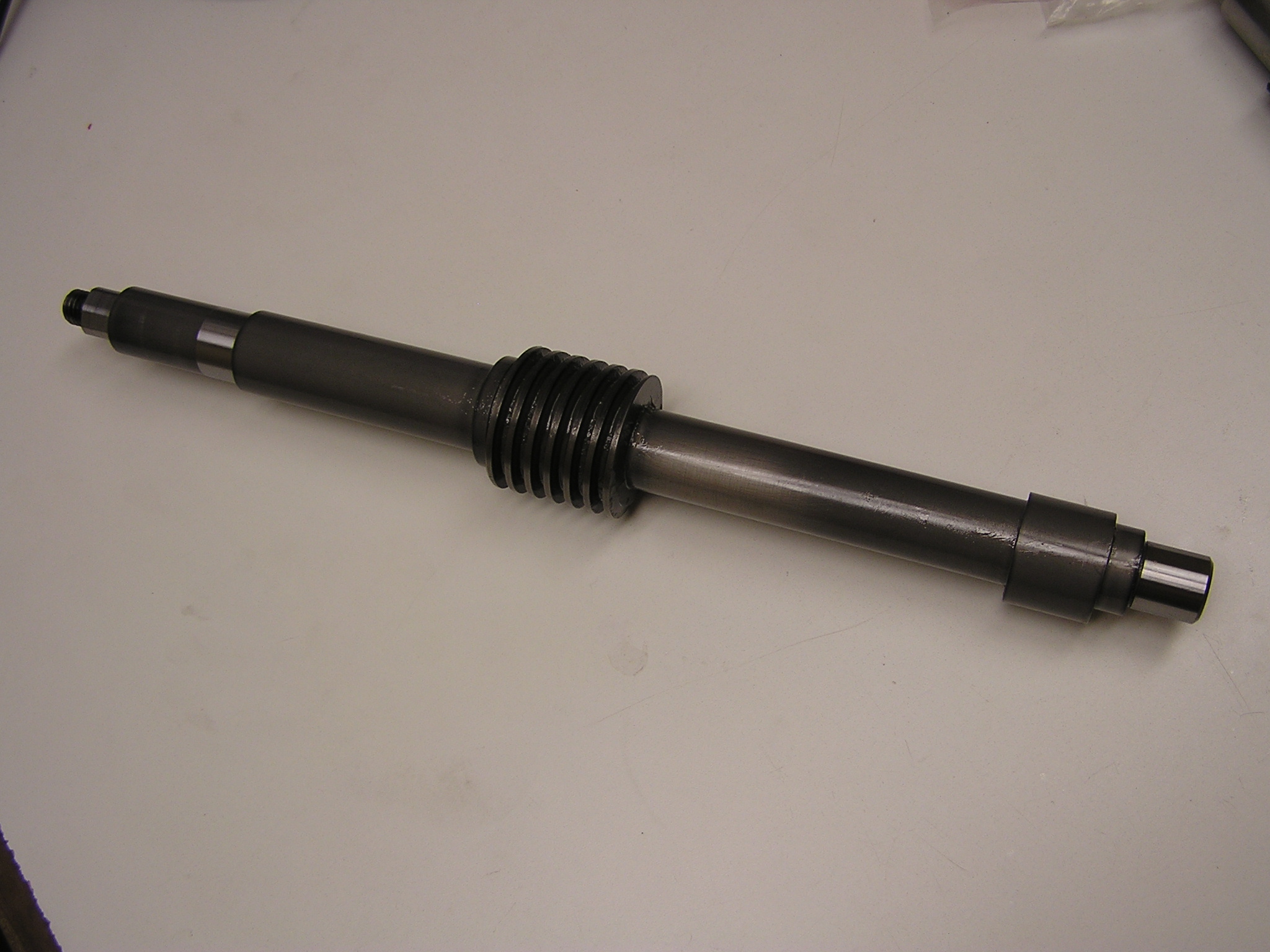

	10362	Worm, Lower Indexing	6A

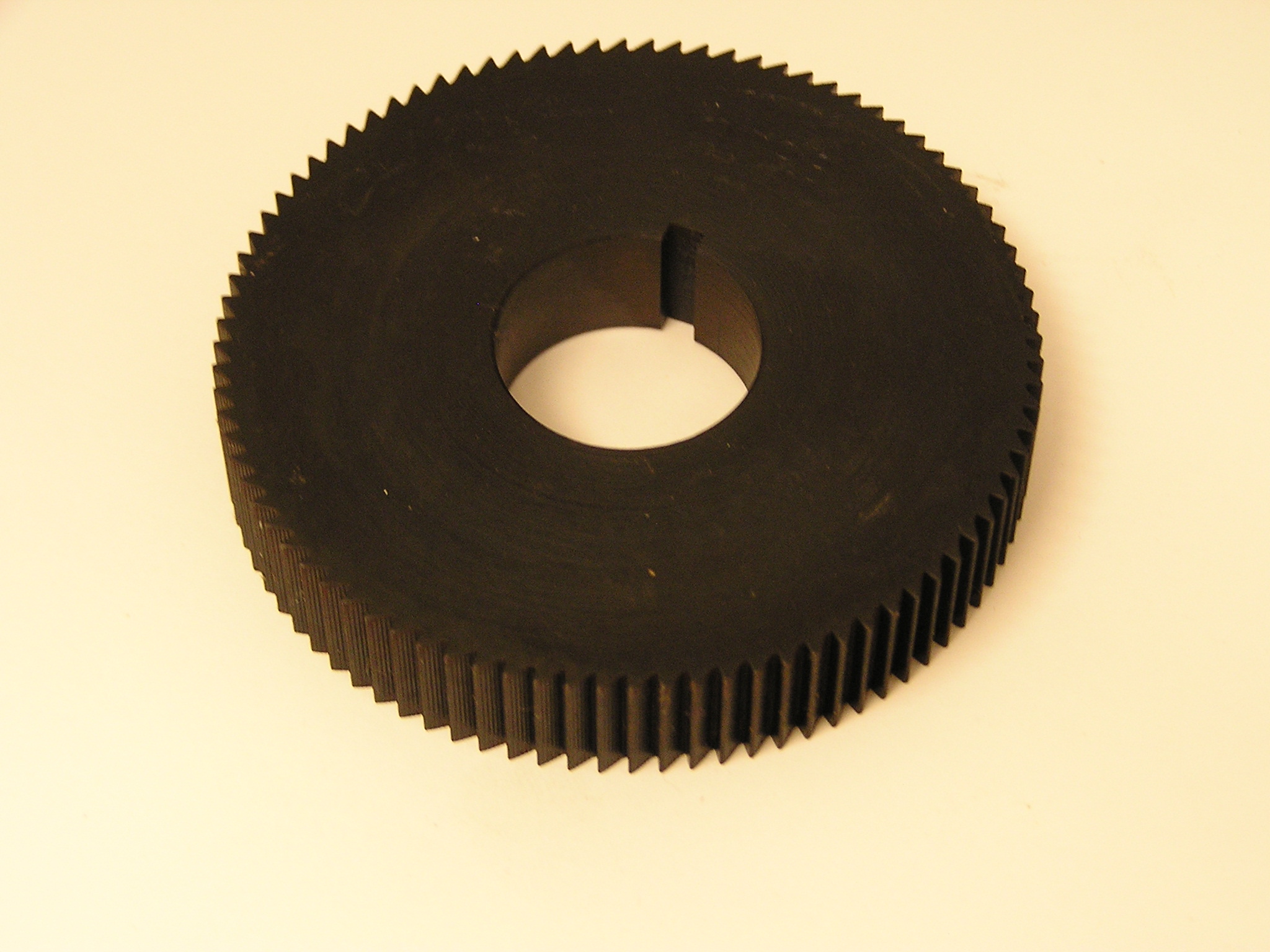

	10398	Rachet, 88-Tooth Infeed	6A

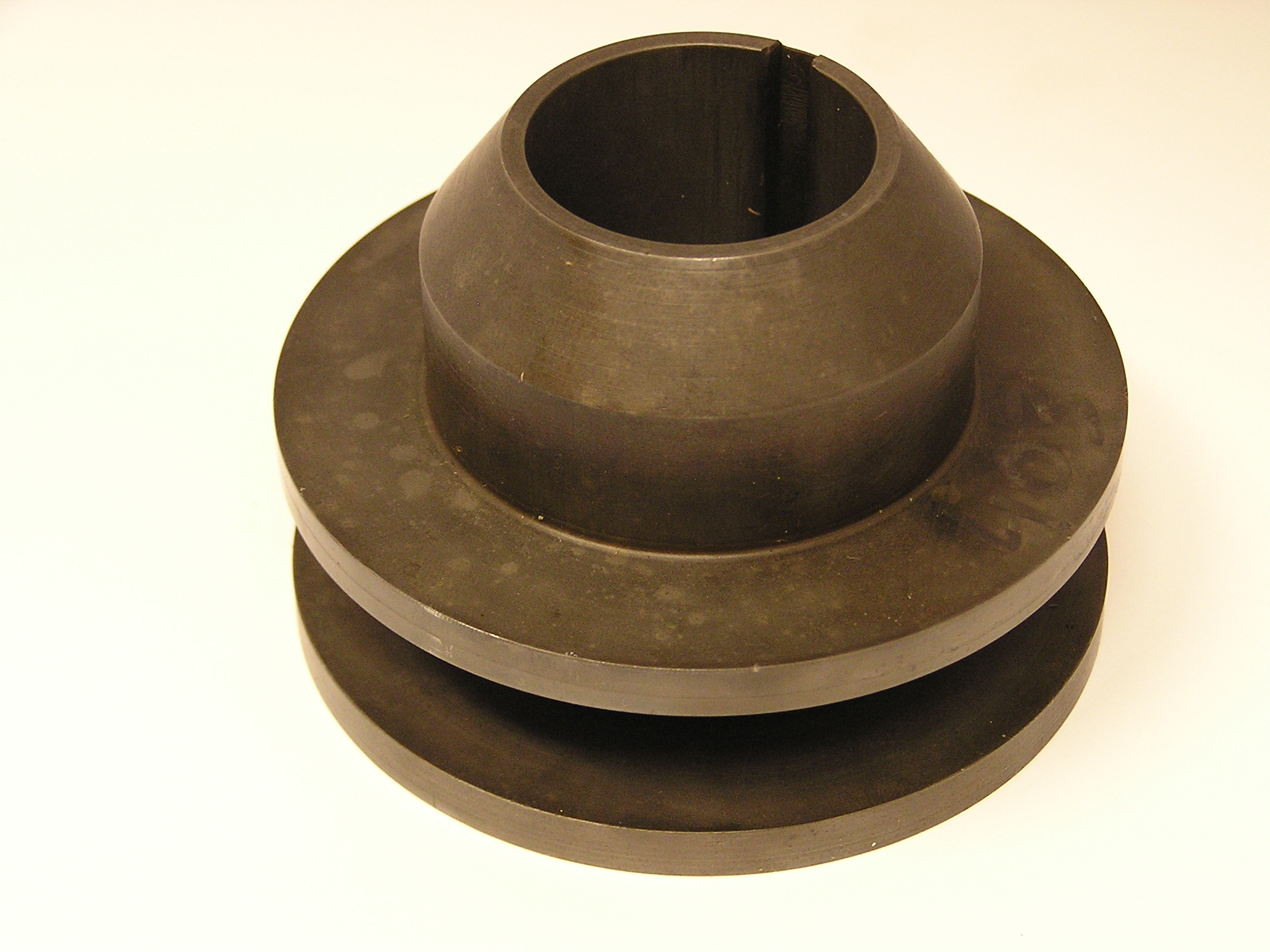

	10402	Cone, Throwout With Flange	6A
	10424	Pinion, Crown Wheel	6A
	10430E	Gear, 20-Tooth bevel, early production	6A
	10430L	Gear, 28-Tooth Bevel, late production	6A
	10432	Gear, 35-Tooth Bevel, late production	6A
	10433	Gear, 24-tooth Bevel	6A

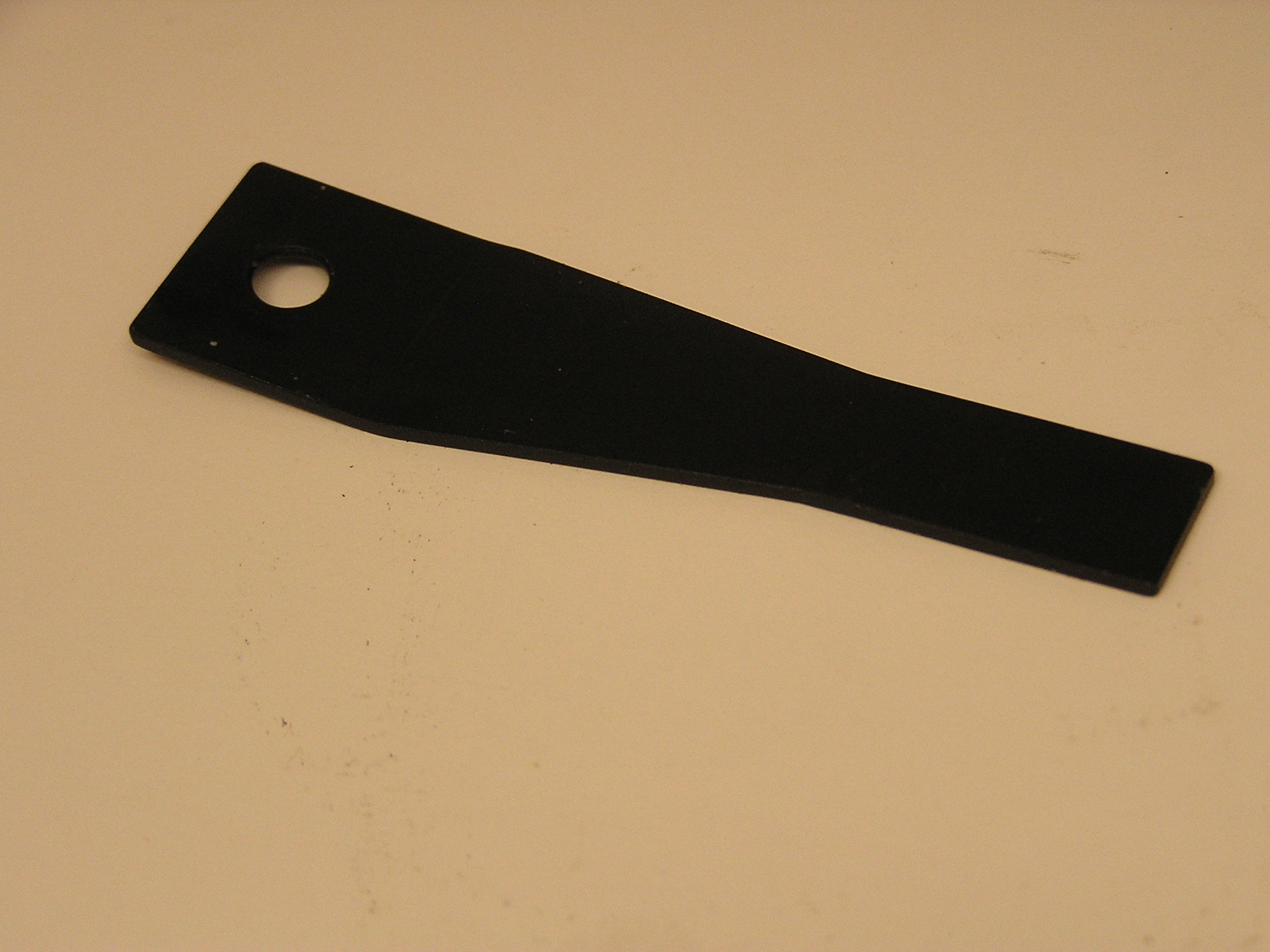

	10453	Finger, Cam Advance	6A

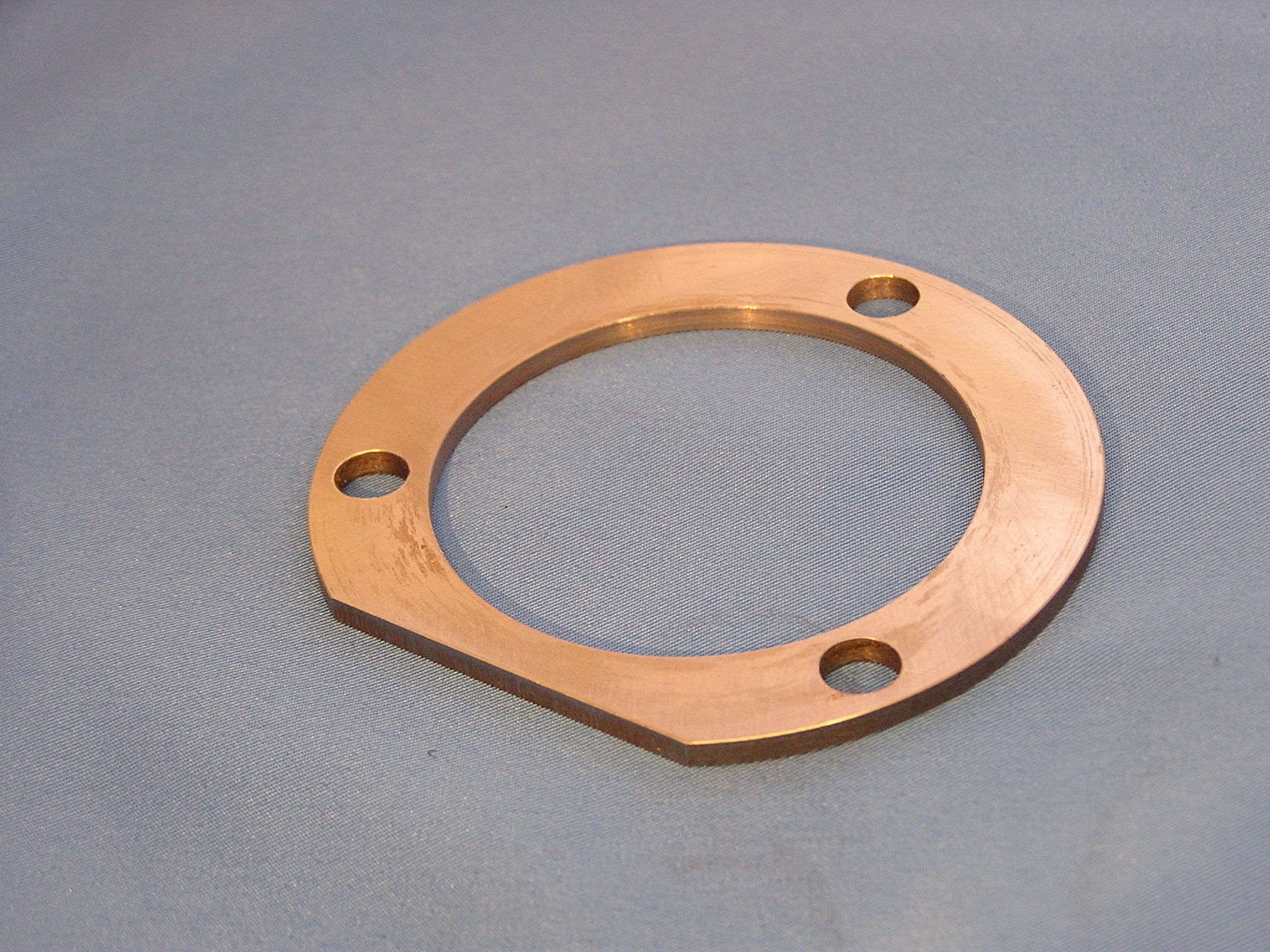

	10491	Spacer, Worm Box Thrust grind to fit	7 & 7A
	10515	Gear, Cutter Slide Pinion	6A3

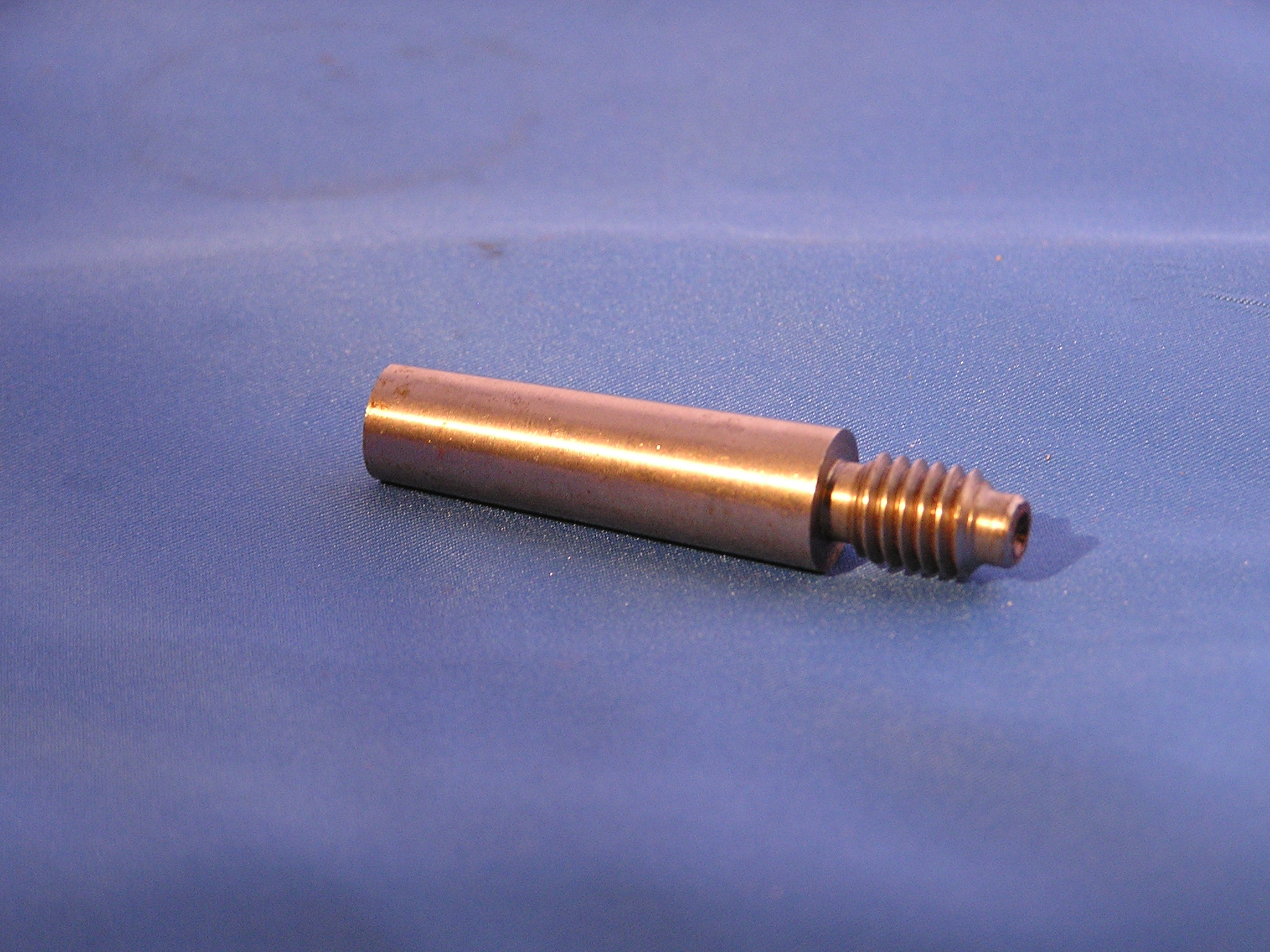

	10537	Pin, Worm Box Taper	various
	10545	Screw, Depth Feed	6A

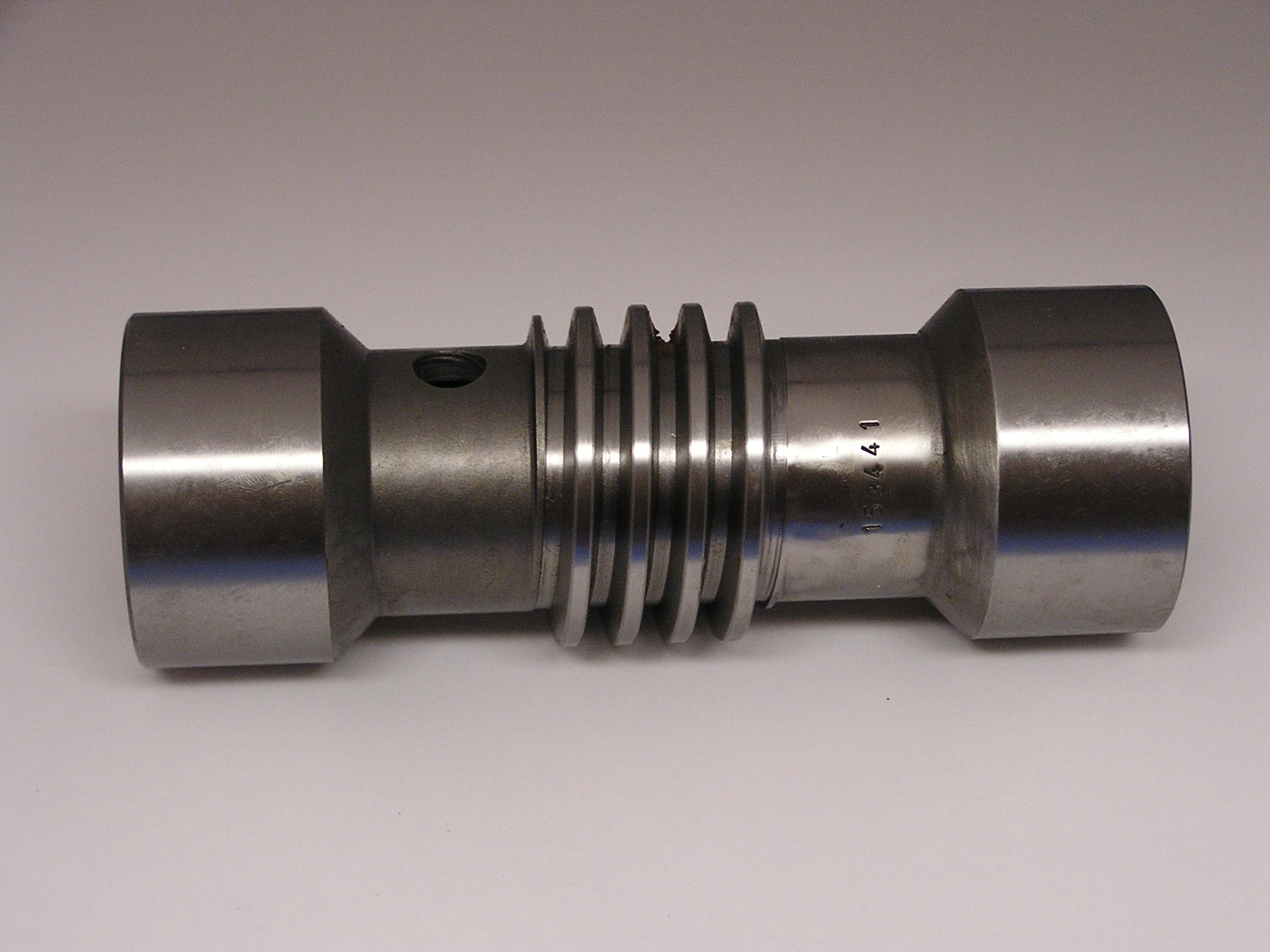

	10548	Worm, Indexing, 1-1/4 inch bore	6A, 7, 7A

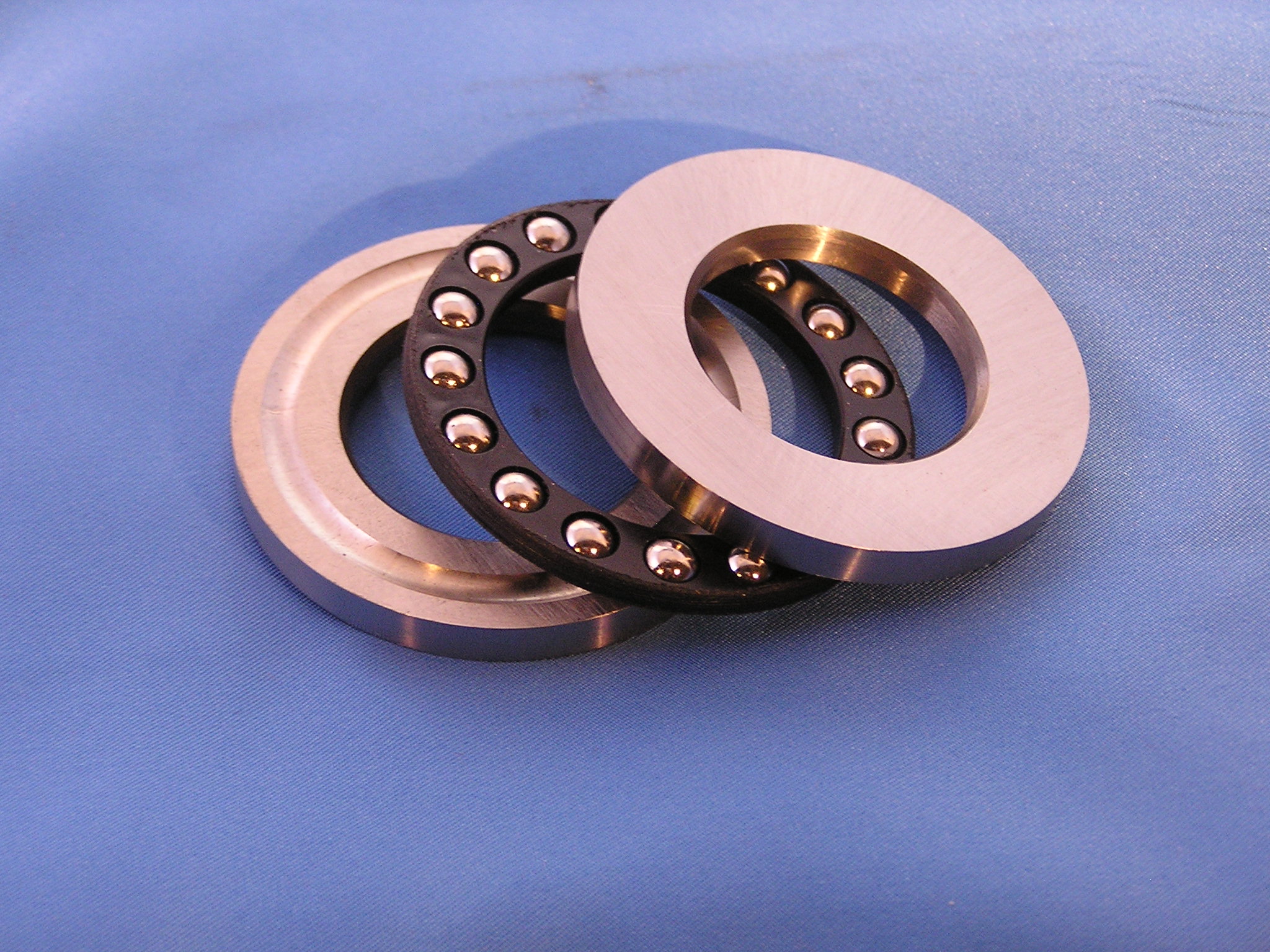

	10549A	Bearing, Worm Thrust requires 1/4" thick spacer	various
	10644	Spindle, Cutter	615A & 645A

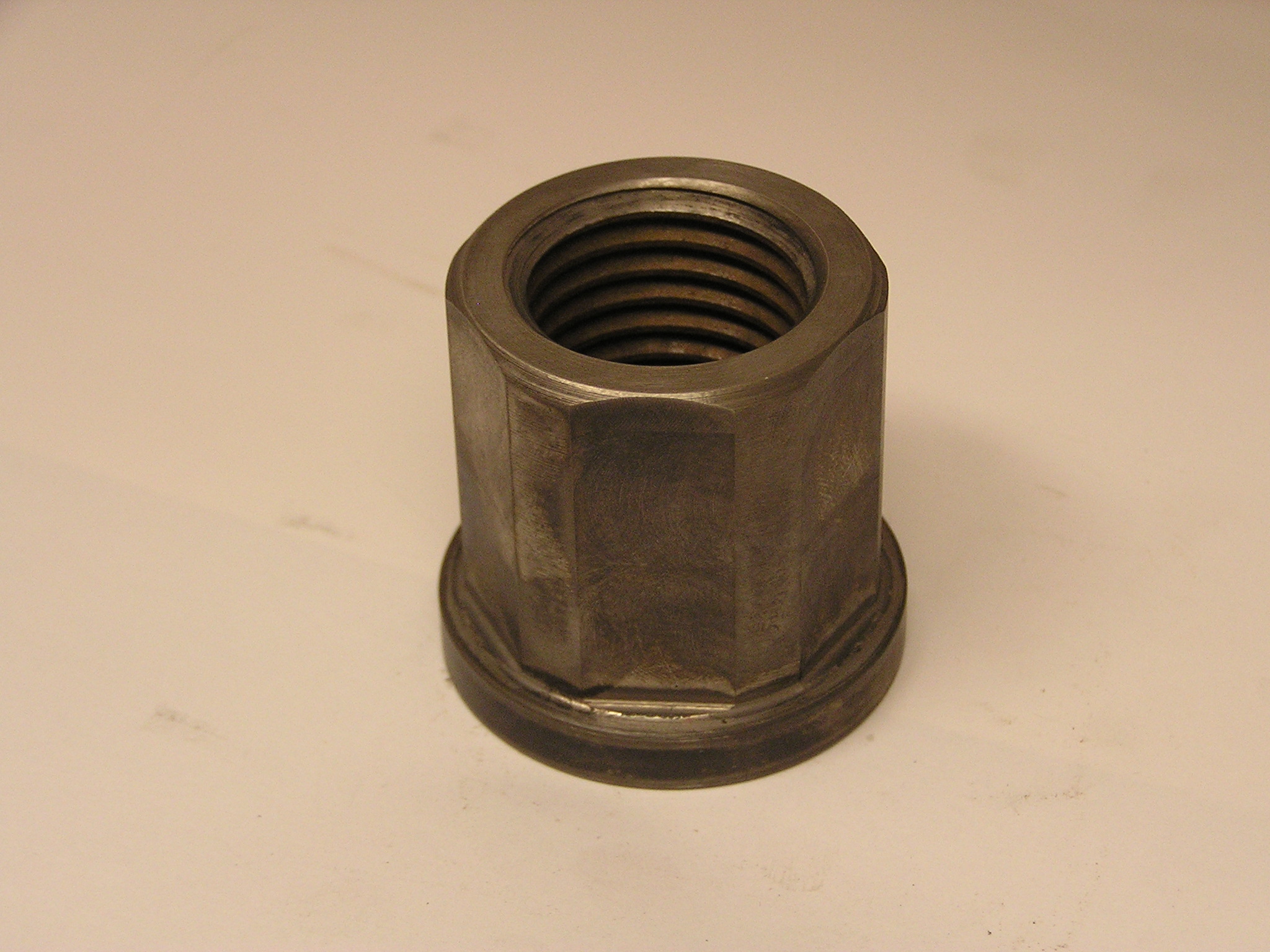

	10885	Nut, Guide	645A

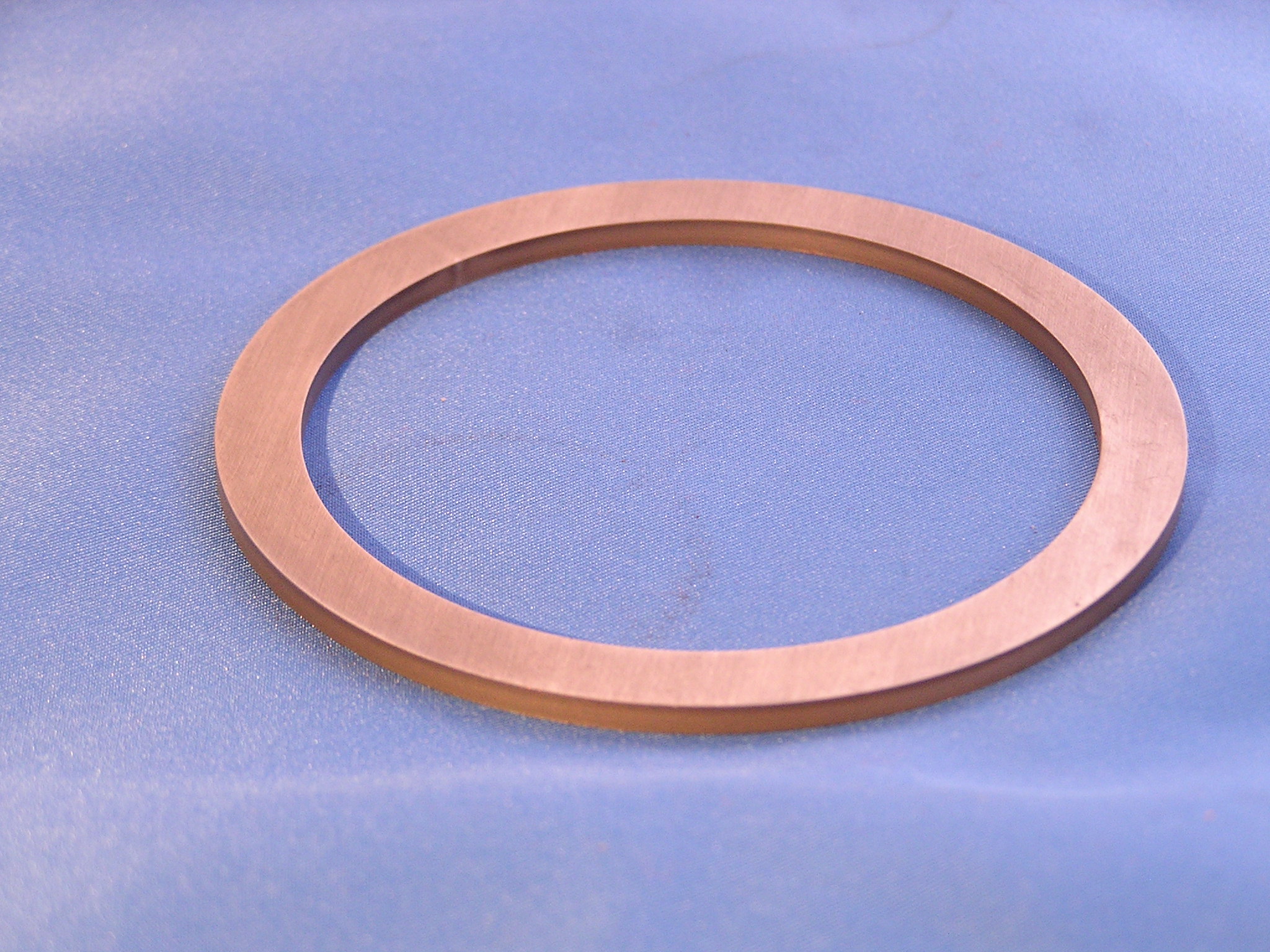

	16193	Plate, Roller Bearing Top	7 & 7A

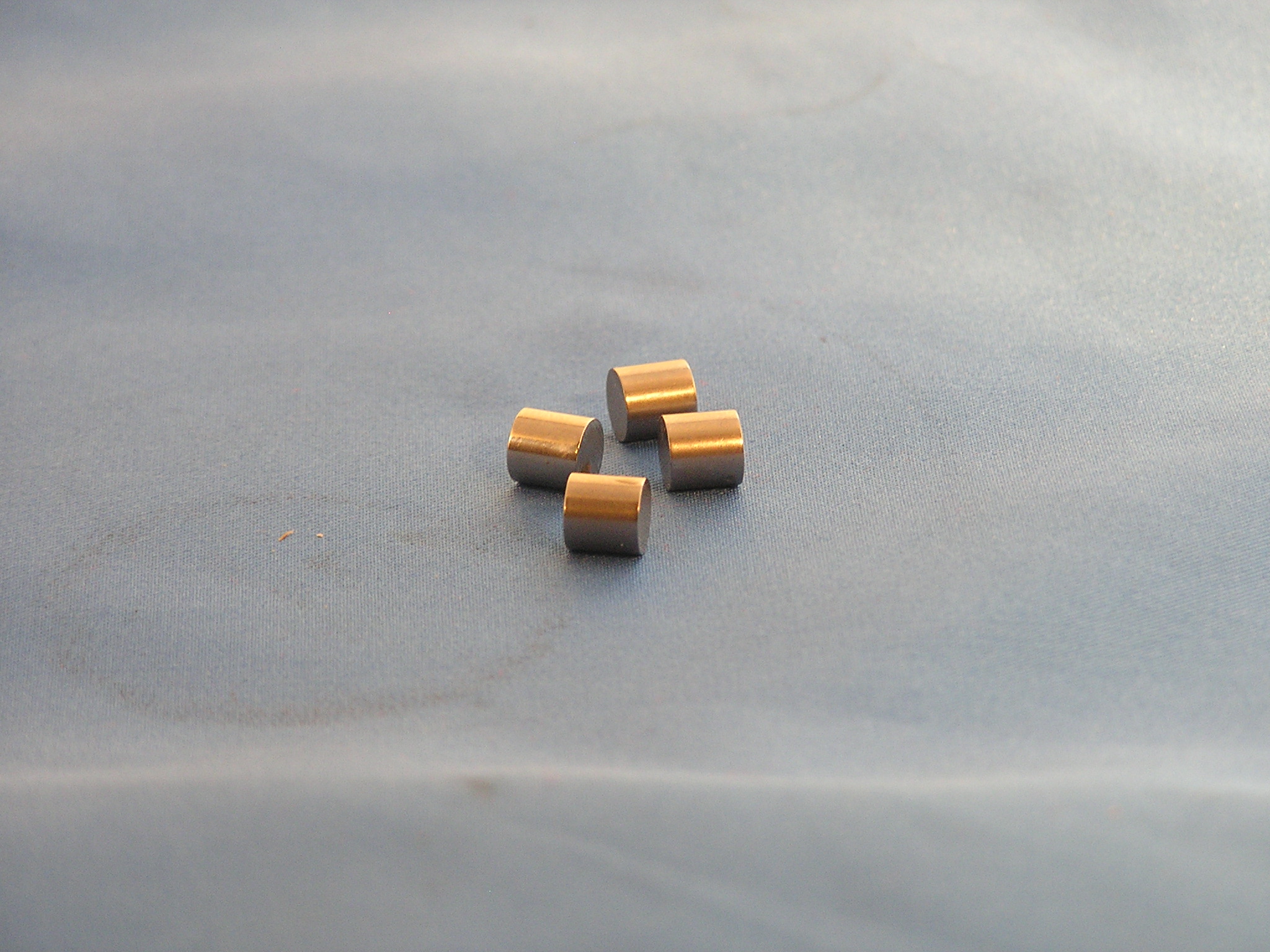

	16194	Roller, Bearing 41-piece kit	7 & 7A
	16870	Screw, Leveling	6A & 36

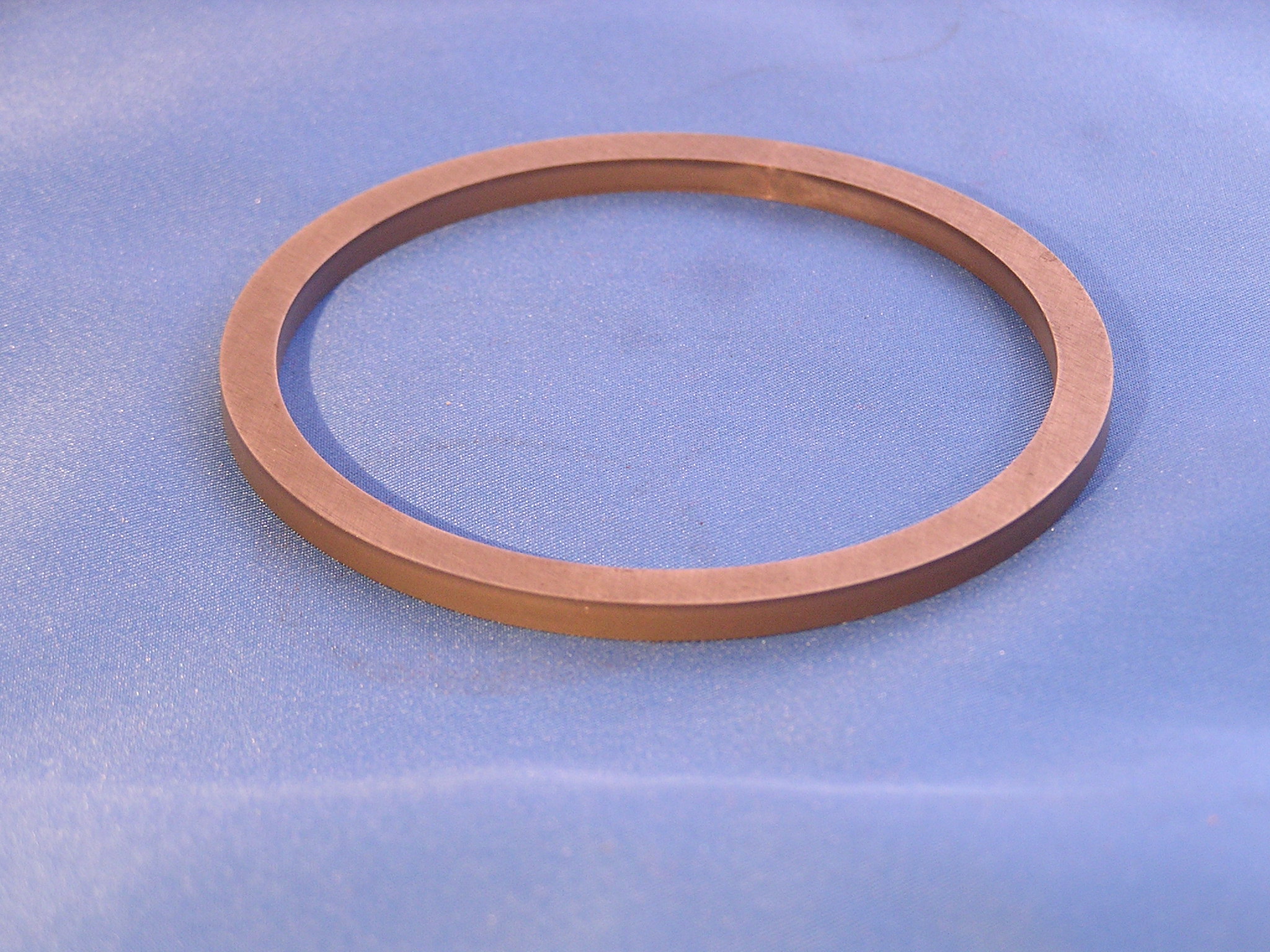

	17124	Plate, Roller Bearing Bottom	7 & 7A

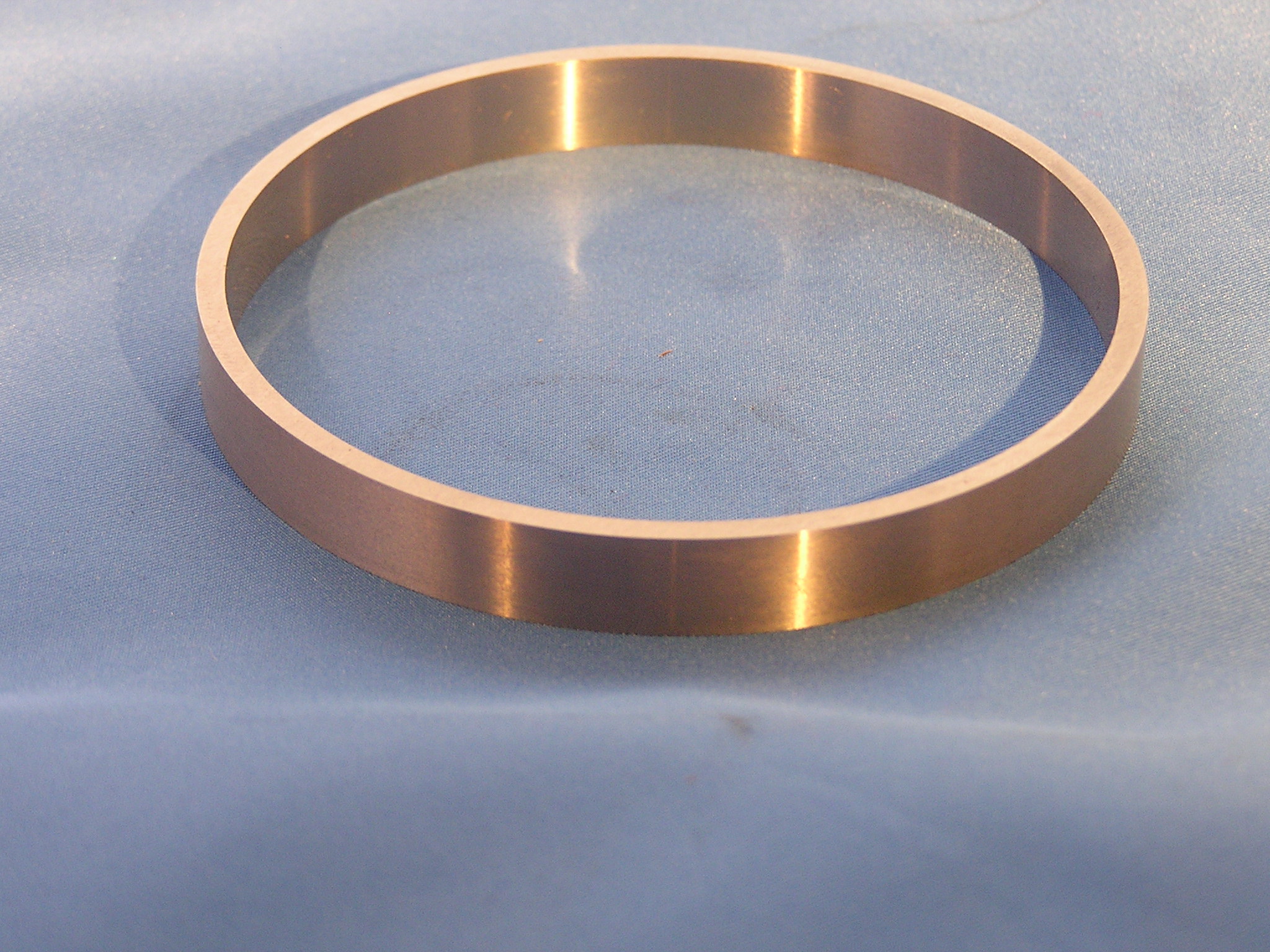

	17125	Race, Roller Bearing Outer	7 & 7A
	17240	Block, Steel Quill 7°	7 & 7A
	17241	Block, Bronze Quill 7°	7 & 7A
	17487	Valve, Coolant Check	7 & 6A
	17488	Strainer, Coolant Suction	7 & 6A
	18340	Spacer, Upper Worm Box Thrust grind to fit	36
	18356	Pin, Crank	36
	18357	Washer, Crank	36
	18359	Block, Stroke Adjustment Screw	36

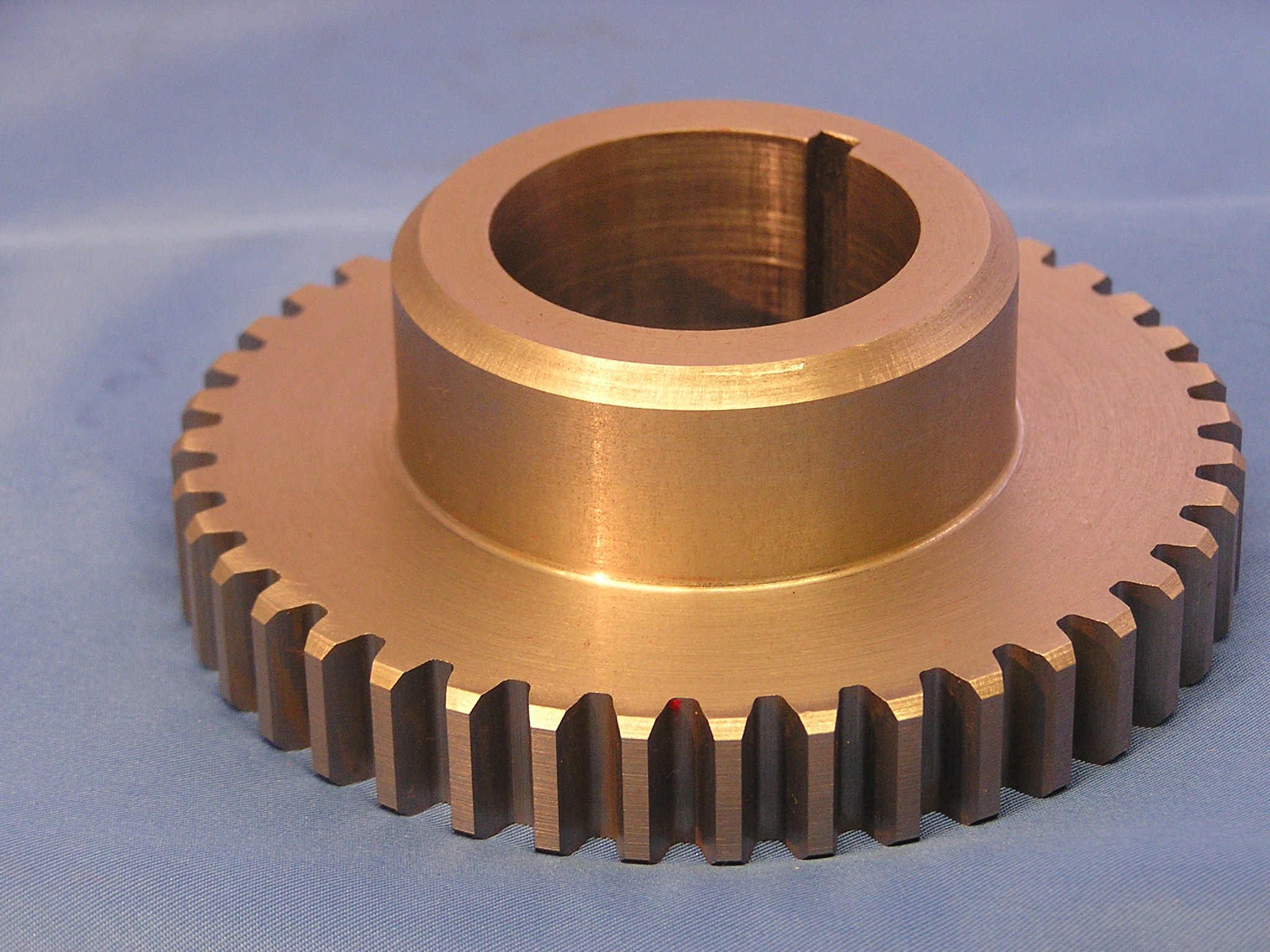

	19290	Gear, Ratchet	7 & 7A
	02 00 0953 6	O-Ring	10-2
	02 00 3199 6	O-Ring, qty 6 pkg	10-2
	02 00 3497 1	O-Ring, qty 2 pkg	10-2
	02 00 5339 1	O-Ring	10-2
	30 33 0001 1	Race, Spherical Thrust	10-2
	30 33 0004 1	Bearing, Upper Work Spindle precision class	10-2
	30 33 0012 1	Seal, Radial Lip	10-2
	30 33 0014 1	Race, Thrust 3/16" thickness, grind to fit	10-2
	30 33 0034 1	Seal, Radial Lip	10-2
	30 33 0039 1	Bearing, Lower Work Spindle precision class	10-2
	30 33 0249 1	Bearing, Drawn Cup	10-2
	30 33 0257 1	Bearing, Worm Thrust 1/8" thickness	10-2
	30 33 0258 1	Race, Thrust 3/32" thickness	10-2
	30 33 0266 1	Bearing, Spherical Thrust	10-2
	36 01 0441 6	O-Ring	10-2
	50 33 0068 3	Sleeve, Relieving Cam	10-2
	60 07 0544 1	Pin, Spindle Bushing	various
	60 33 0502 2	Roll, Relieving Cam 5-29/32" length	10-2
	60 33 0885 2	Roll, Relieving Cam 6-19/32" length	10-2

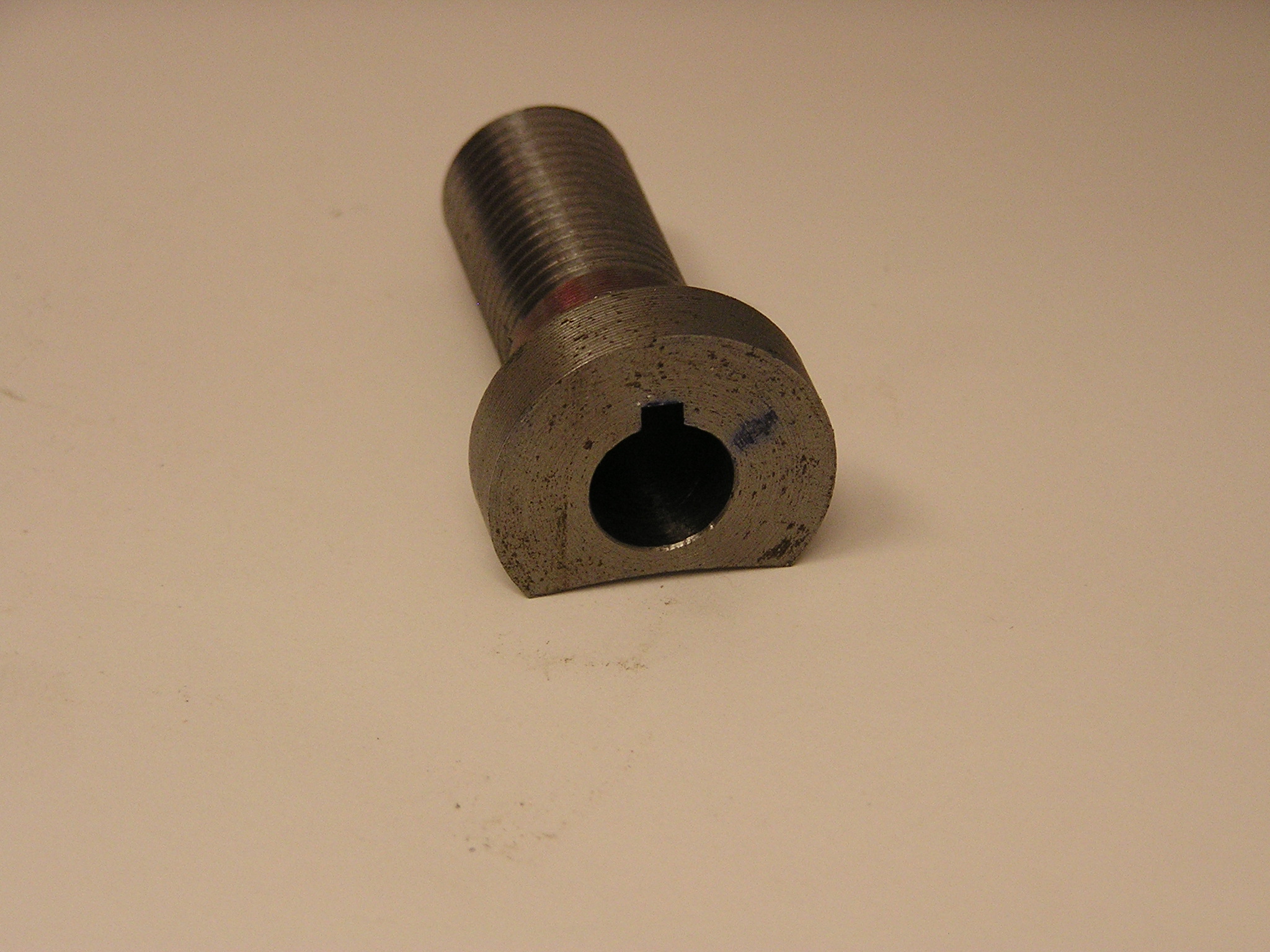

	C-10-19	Screw, 2nd Cut Depth	6A

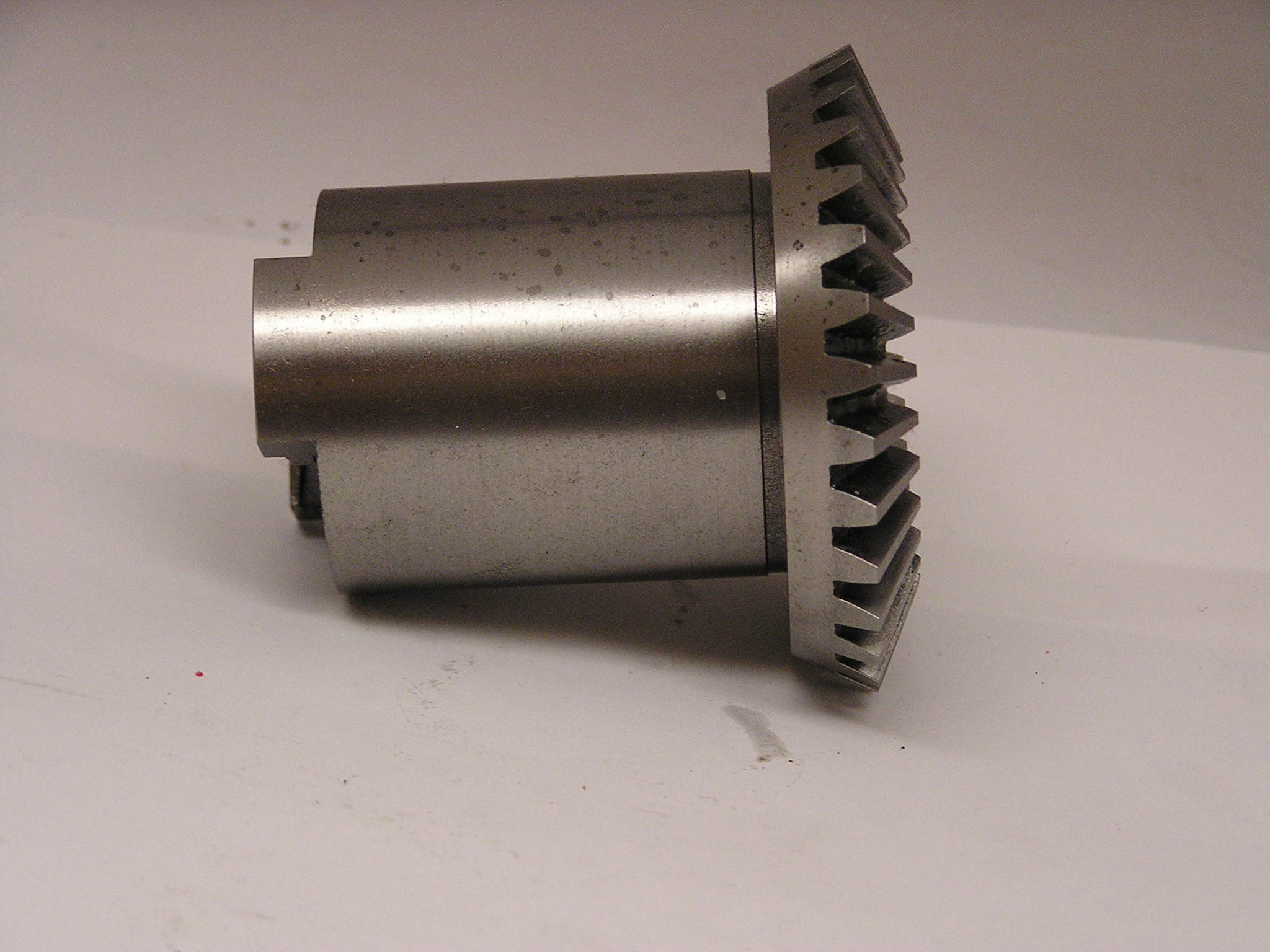

	G-379	Half Nut, With Gear	6A
	G-380	Half Nut, With Thrust Bearing	6A

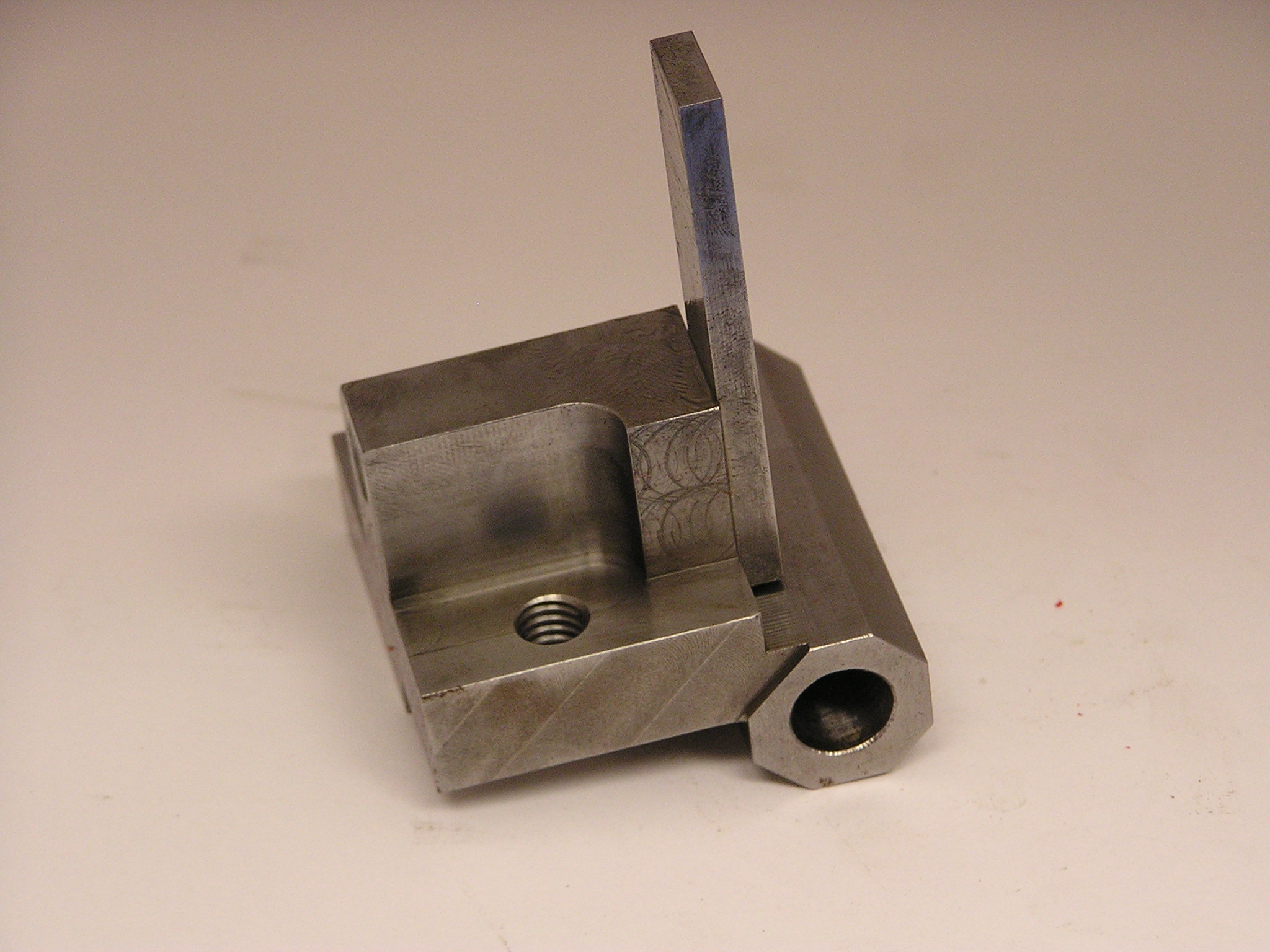

	G-409	Bell Crank, Infeed	6A
	G-536	Bushing, Upper Spindle	615A & 645A
	G-537	Bushing, Lower Spindle	615A & 645A
	G-3205	Hub, Clutch	6A

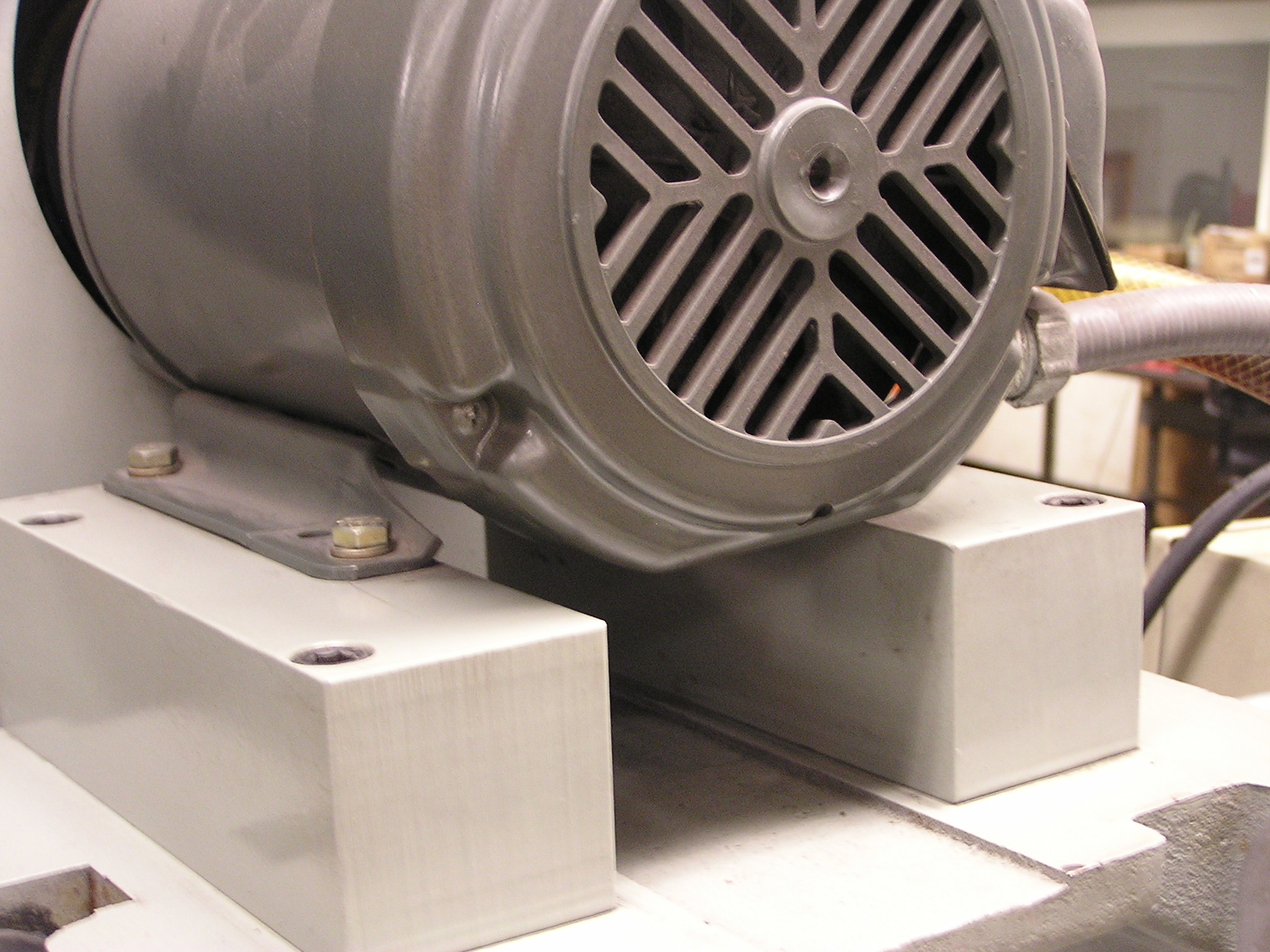

	G-3275	Motor Adapter, 2" ht, for 145T size on 224 pattern	7

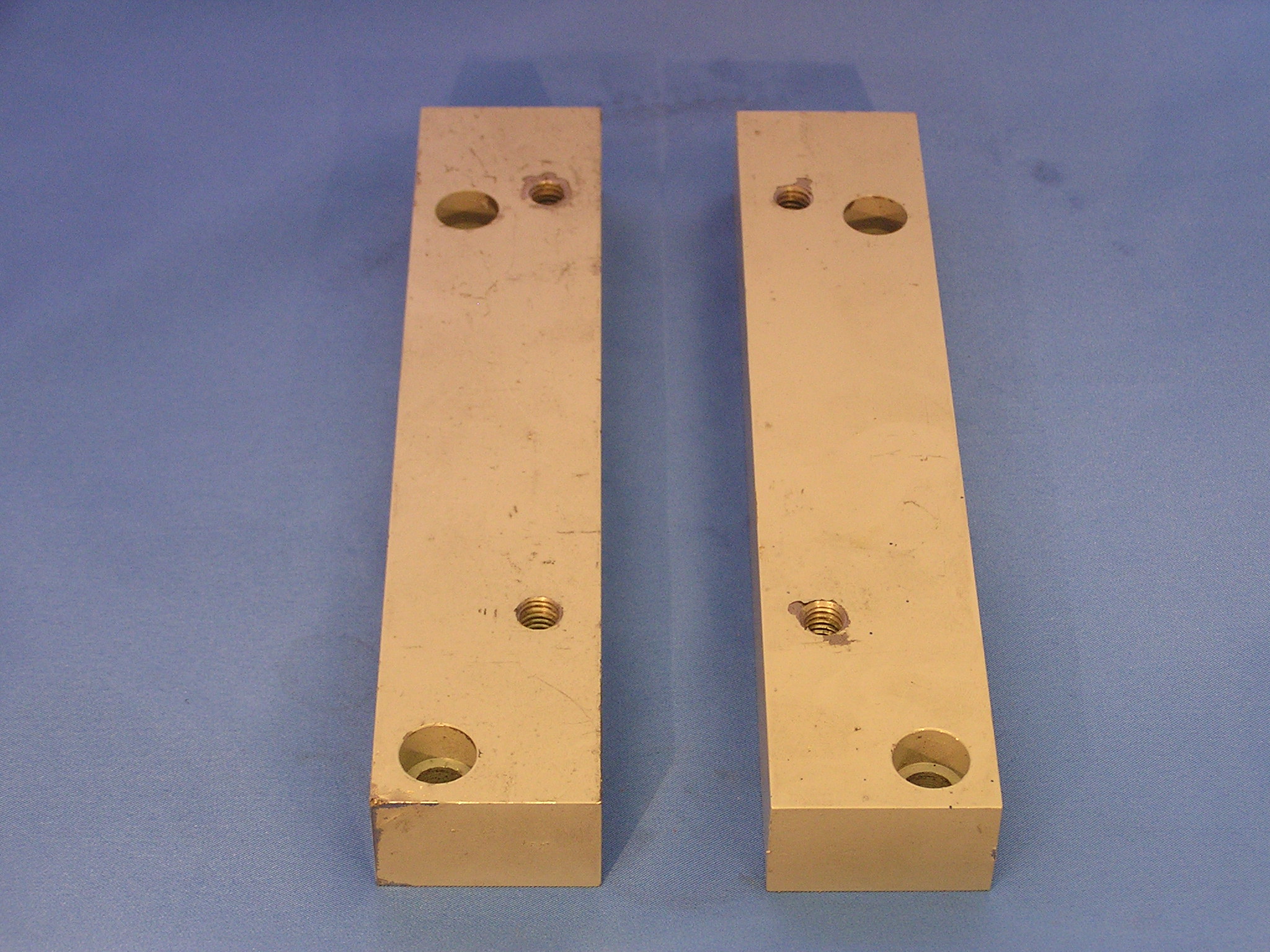

	G-3275A	Motor Adapter, 1" ht, for 182T size on 224 pattern	7A

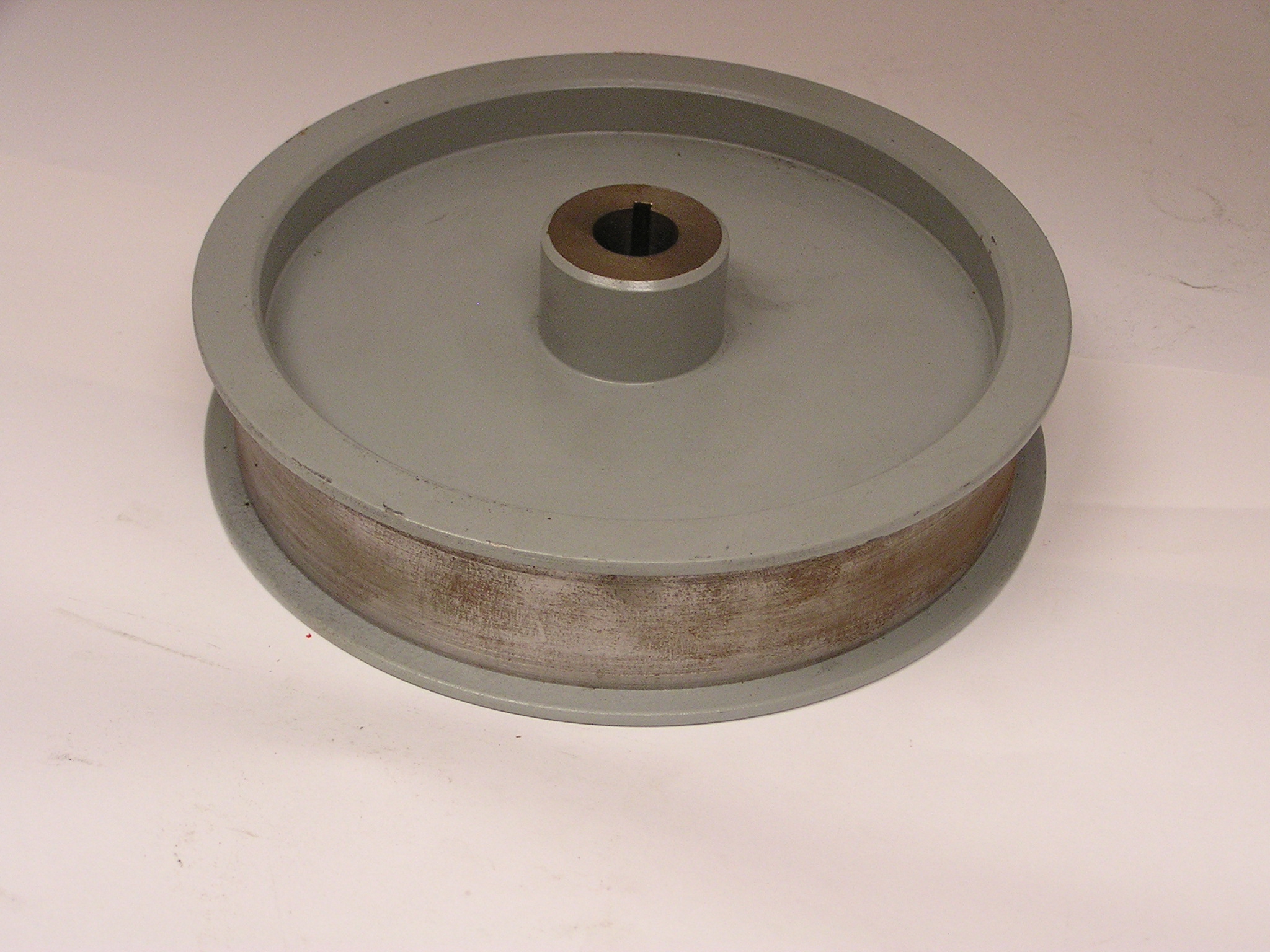

	G-4712	Pulley, Coolant Pump Driven	6A
	G-6007	Yoke, Rack	6A
	G-6026	Spacer, Lower Worm Box, grind to fit	6A
	G-6032	Quadrant, Arm Index Gears	6A

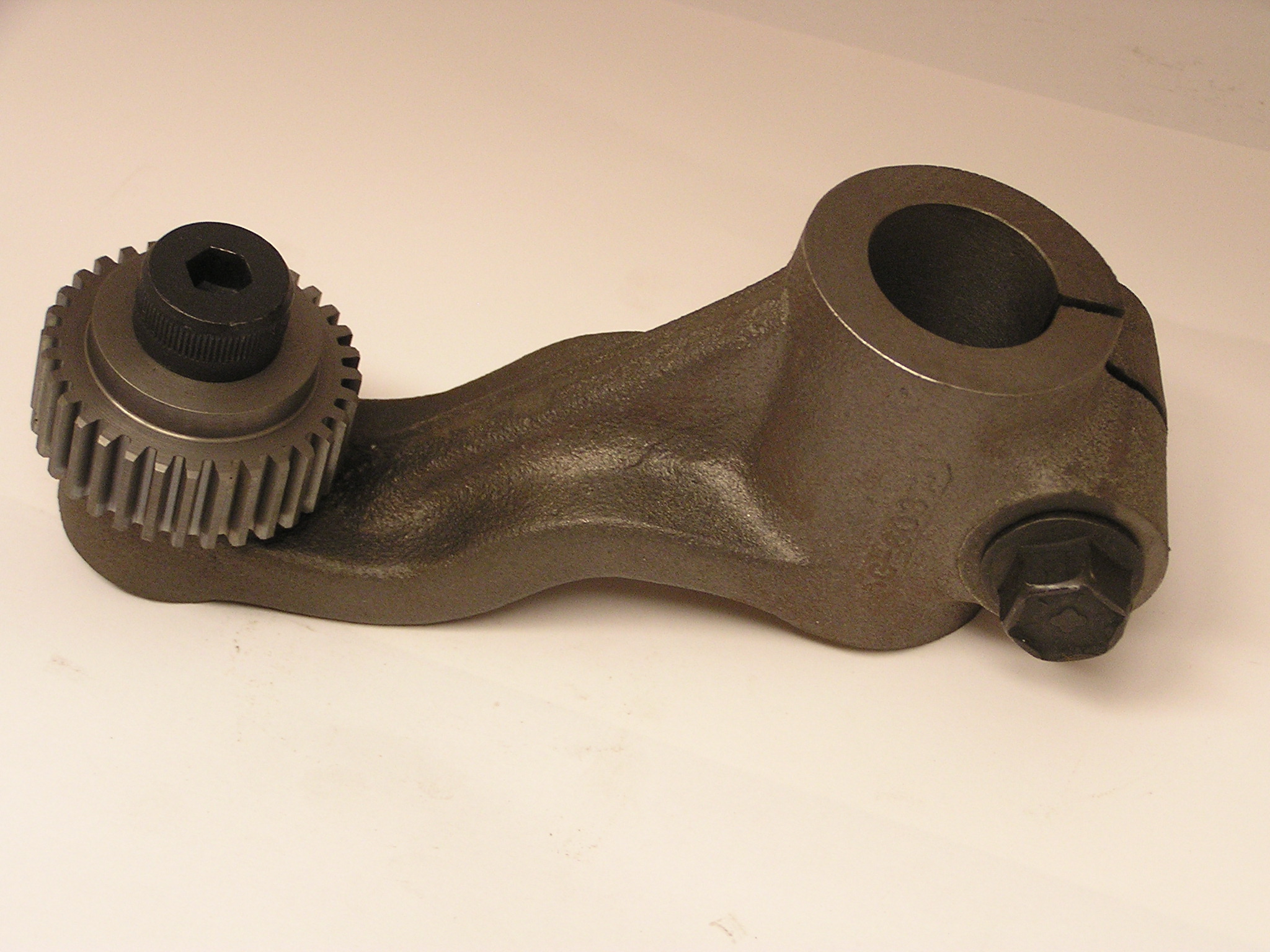

	G-6037	Quadrant, Internal Arm with Gear	6A

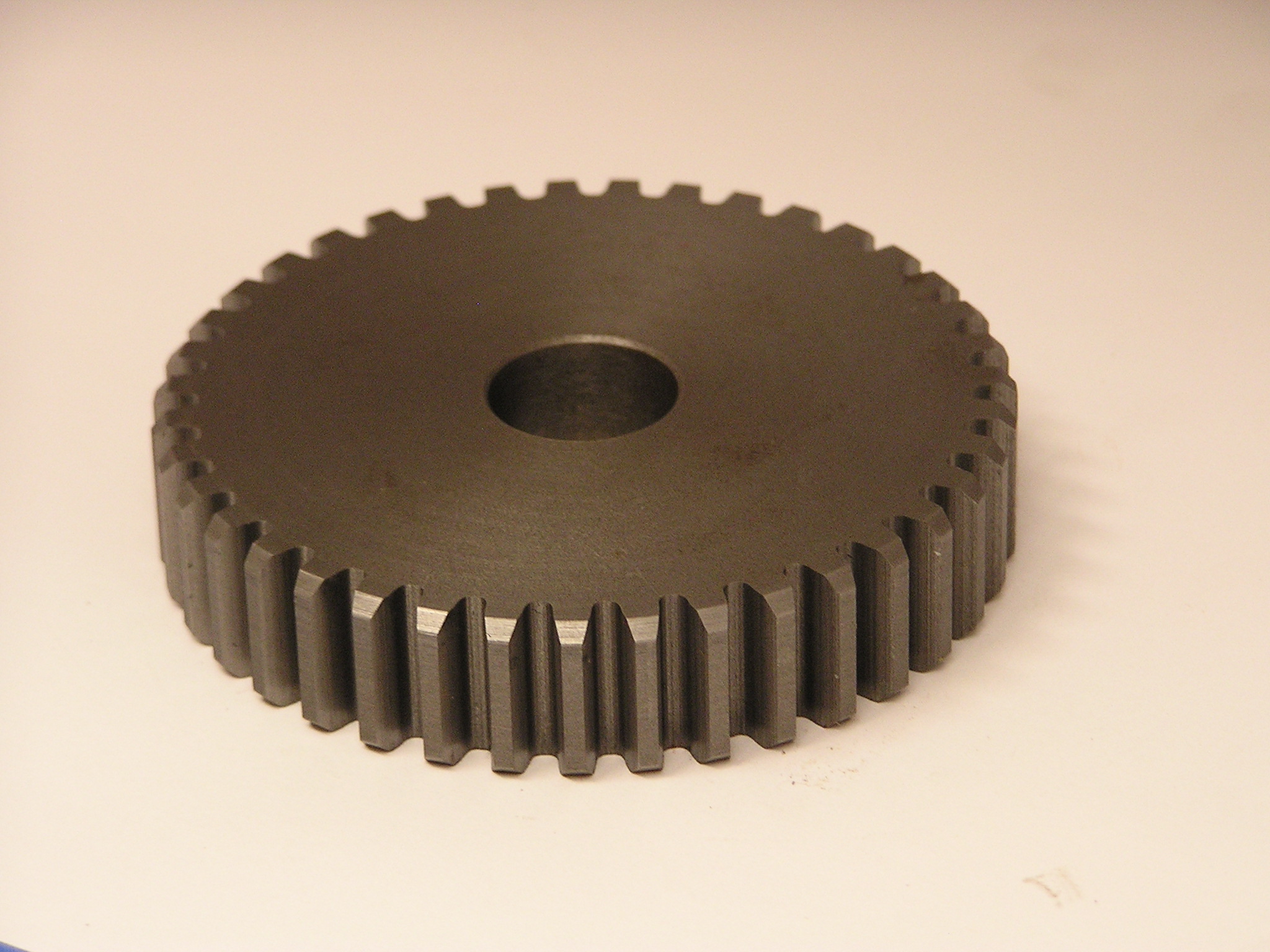

	G-6067	Gear, 39-Tooth Idler	6A
	G-6099	Gear, 36-42 ToothTandem	6A
	G-6112	Lever, Apron Locking	6A
	G-6120	Spacer, Apron Lock Housing, grind to fit	6A

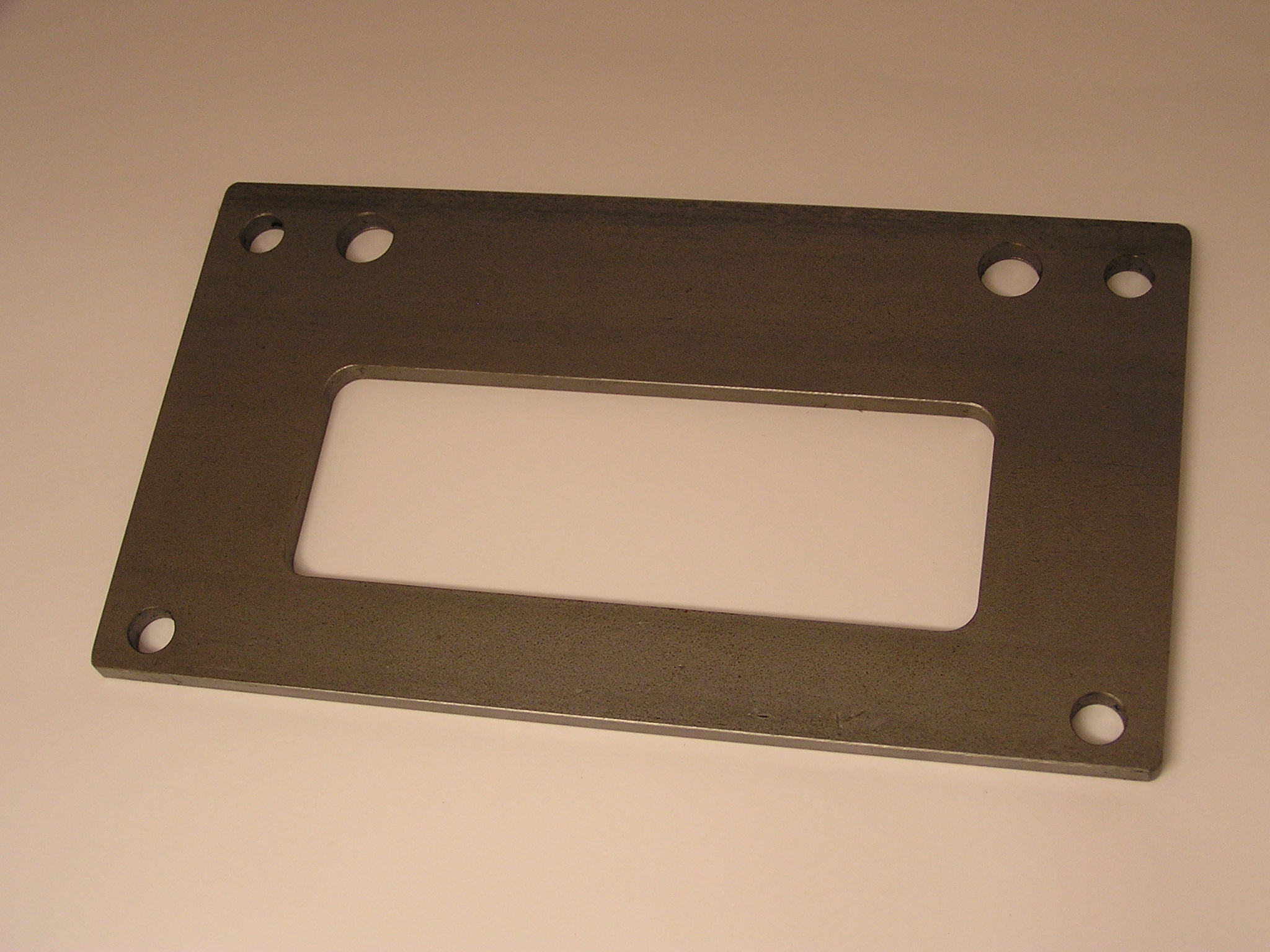

	G-6127	Spacer, Upper Worm Box, grind to fit	6A

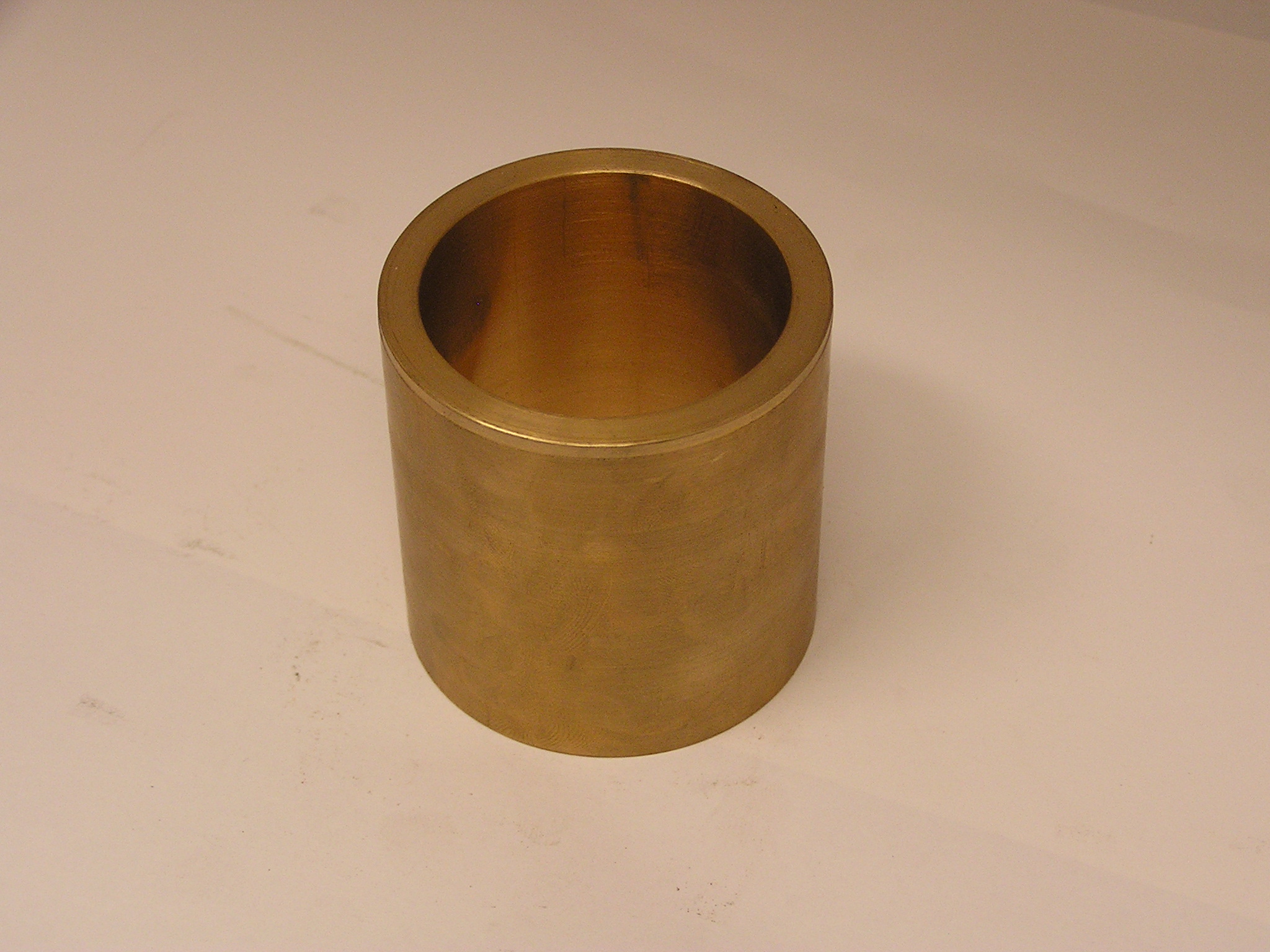

	G-6143	Bushing, Right Side Saddle	6A

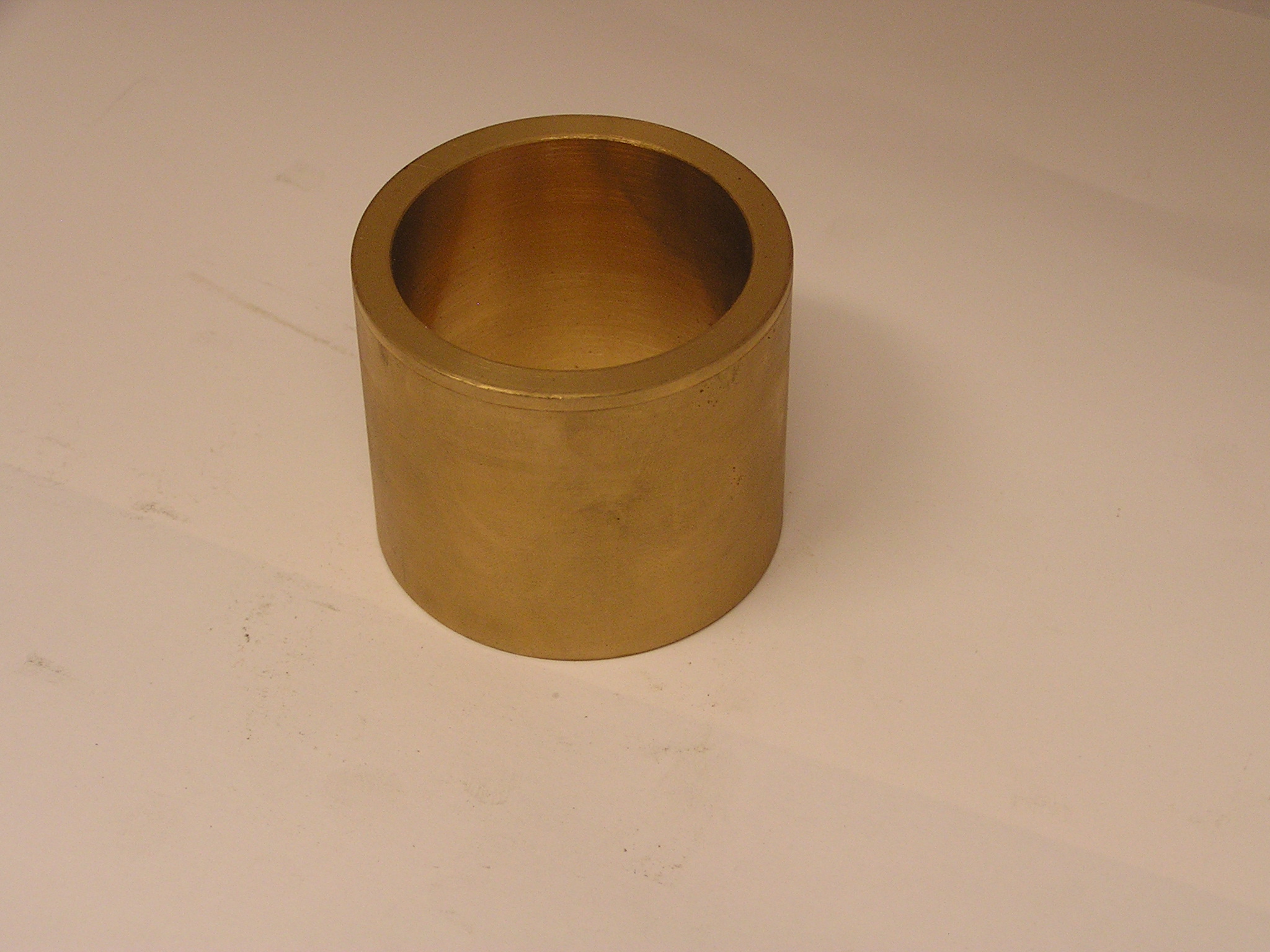

	G-6144	Bushing, Left Side Saddle	6A

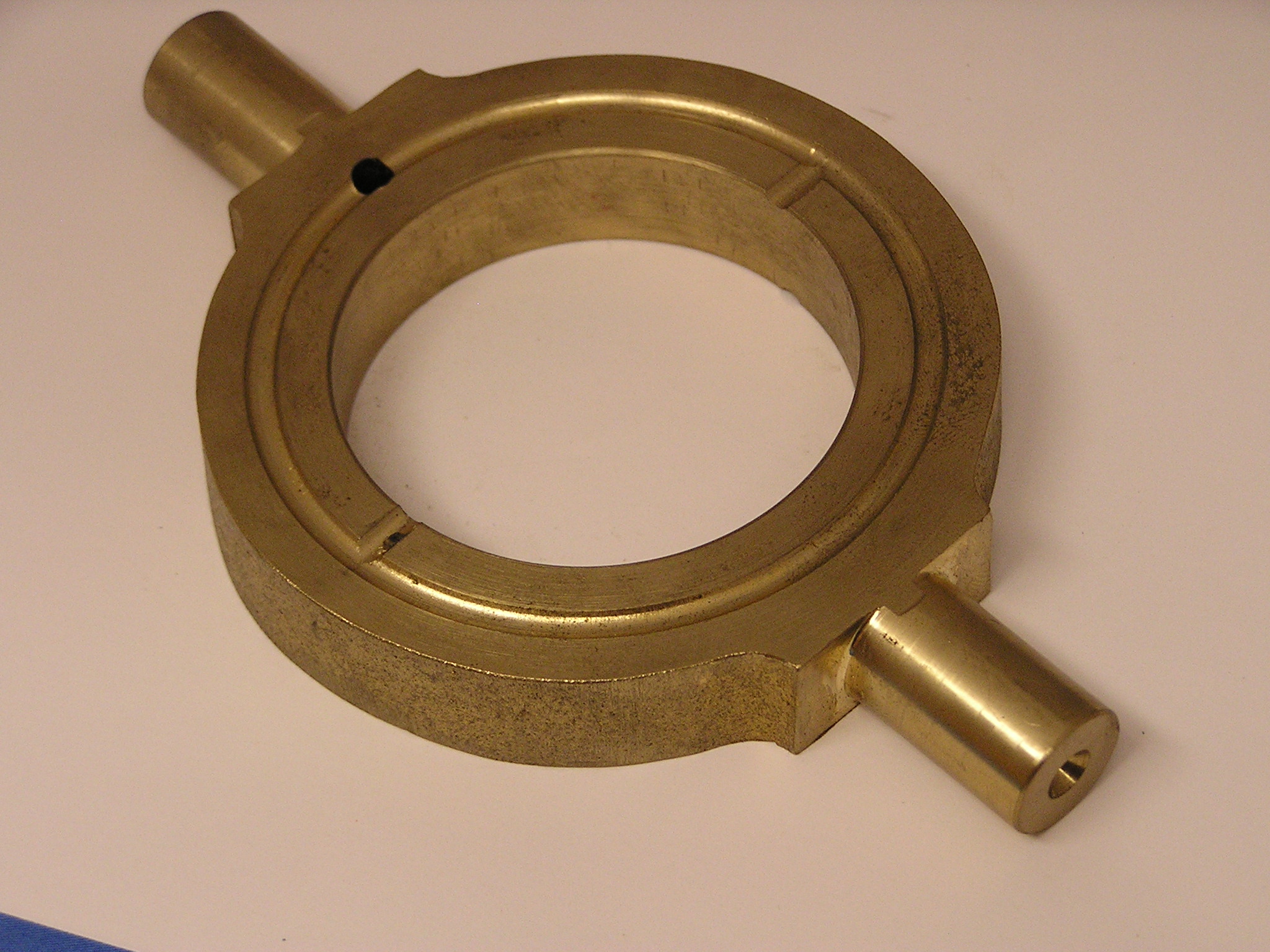

	G-6227	Shoe, Bronze Throwout	6A
	G-6238	Lever, Cycle Stop	6A

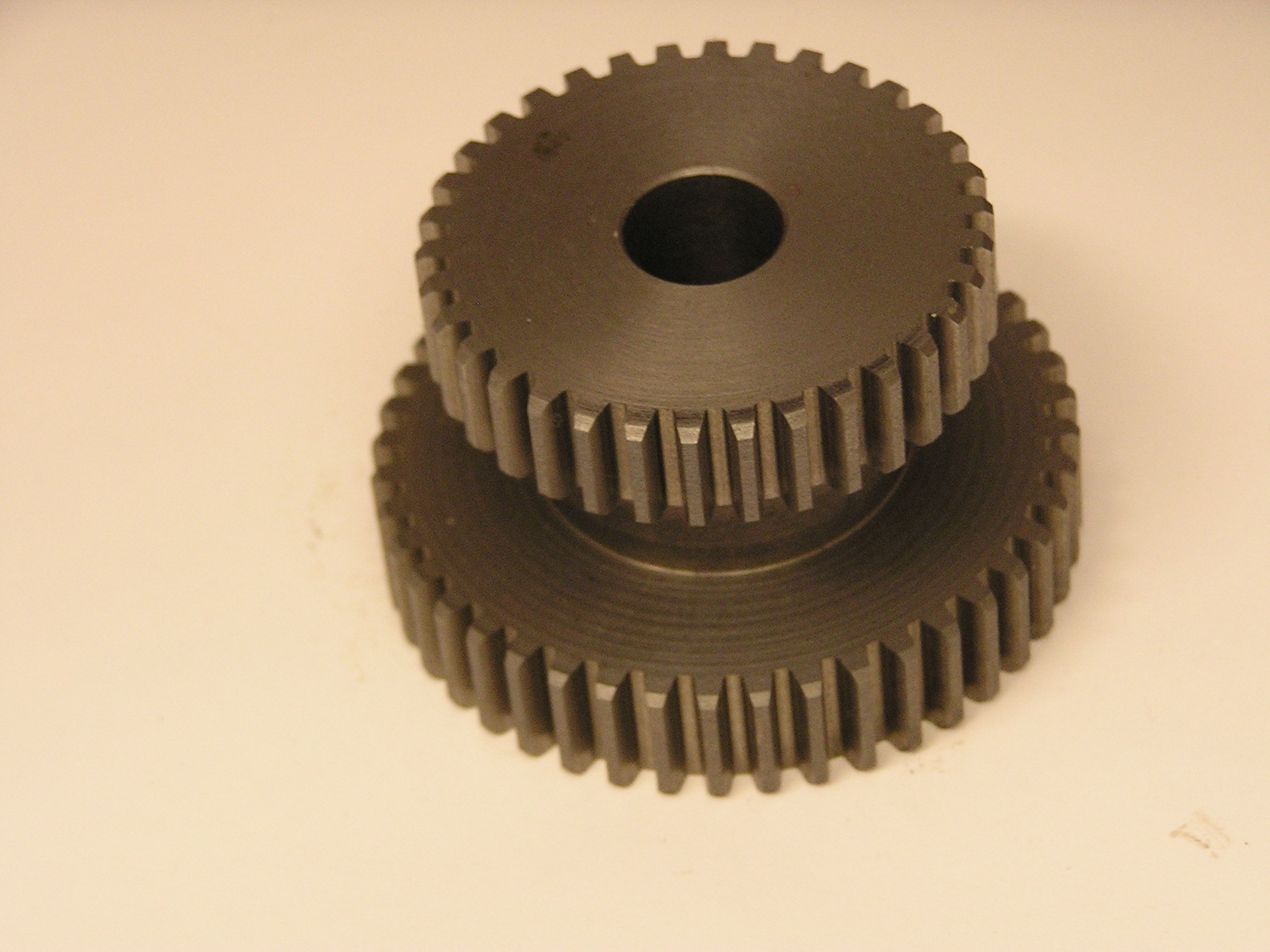

	G-6241	Gear, Tandem Timing	6A

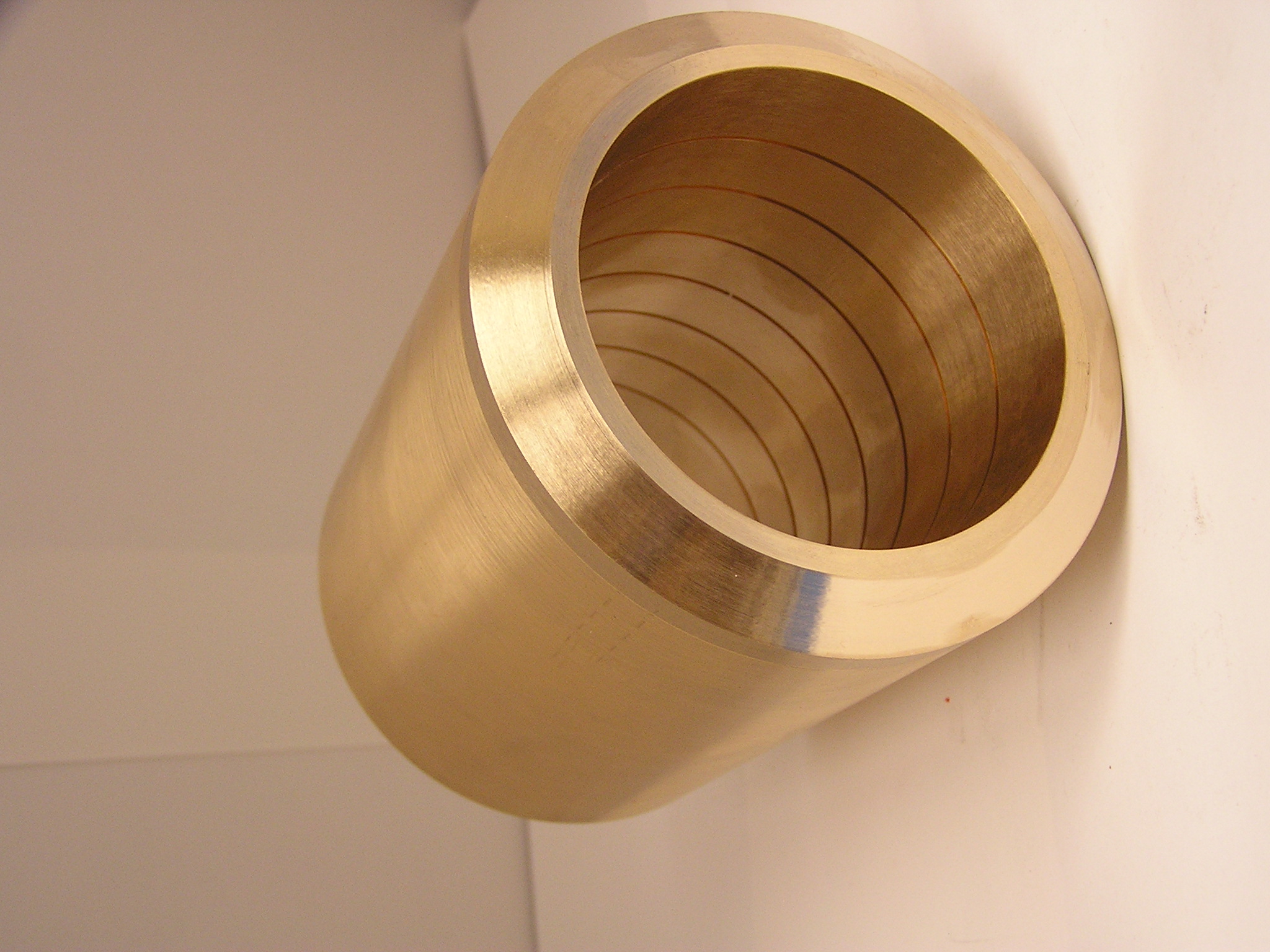

	G-6252	Bushing, 3-1/8" Cutter Spindle, hone to fit	6A3

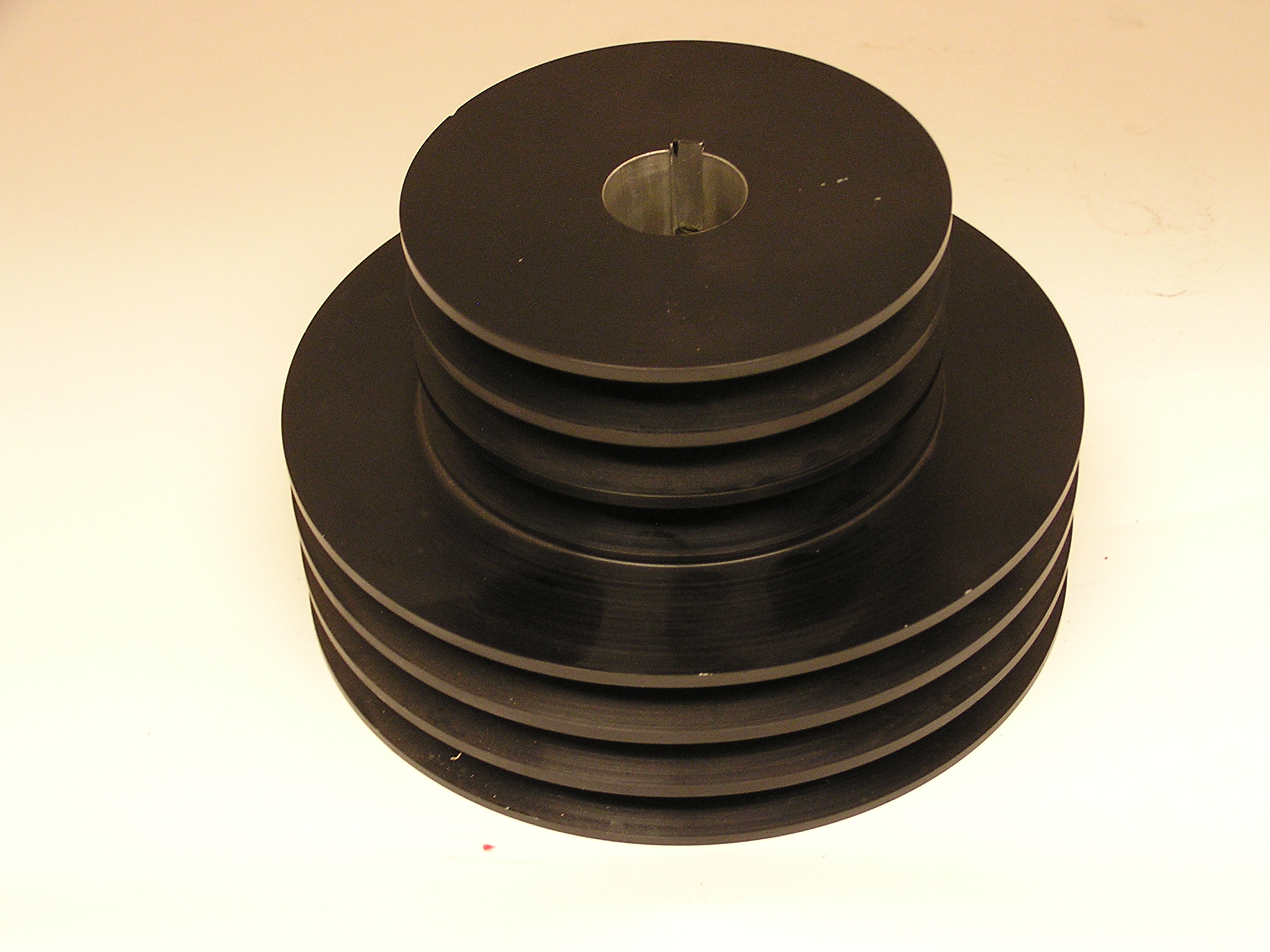

	G-6262	Sheave, Drive Step for 182T size motor	6A
	G-6555	Clutch, Face	6A
	G-7100	Bushing, 2-1/4" dia Cutter Spindle, hone to fit	7
	G-7103	Pawl, Depth Feed	7 & 7A
	G-7106	Bushing, Operating Arm, drill in place	7 & 7A

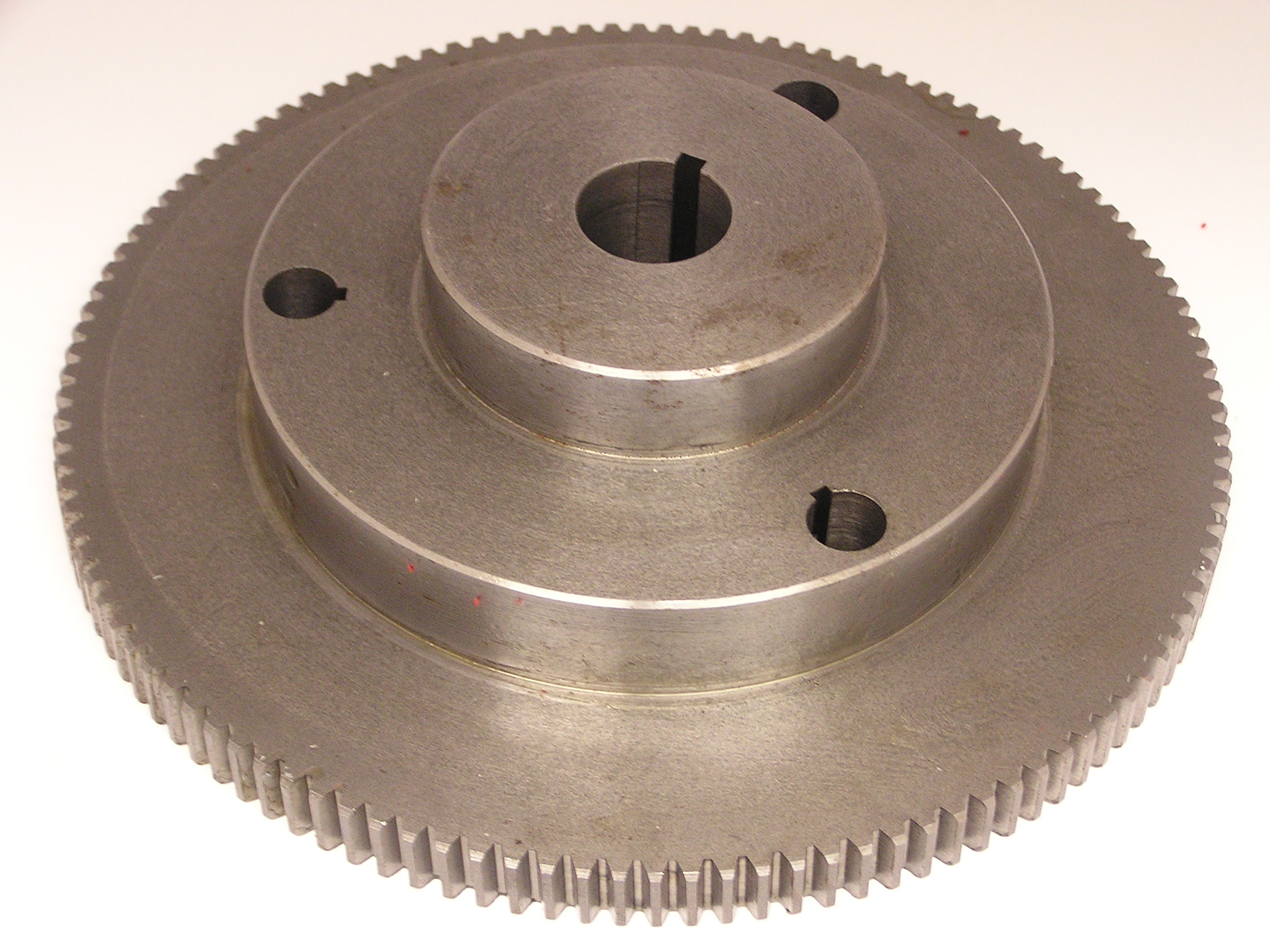

	G-7112	Gear, Depth Feed	7 & 7A

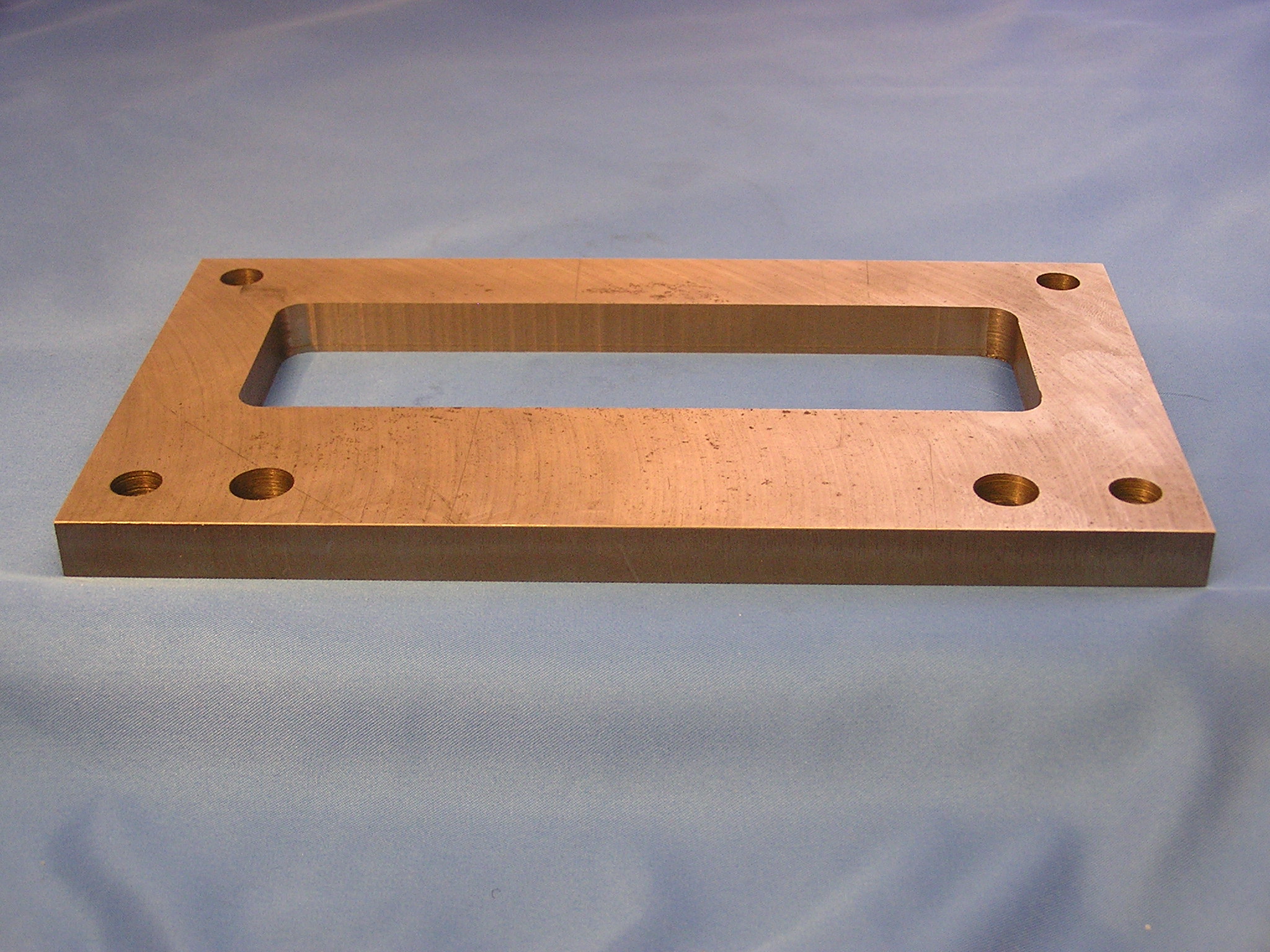

	G-7126	Spacer Upper Worm Box, grind to fit	7 & 7A

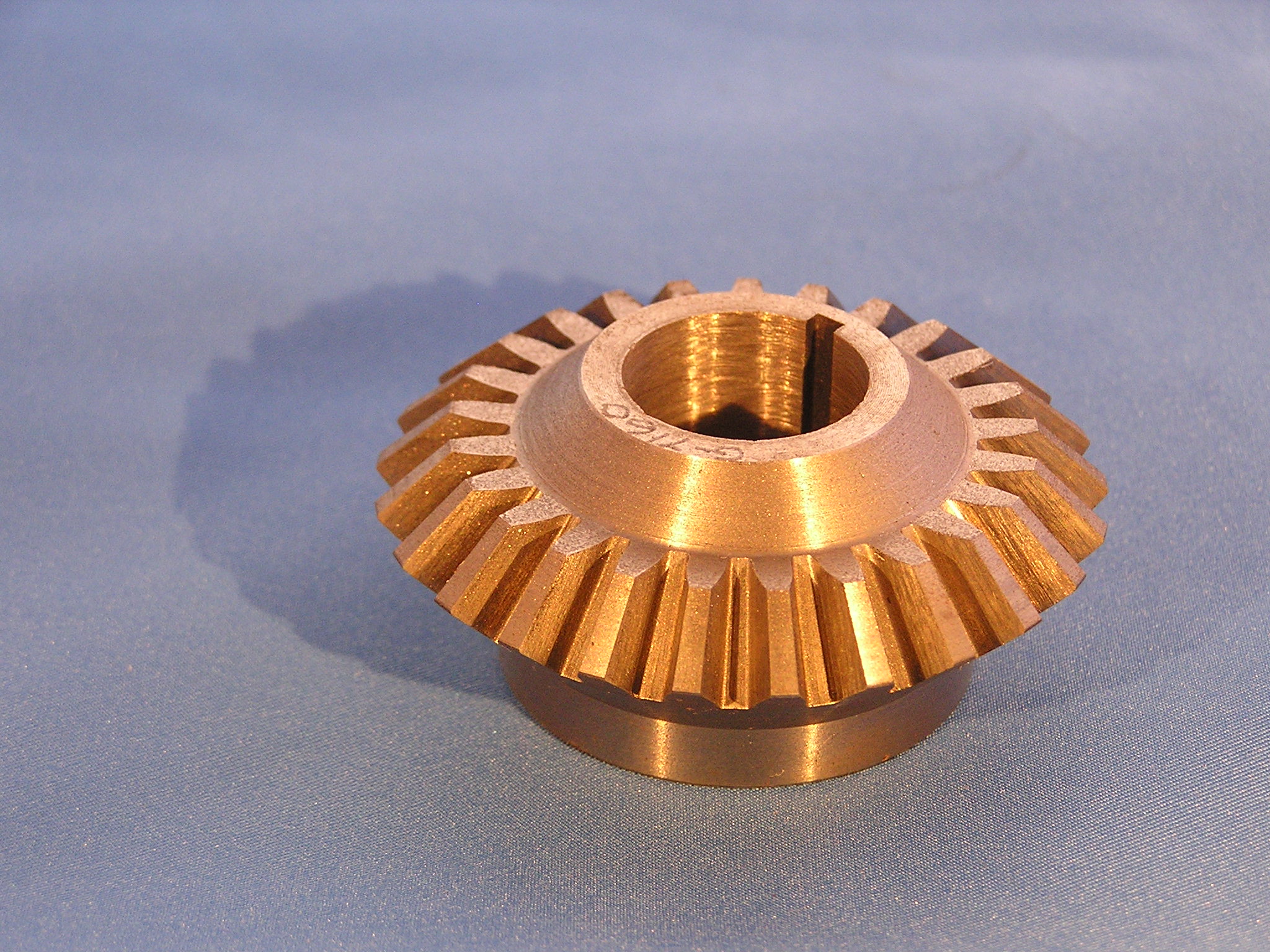

	G-7160	Gear, 25-Tooth Miter 7/8" ID	7 & 7A

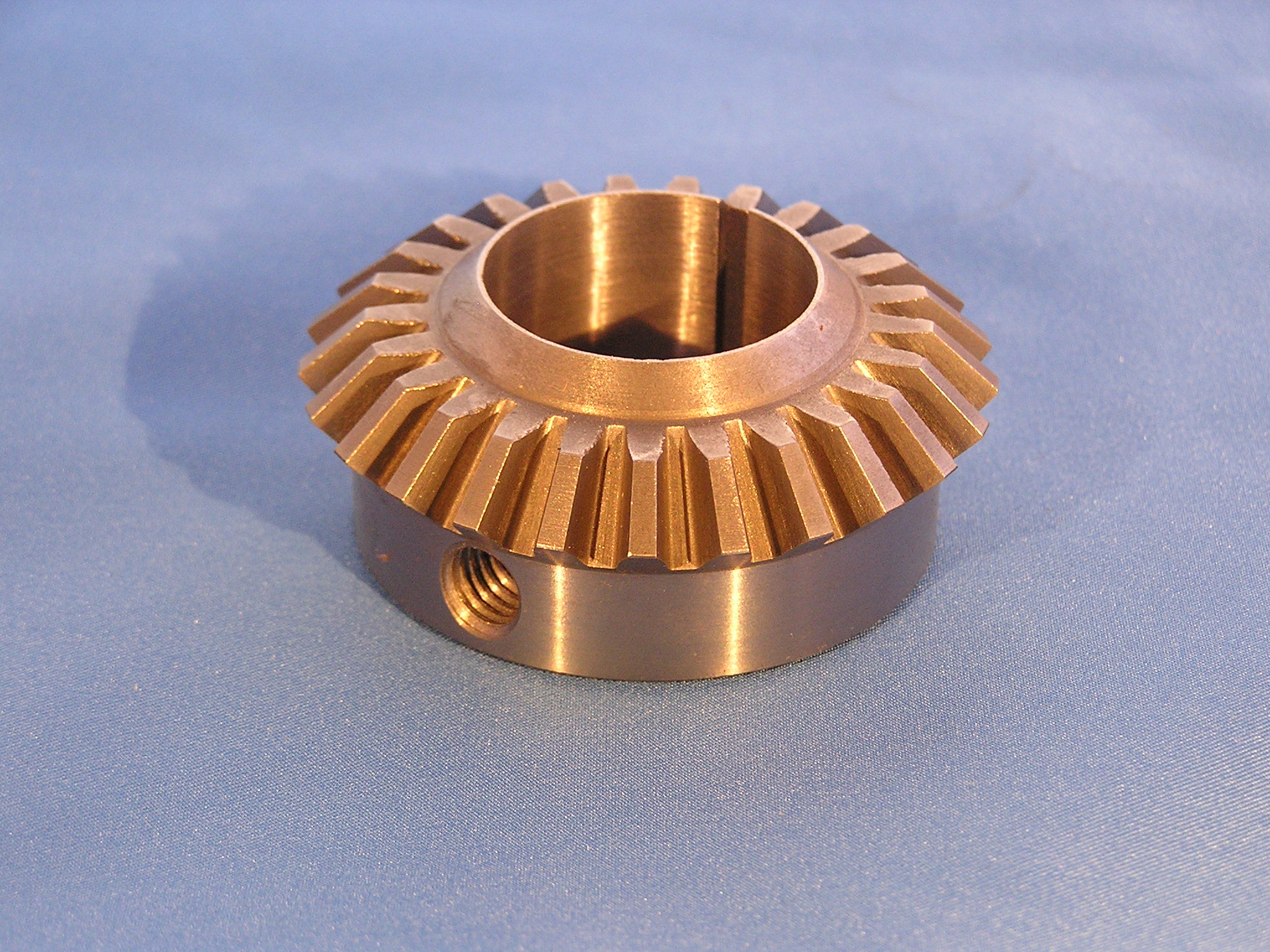

	G-7179	Gear, 25-Tooth Miter 1-1/4" ID	7 & 7A

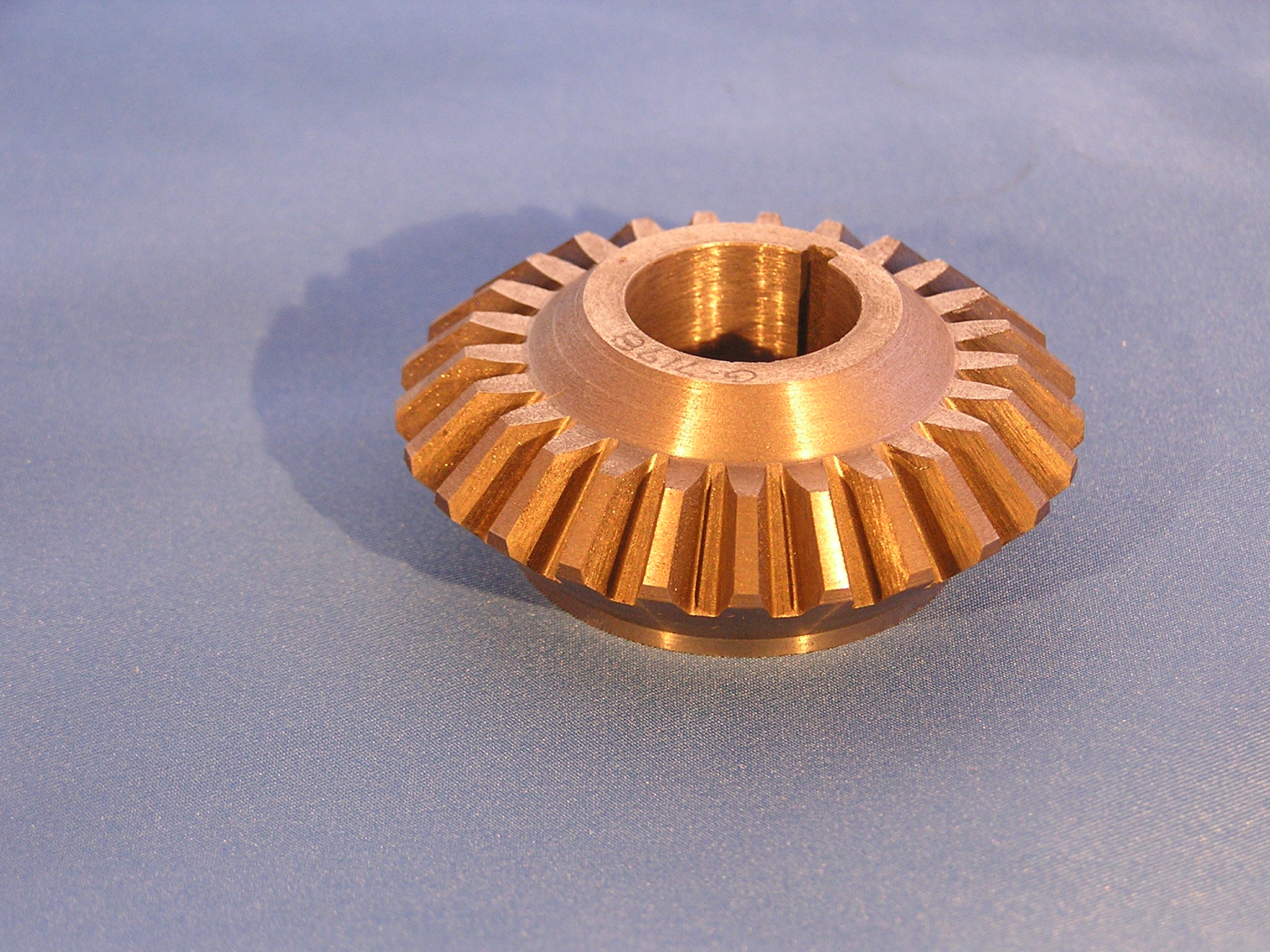

	G-7198	Gear, 25-Tooth Miter 7/8" ID	7 & 7A
	G-7204	Block, Bronze Quill 0°	7 & 7A

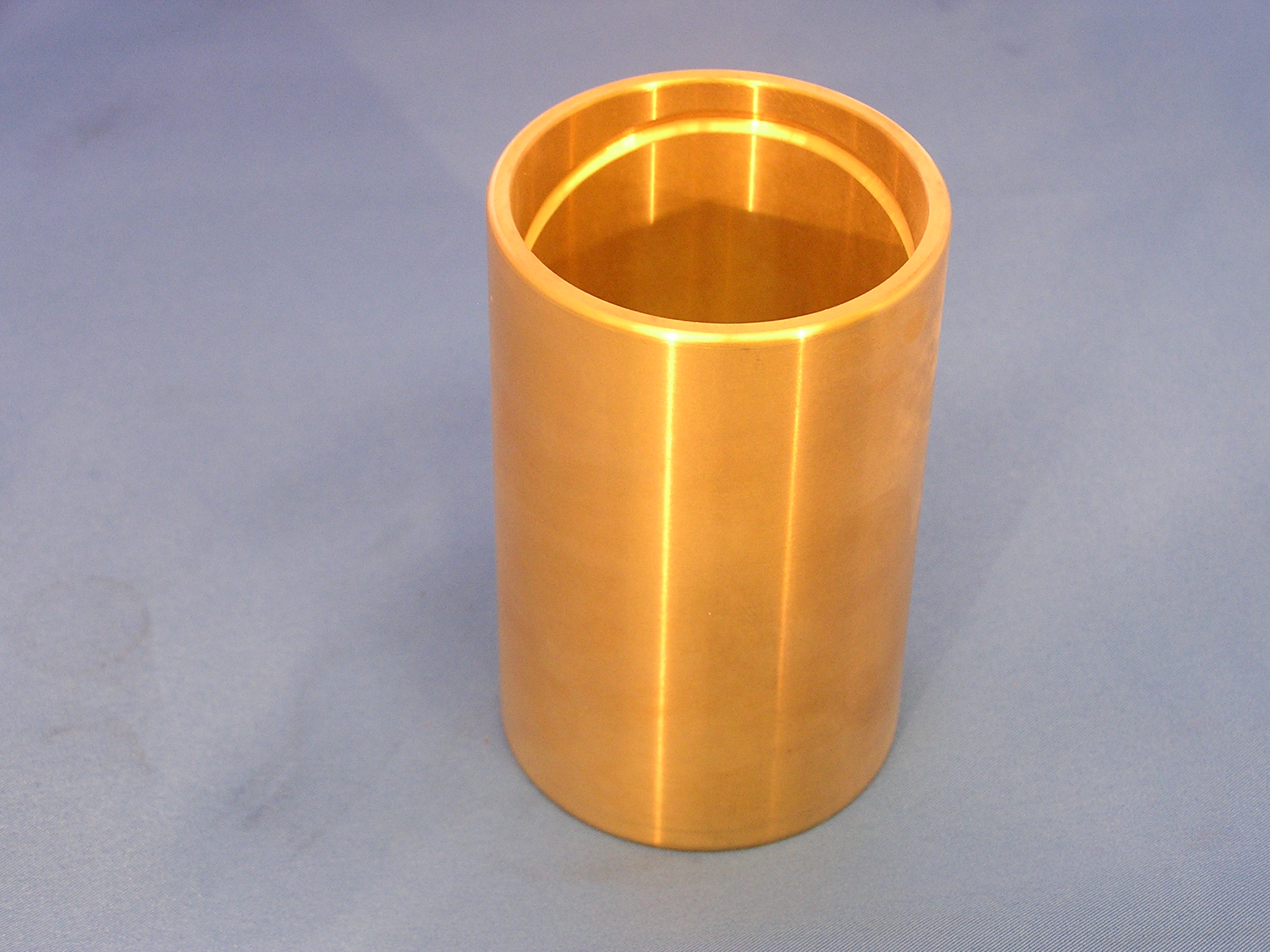

	G-7238	Bushing, Bell Crank	6A, 7, 7A

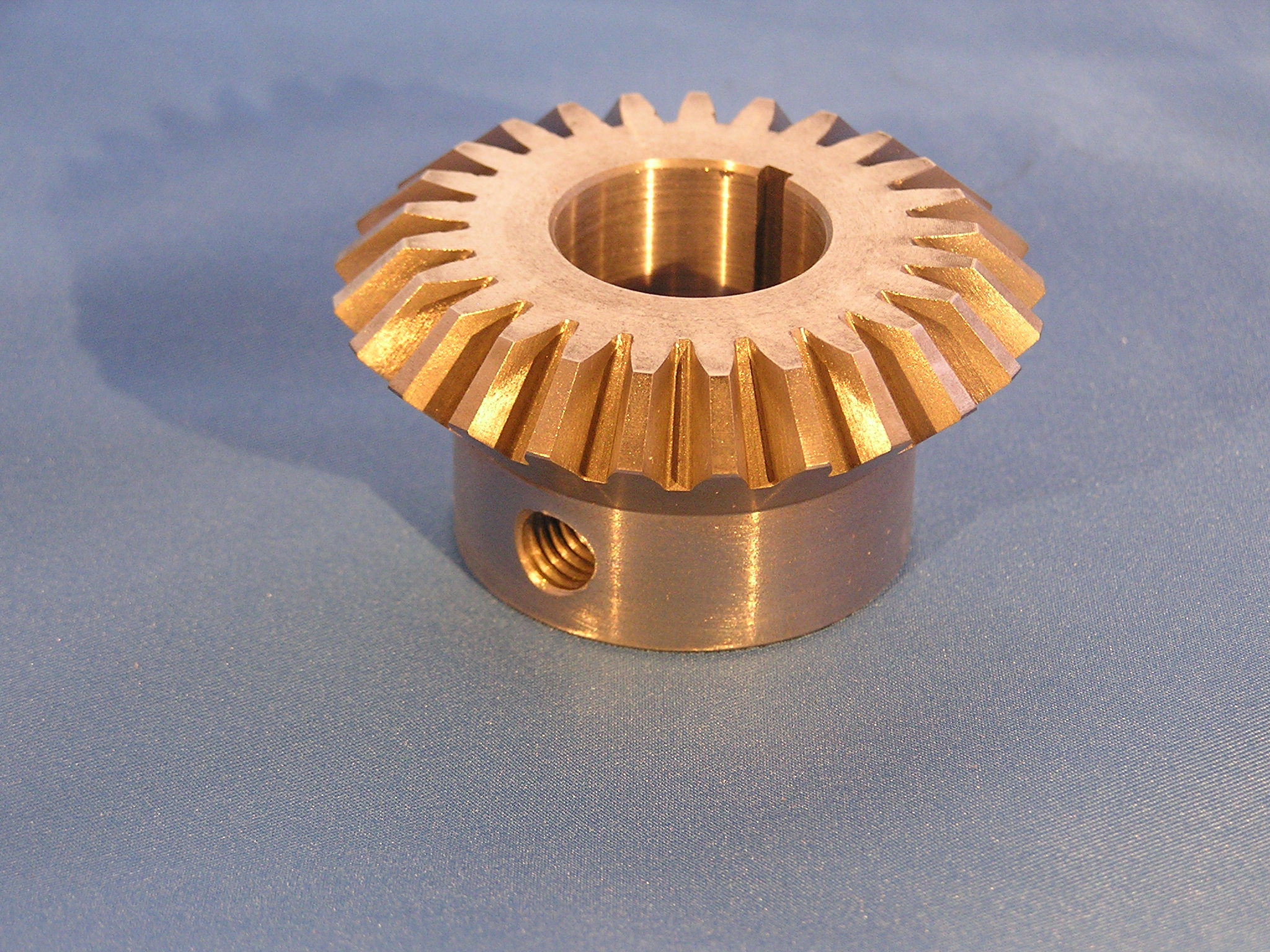

	G-7258	Gear, 25-Tooth Miter 1" ID	7 & 7A
	G-7316	Gear, 35-Tooth Miter 2" ID	7 & 7A

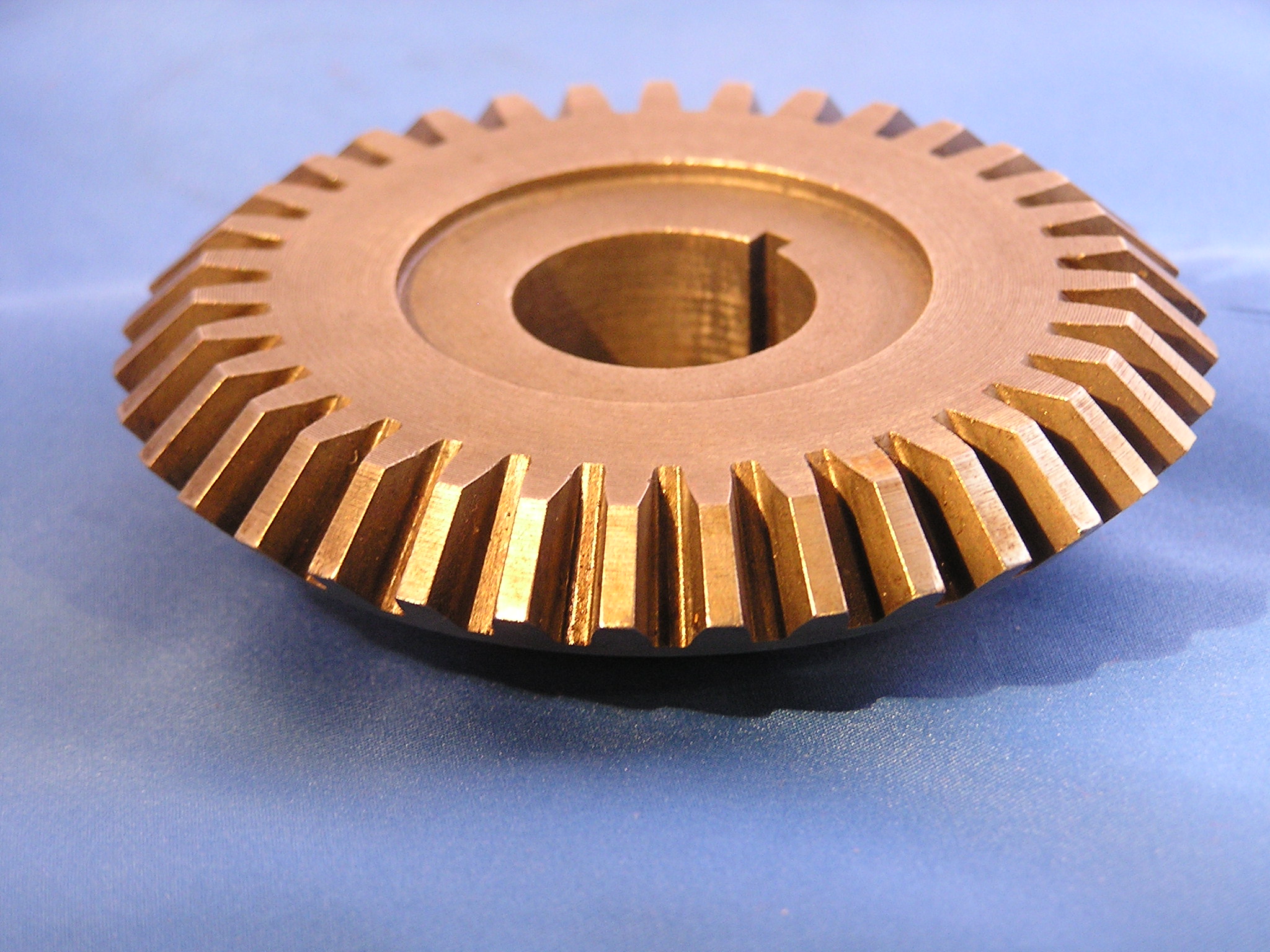

	G-7317	Gear, 35-Tooth Miter 1" ID	7 & 7A
	G-7330	Arm, Quadrant, used	7 & 7A
	G-7350	Pump, Coolant	7 & 6A

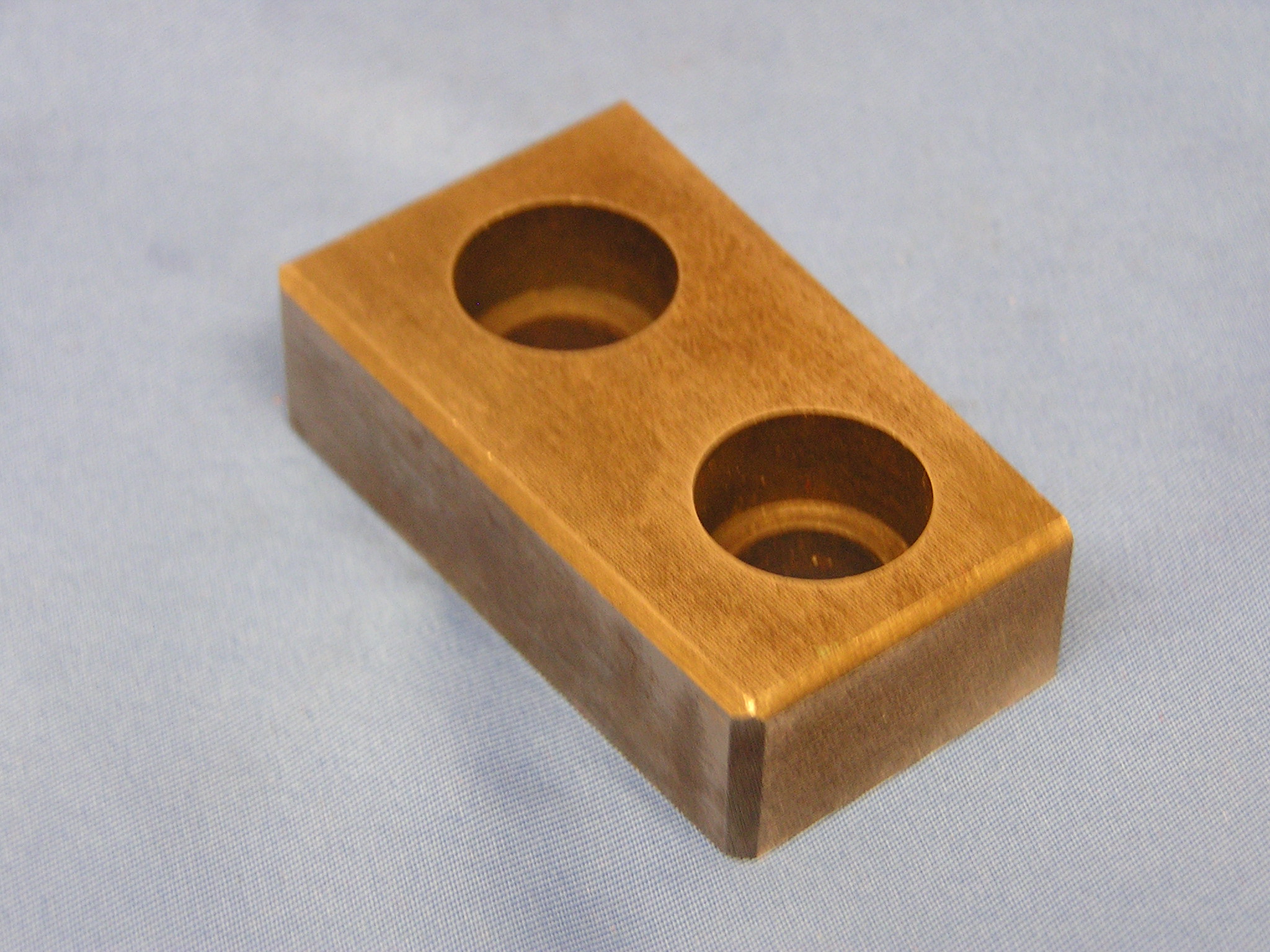

	G-7379	Block, Bronze Quill 3-1/2°	7 & 7A

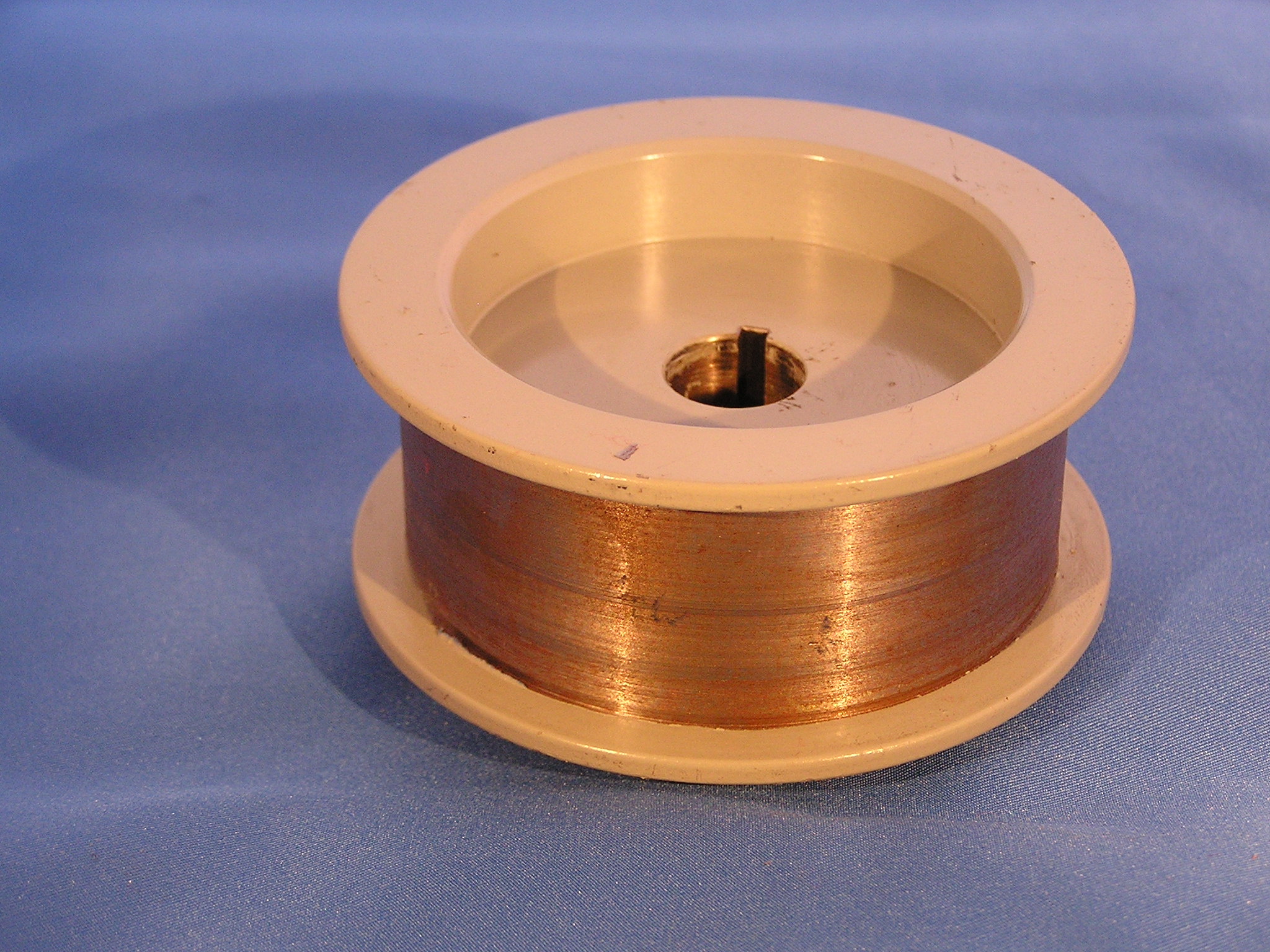

	G-7413	Pulley, Coolant Pump Drive	7 & 7A
	G-7419	Slide, Crank Arm	7A
	G-7420	Clamp, Crank Arm	7A

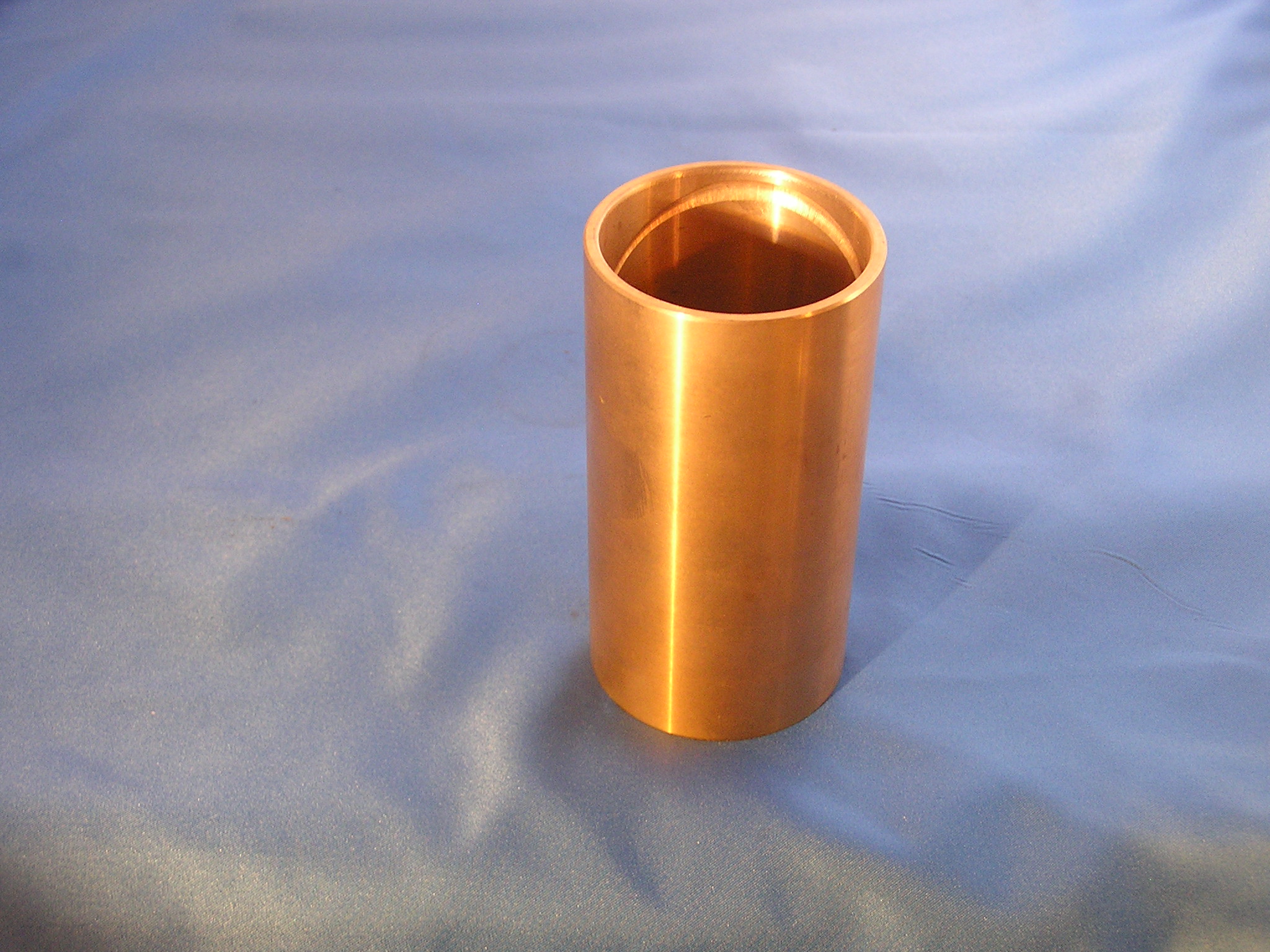

	G-7446	Bushing, Apron Pin, hone to fit	7A

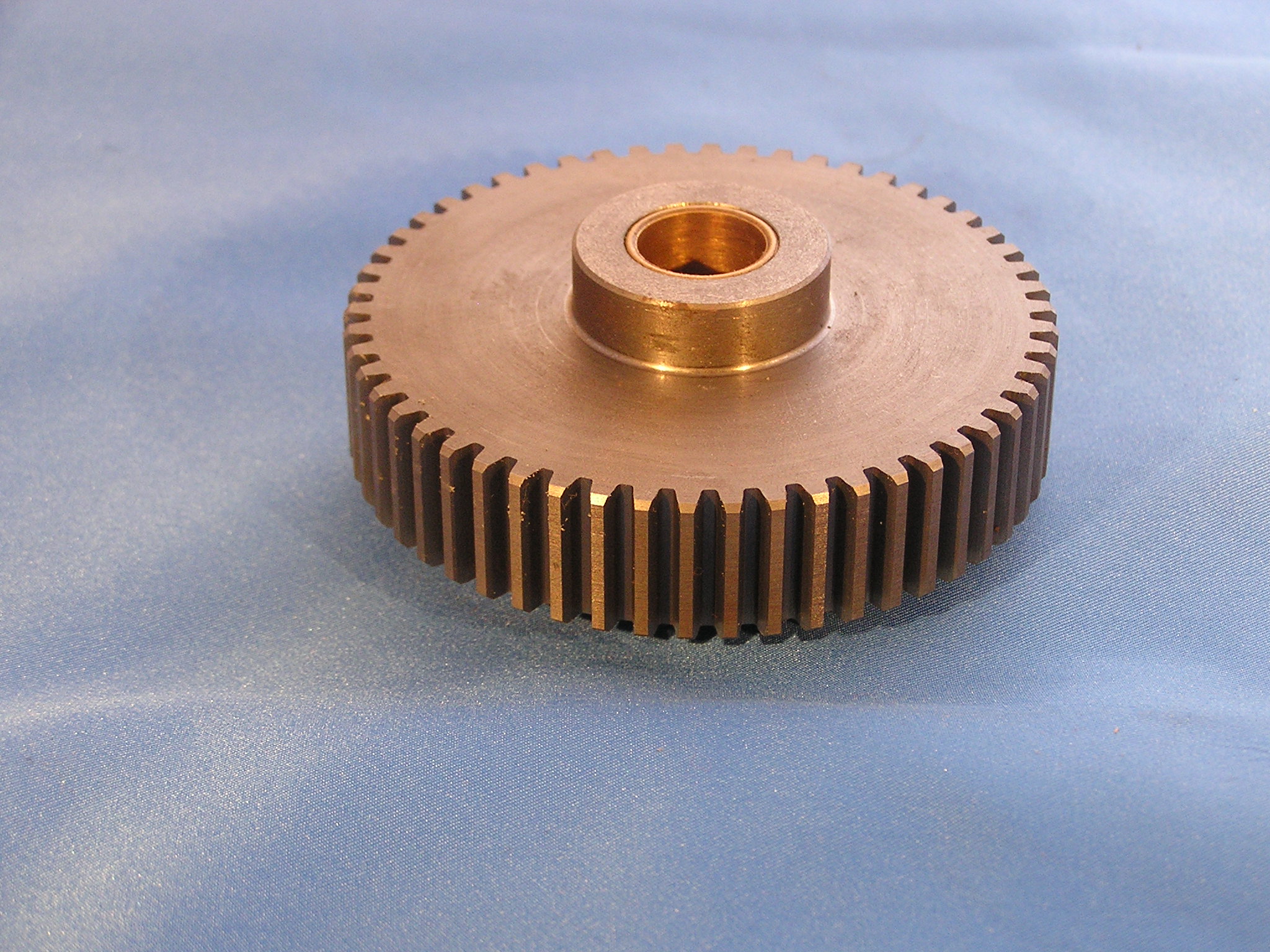

	G-7452	Gear, Intermediate Cam	7 & 7A

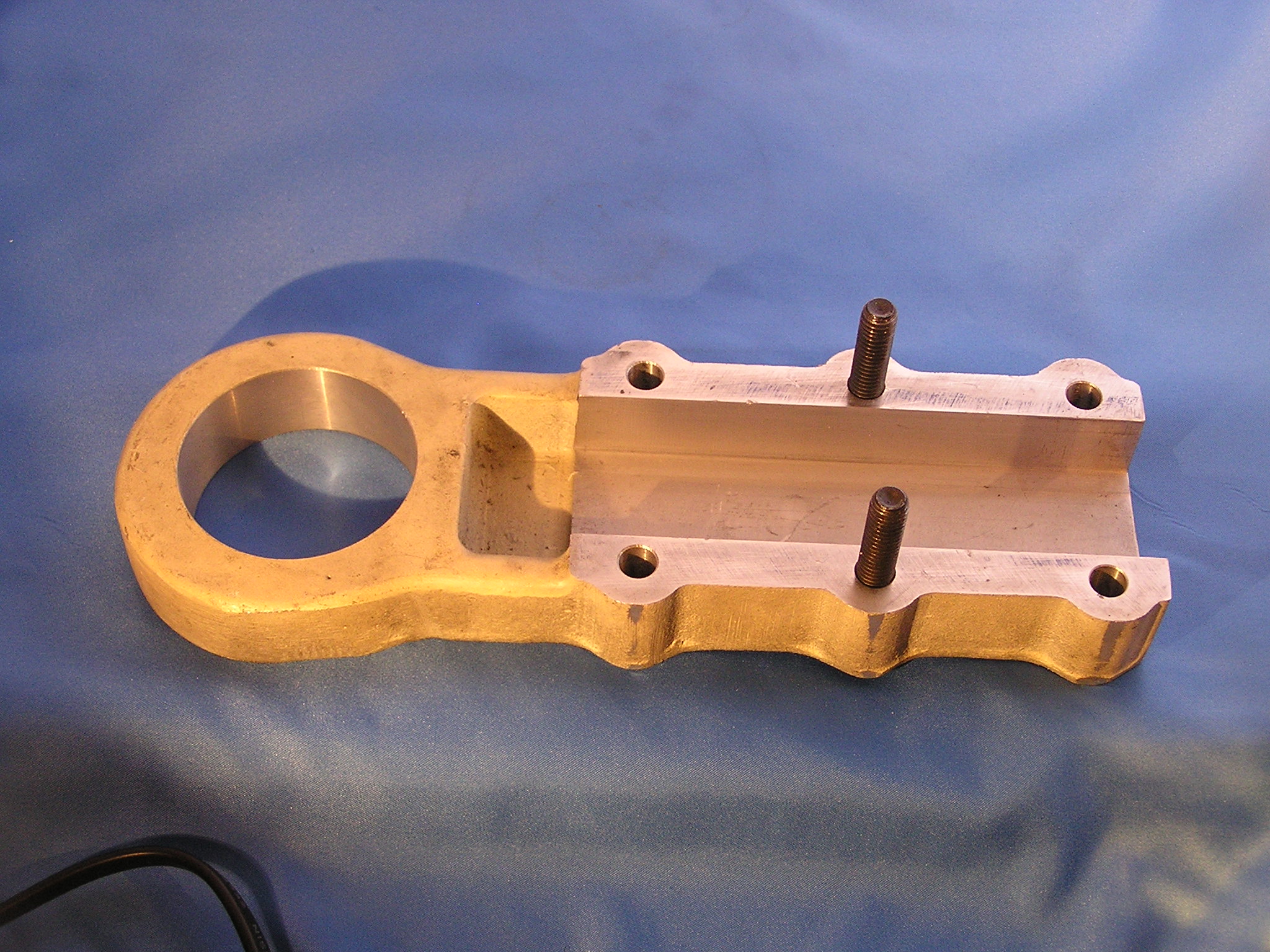

	G-7494	Arm, Crank	7A
	G-7495	Arm, Operating includes bushing	7A

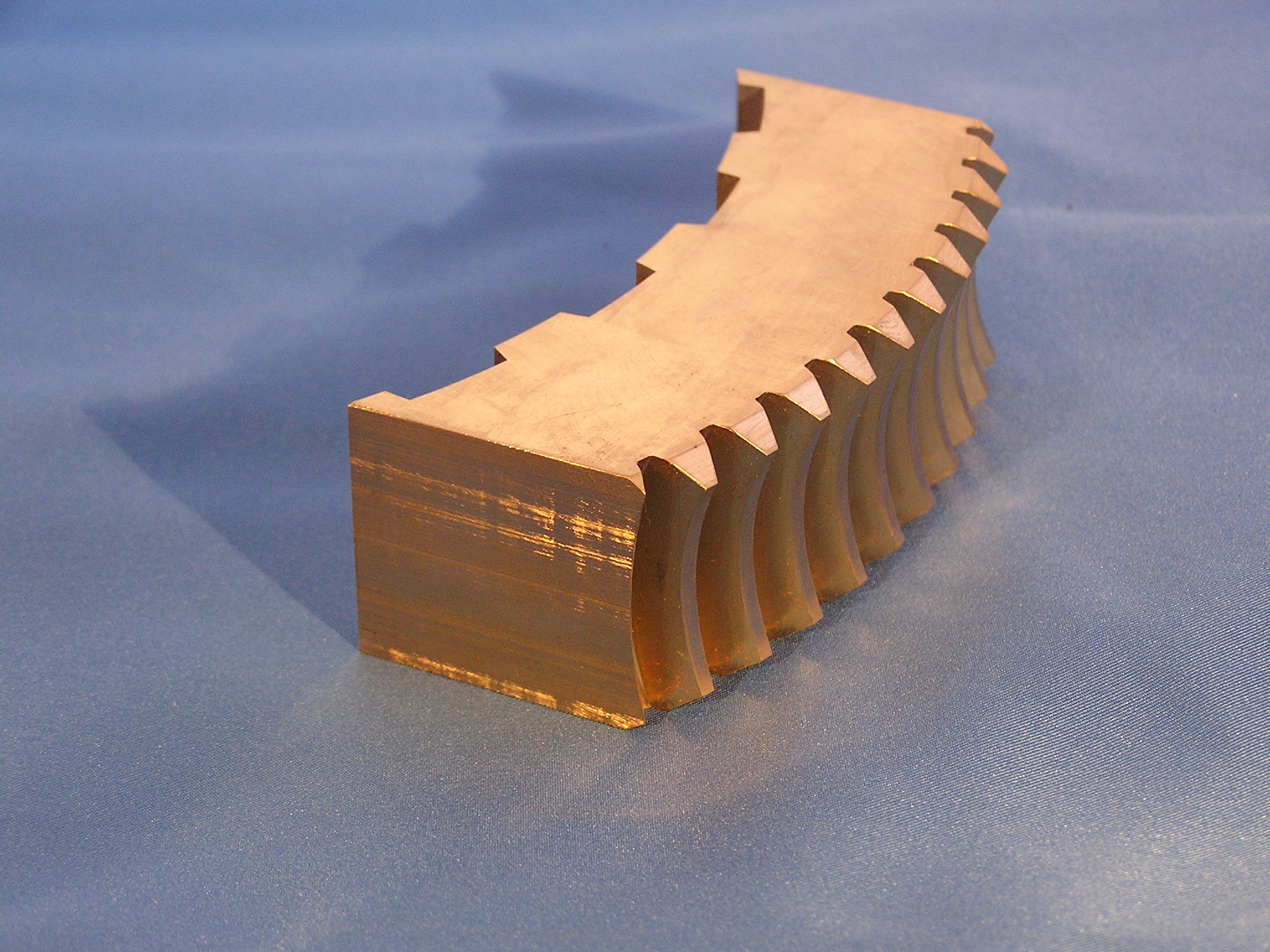

	G-7513	Gear, Operating Arm Sector	7A

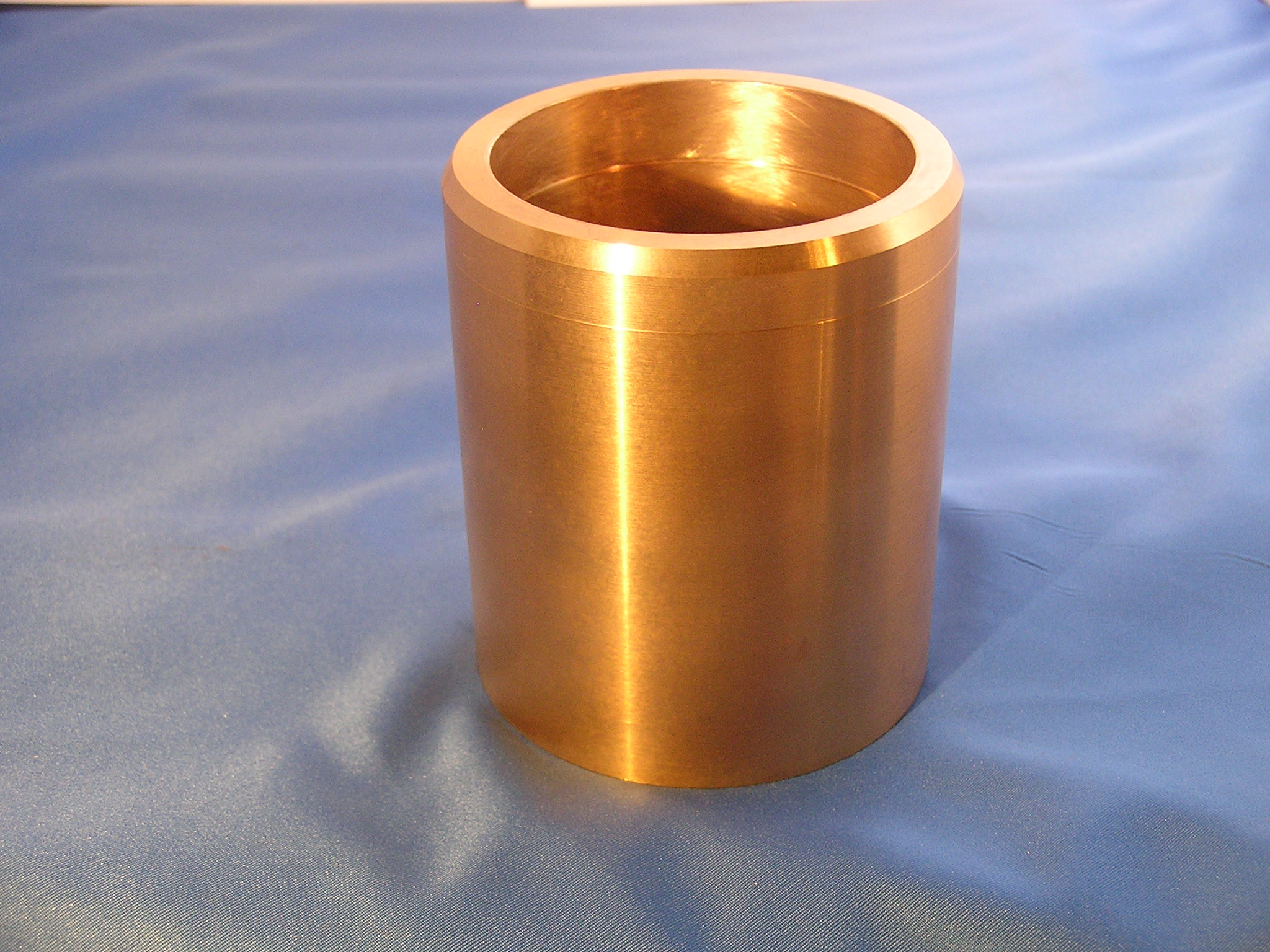

	G-7514	Bushing, 2-3/4" dia Cutter Spindle, hone to fit	7A

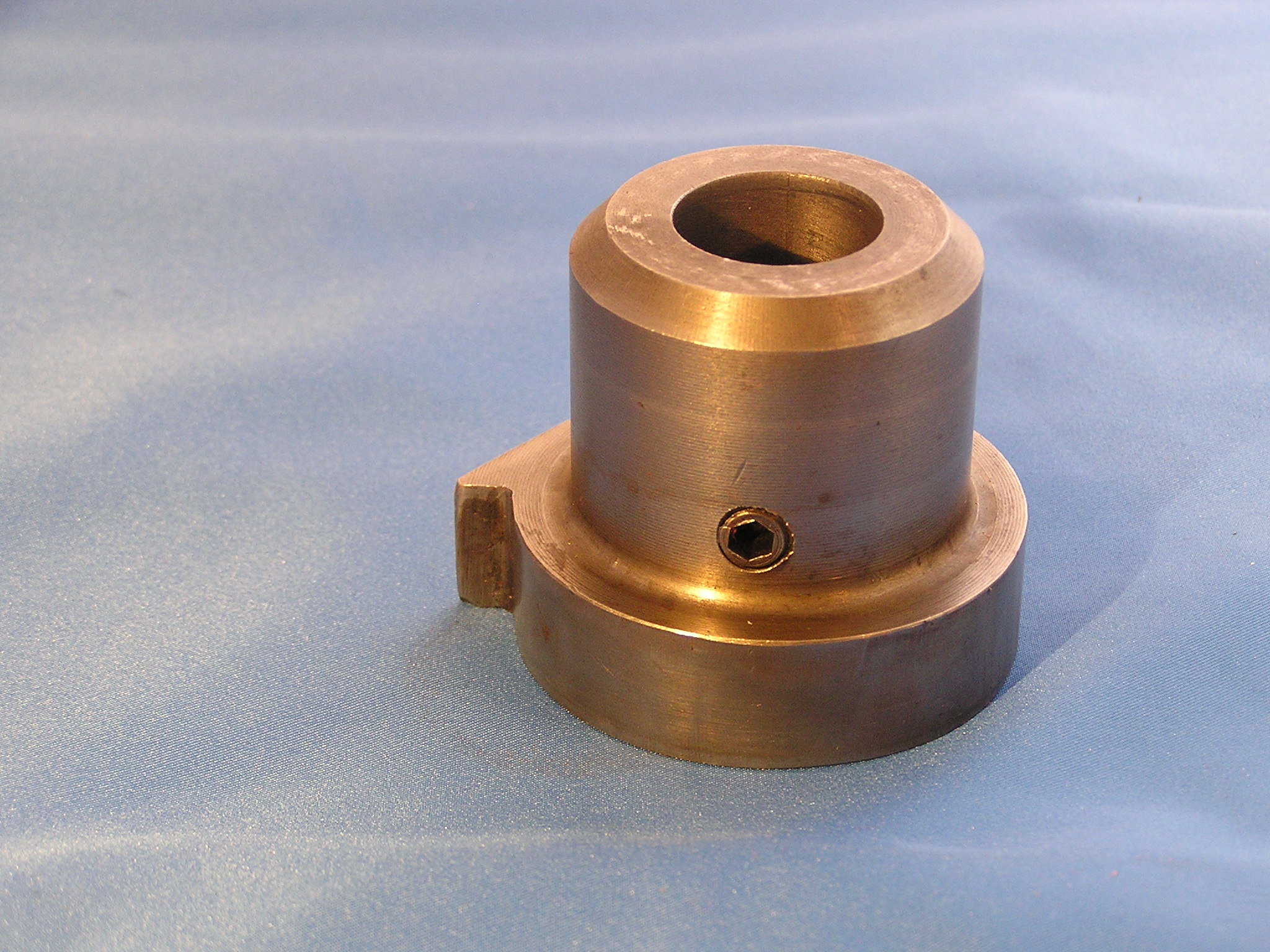

	G-7612	Cam, Single Lobe Switch	7 & 7A
	GS-510	Spacer, Upper Worm Box, grind to fit	36
	GS-527	Washer, Thrust, grind to fit	36

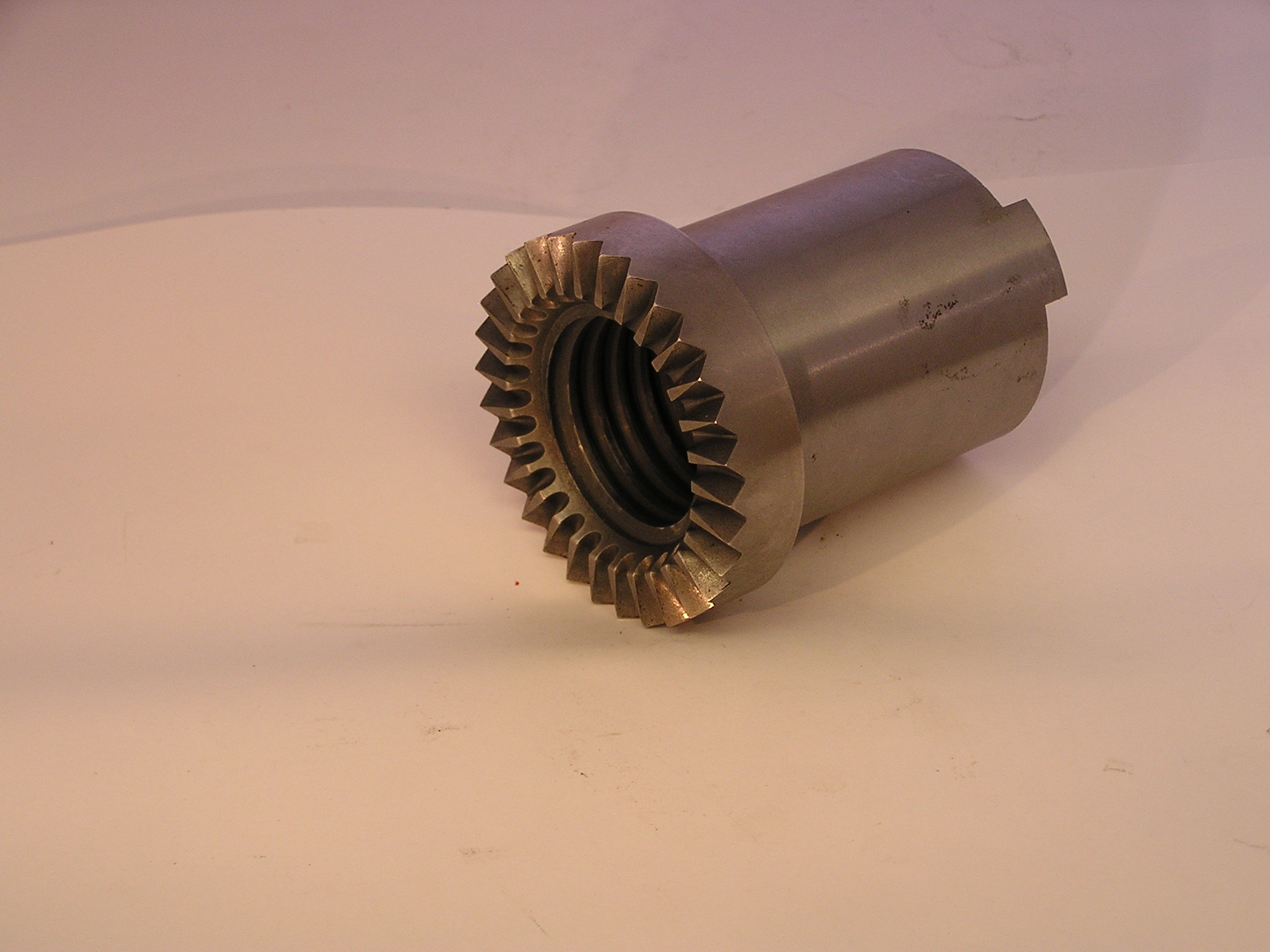

	GS-531	Half Nut, With Gear	36

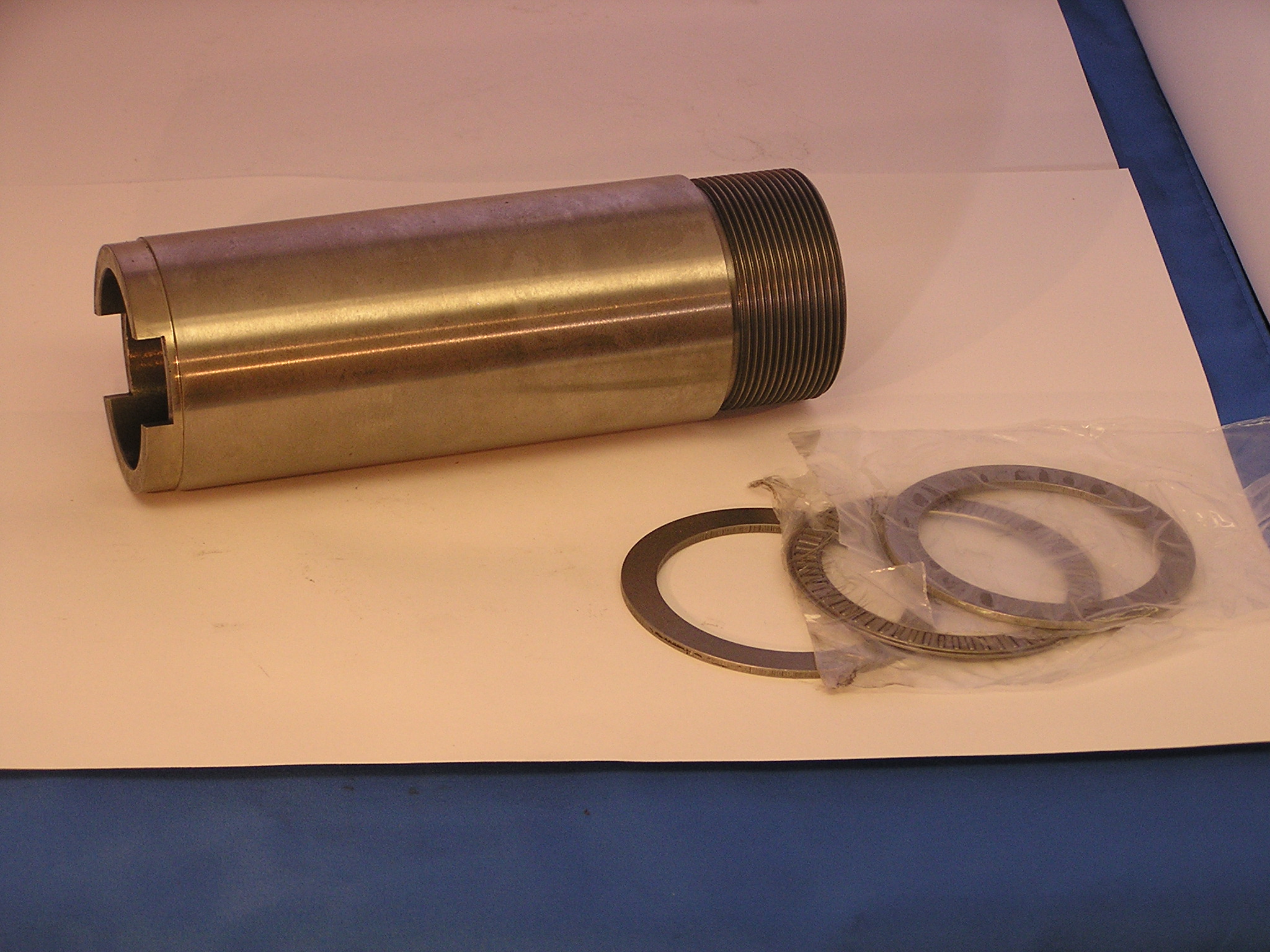

	GS-532	Half Nut, With Thrust Bearing	36
	GS-533	Sleeve, Flanged	36
	GS-560	Bushing, Rock Shaft	36
	GS-566	Gear, Rachet	36
	GS-584	Gear, 25-Tooth Worm	36
	GS-593	Bushing, Rock Shaft Support	36
	GS-612	Spacer, Apron Lock Housing, grind to fit	36
	GS-692	Pawl, Depth Feed	36
	GS-788	Lever, Rapid Rotation	36
	GS-789	Lever, Locking	36
	GS-877	Lever, Apron Locking	36
	GS-952	Bushing, 5" dia Cutter Spindle, hone to fit	36-8
	GS-953	Bushing, 4" dia Cutter Spindle, hone to fit	36
	GS-5020	Nut, Size Adjustment	4GS
	GS-5023	Bushing, 3-3/8" dia Cutter Spindle, hone to fit	4GS
	GS-5105	Gear, Hand Rotation	4GS
	L-14-08	Screw, Gib	6A
	P-318	Pin, Ratchet Detent	6A & 36
